Cargo Partition Track Replacement (All Terrain)

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

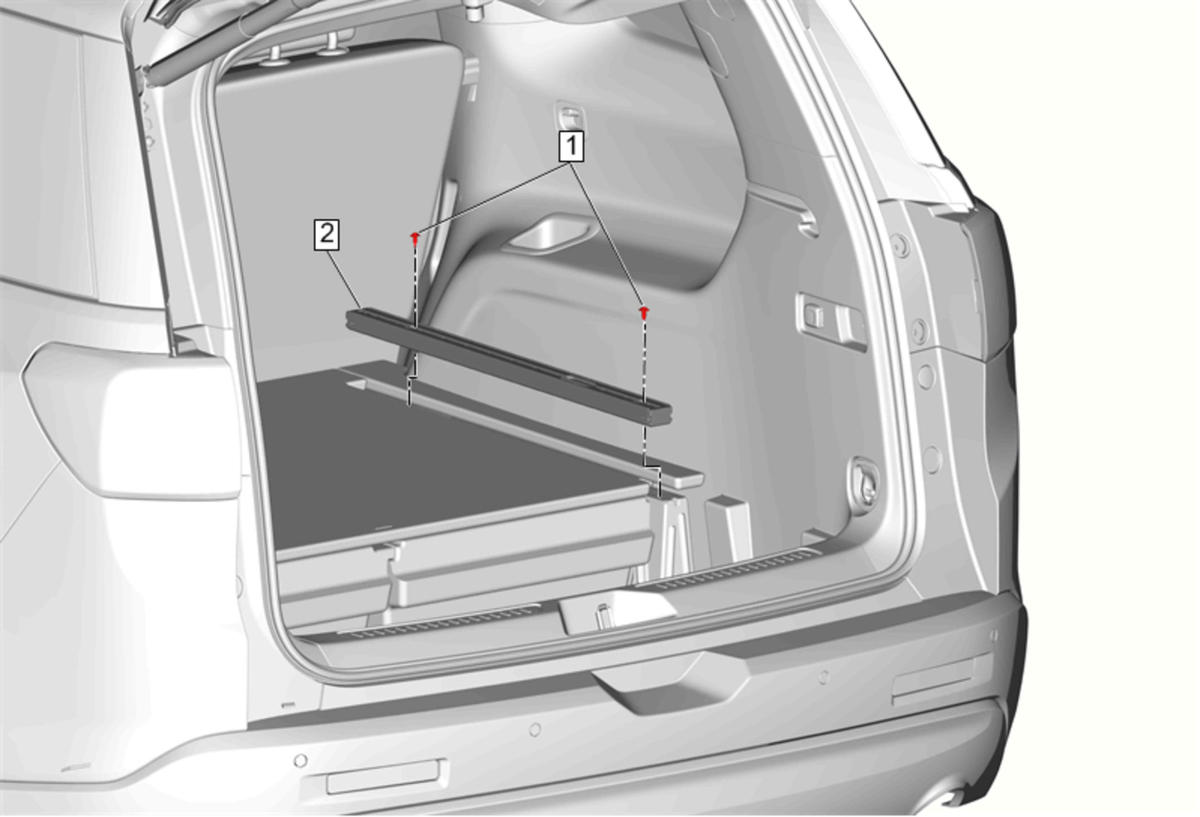

Fig 1: Cargo Partition Track (All Terrain)
GM4362735Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Cargo Partition Track Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Cargo Partition Track
