Installation Procedure

WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

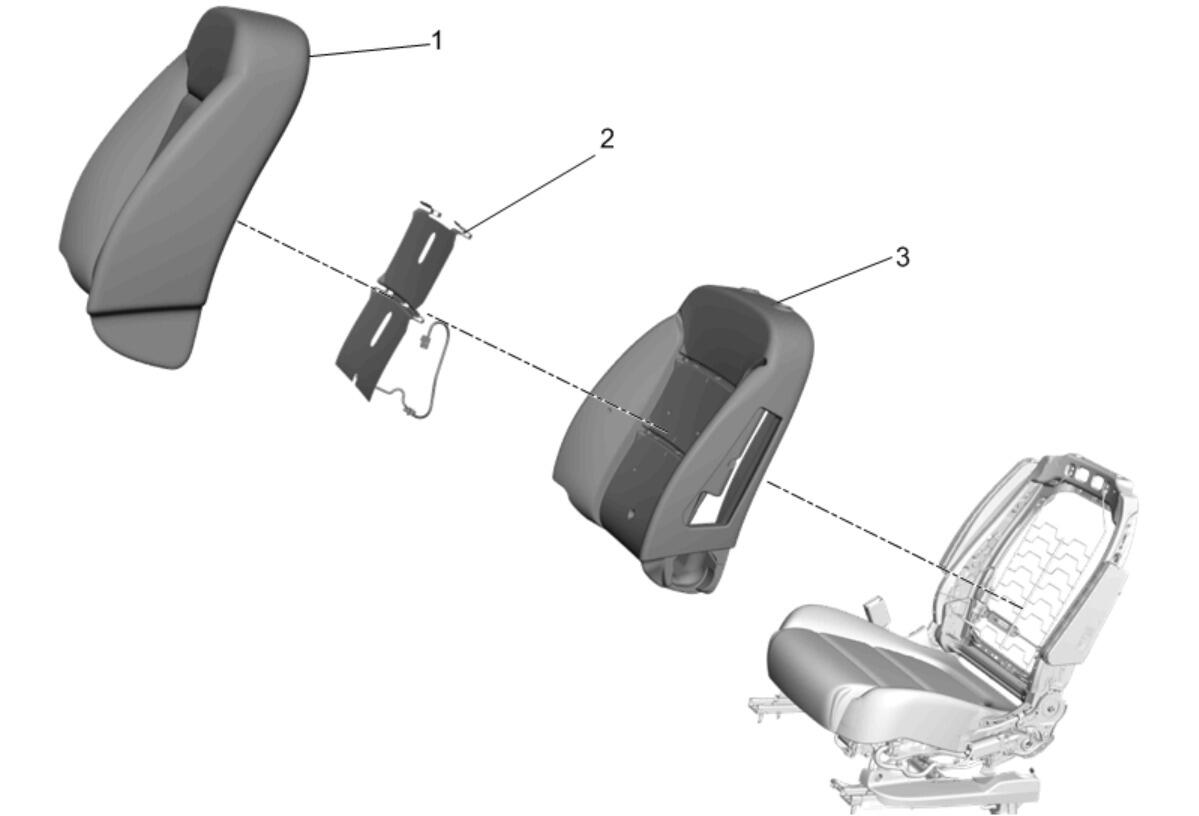

    Fig 1: Front Seat Back Cushion Cover, Heater and Pad
    GM4353292Courtesy of GENERAL MOTORS COMPANY
  1. Install Driver or Passenger Seat Back Cushion Pad (3)
  2. Install Driver or Passenger Seat Back Cushion Heater (2). Refer to Driver or Passenger Seat Back Heater Replacement
  3. Install Driver or Passenger Seat Back Cushion Cover (1)

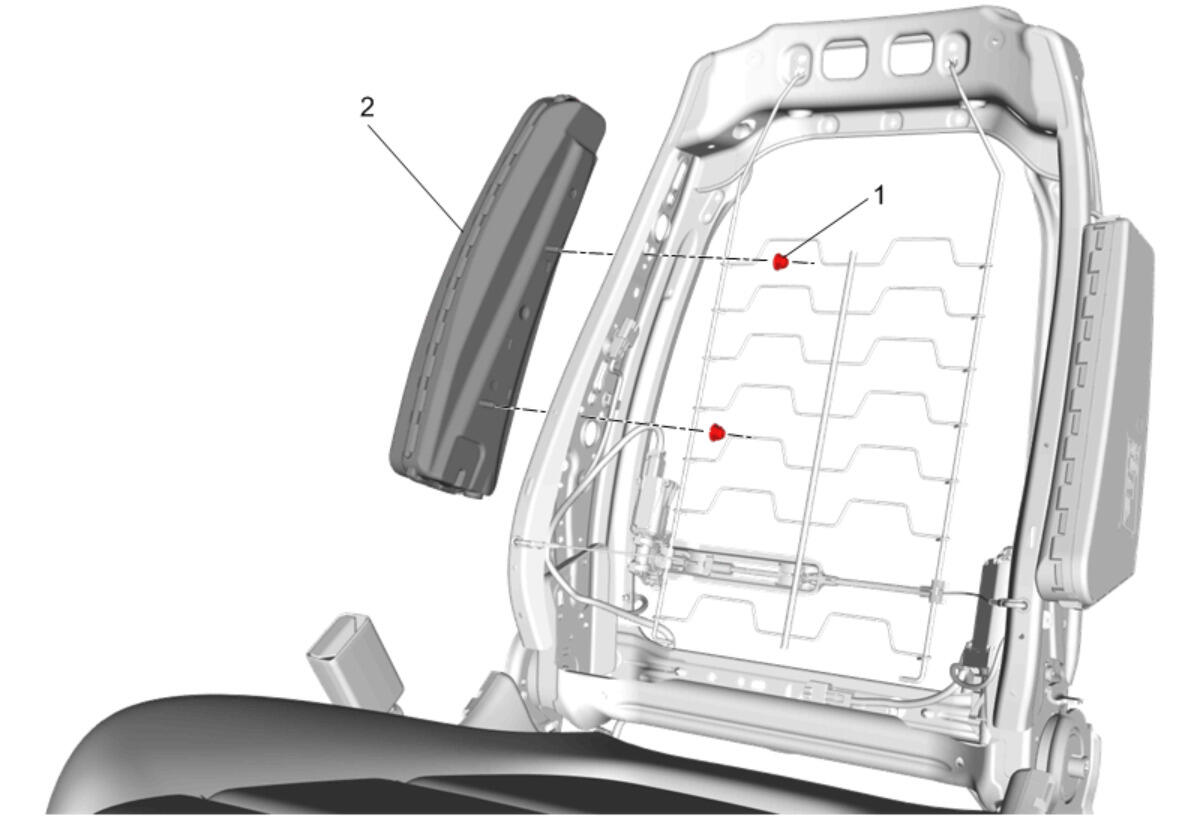

    4. Fig 2: Front Seat Inboard Seat Back Airbag and Nuts
    GM4353298Courtesy of GENERAL MOTORS COMPANY
  4. Install Front Seat Inboard Seat Back Airbag Nuts (1). Refer to Front Seat Inboard Seat Back Airbag Replacement

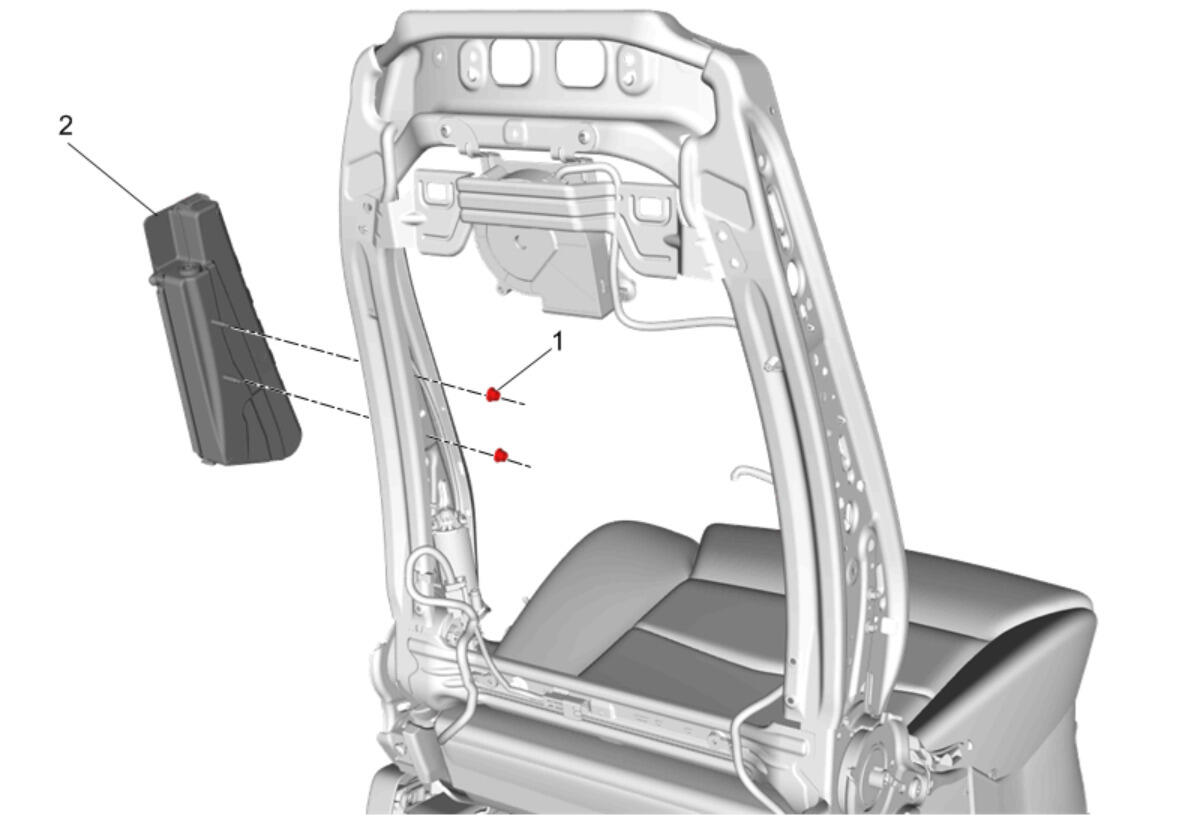

    5. Fig 3: Front Seat Outboard Seat Back Airbag and Nuts
    GM4298994Courtesy of GENERAL MOTORS COMPANY
  5. Install Front Seat Outboard Seat Back Airbag Nuts (1). Refer to Front Seat Outboard Seat Back Airbag Replacement
  6. Connect the J-channel retainers to the seat back cushion frame.
    7. NOTE:

    Hold both sides of the trim together while pulling straight down on the zipper.

  7. Close the left and right seat back cover zippers
  8. Connect the seat back cover lower J-channel retainer.
    9. Fig 4: Driver or Passenger Seat Head Restraint
    GM4090767Courtesy of GENERAL MOTORS COMPANY
  9. Install Driver or Passenger Seat Head Restraint (3). Refer to Driver or Passenger Seat Head Restraint Replacement

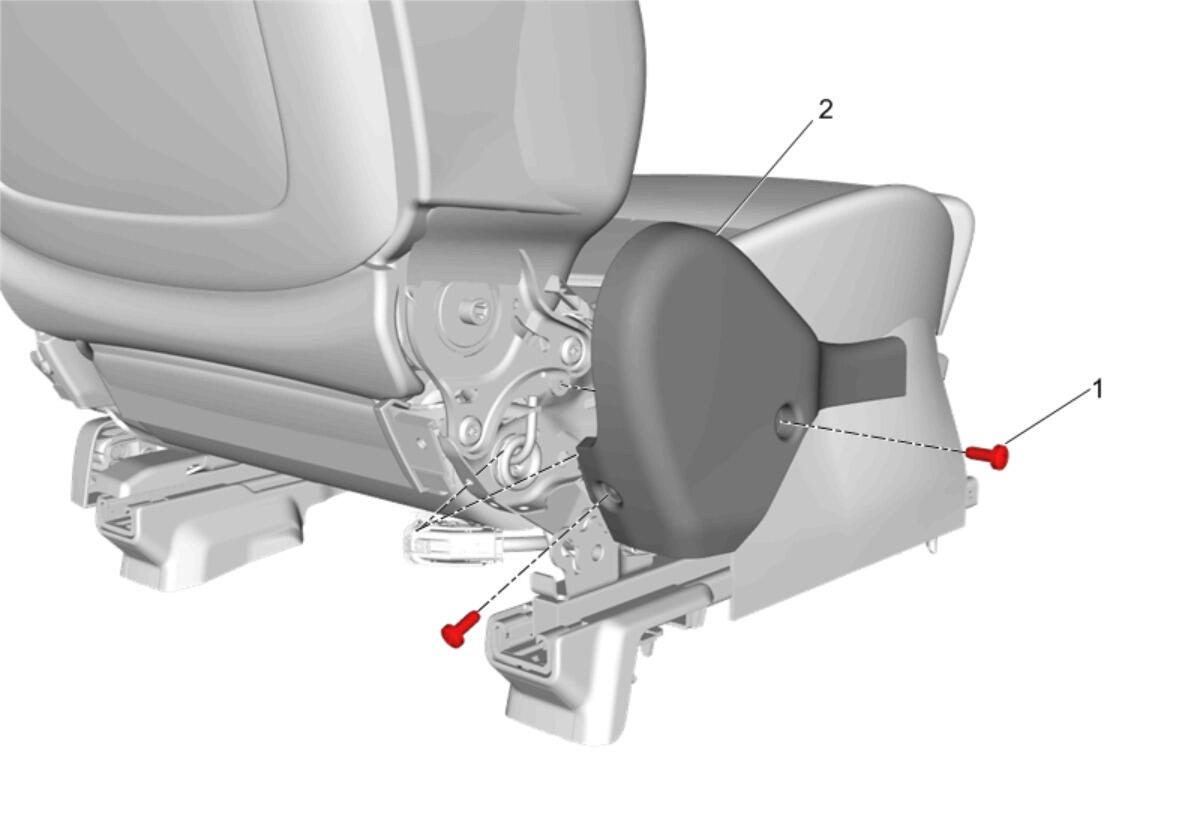

    10. Fig 5: Driver Seat Inner Recliner Finish Cover
    GM4286422Courtesy of GENERAL MOTORS COMPANY
  10. Install Driver or Passenger Seat Inner Recliner Finish Cover (2). Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement

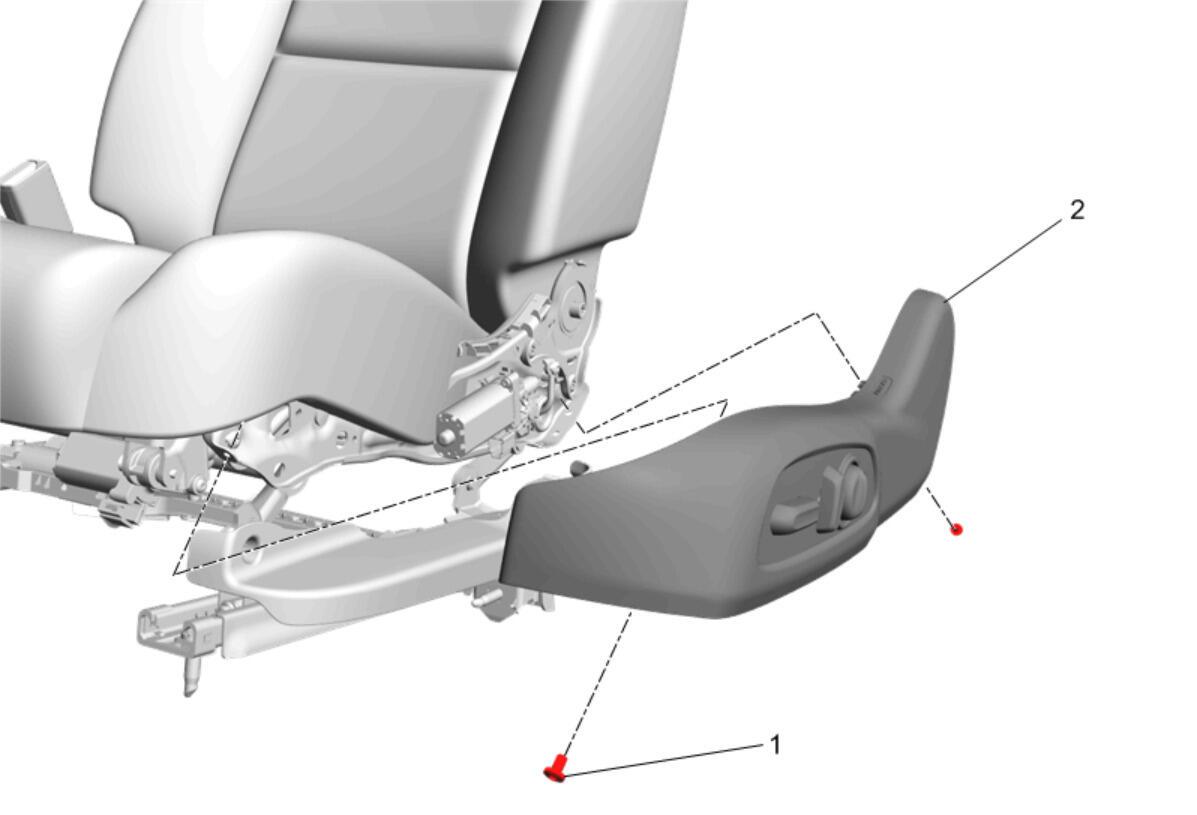

    11. Fig 6: Front Seat Cushion Outer Finish Cover
    GM4353303Courtesy of GENERAL MOTORS COMPANY
  11. Install Front Seat Cushion Outer Finish Cover (2). Refer to Front Seat Cushion Outer Finish Cover Replacement (Manual) Front Seat Cushion Outer Finish Cover Replacement (Power)
    12. Fig 7: Driver Seat
    GM4282881Courtesy of GENERAL MOTORS COMPANY
  12. Install Driver or Passenger Seat (3). Refer to Driver or Passenger Seat Removal and Installation
  13. Enable the SIR System. Refer to SIR Disabling and Enabling
