Front Seat Cushion Outer Finish Cover Replacement (Manual)
WARNING: This page is about a different car, the 2017 GMC Acadia. However, it is still accessible from the selected car via links, so may be relevant.

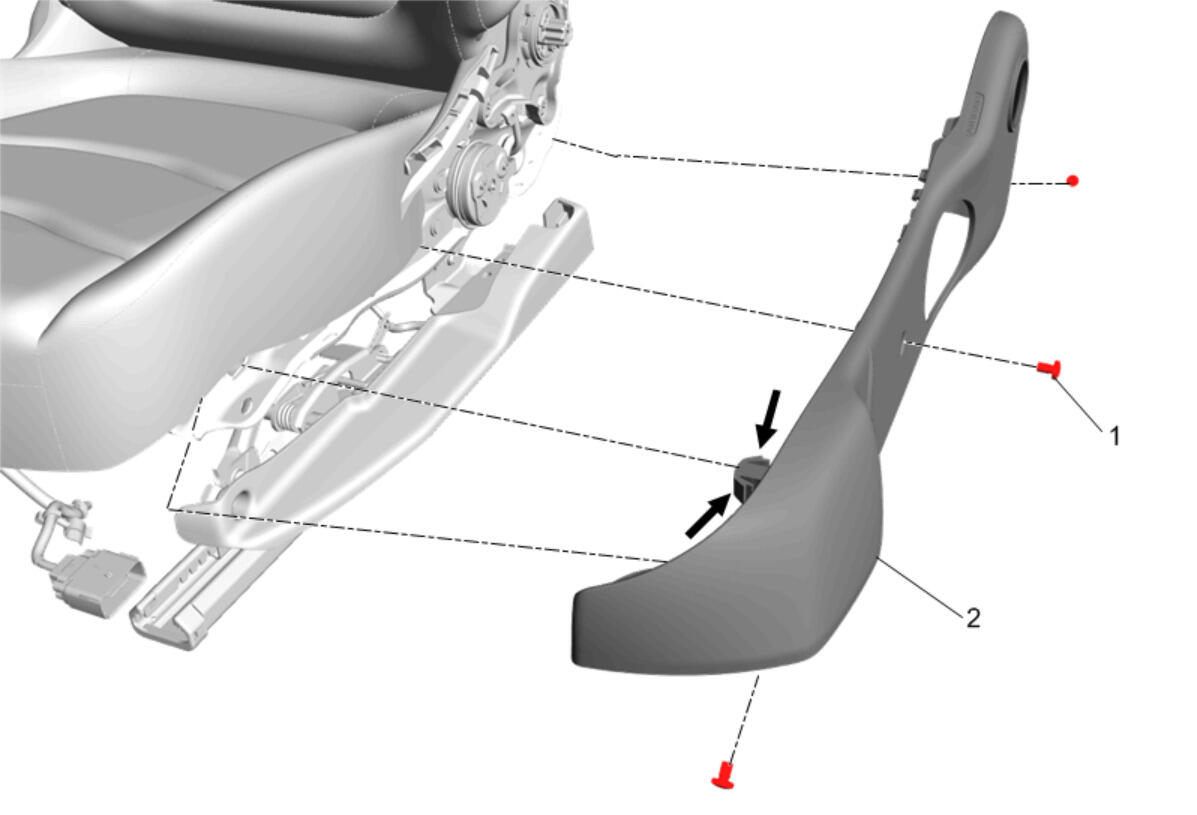

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove Driver or Passenger Seat Adjuster Vertical Actuator Handle. Refer to Driver or Passenger Seat Adjuster Vertical Actuator Handle Replacement |
|
| 1 | Front Seat Cushion Outer Finish Cover Fastener (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Seat Cushion Outer Finish Cover Procedure Squeeze retainer to release. |
