Front Upper Grille Replacement (Coupe With XFE)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

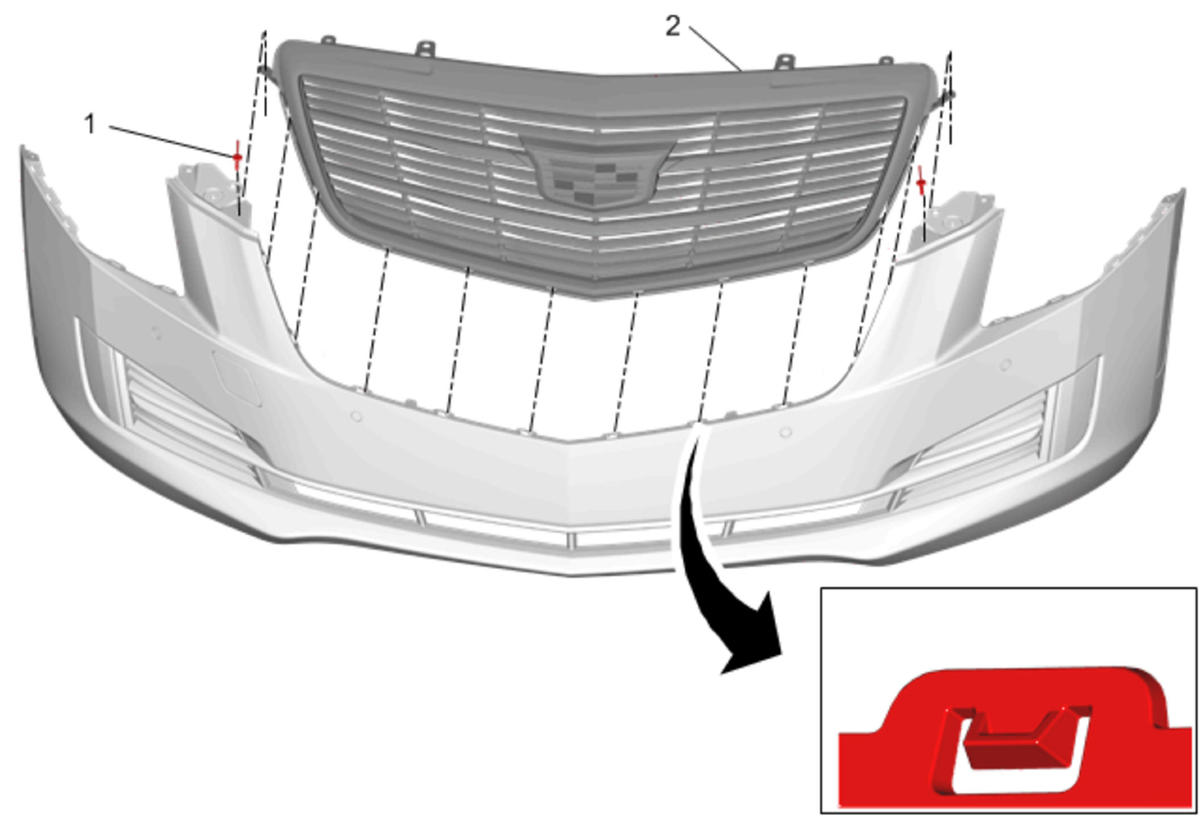

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Remove the aero shutter front bumper fascia air deflector. Refer to Aero Shutter Front Bumper Fascia Air Deflector Replacement (Sedan)Aero Shutter Front Bumper Fascia Air Deflector Replacement (Coupe)
.Refer to Eye Protection Warning . |
|
| 1 | Front Upper Grille Rivet (Qty: 2) |
| 2 | Front Upper Grille Procedure Release the 10 locking tabs with a flat bladed tool from the front upper grille and pull from the front bumper fascia. |
