Aero Shutter Front Bumper Fascia Air Deflector Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

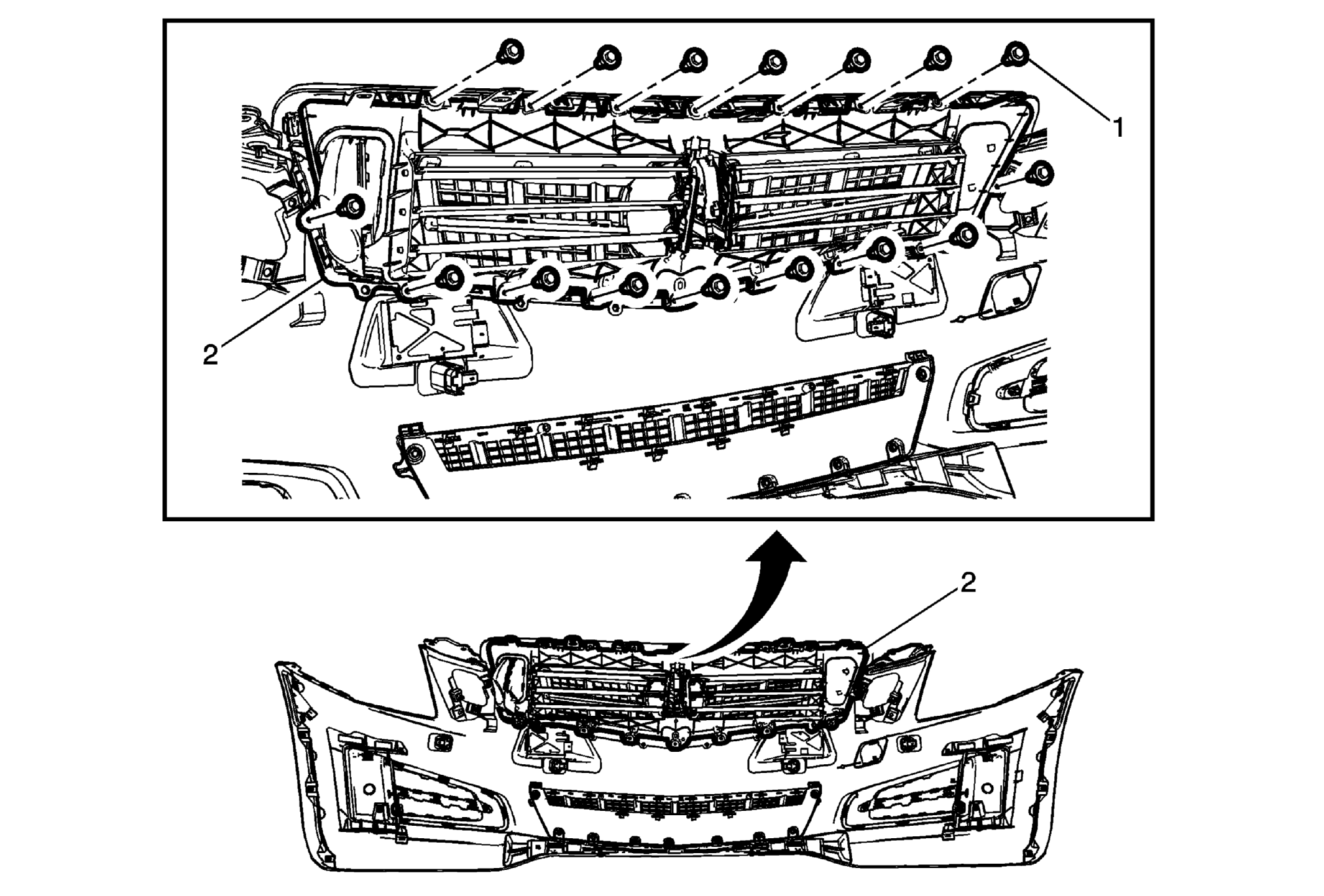

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front bumper fascia energy upper absorber. Refer to Front Bumper Fascia Energy Upper Absorber Replacement (Sedan) . |
|
| 1 | Aero Shutter Front Bumper Fascia Air Deflector Bolt (Qty: 16)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Aero Shutter Front Bumper Fascia Air Deflector |
