Front Upper Grille Replacement (ATS-V)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Radiator Air Upper Baffle and Deflector Replacement (LGX)Radiator Air Upper Baffle and Deflector Replacement (LTG)Radiator Air Upper Baffle and Deflector Replacement (LF4) |
|

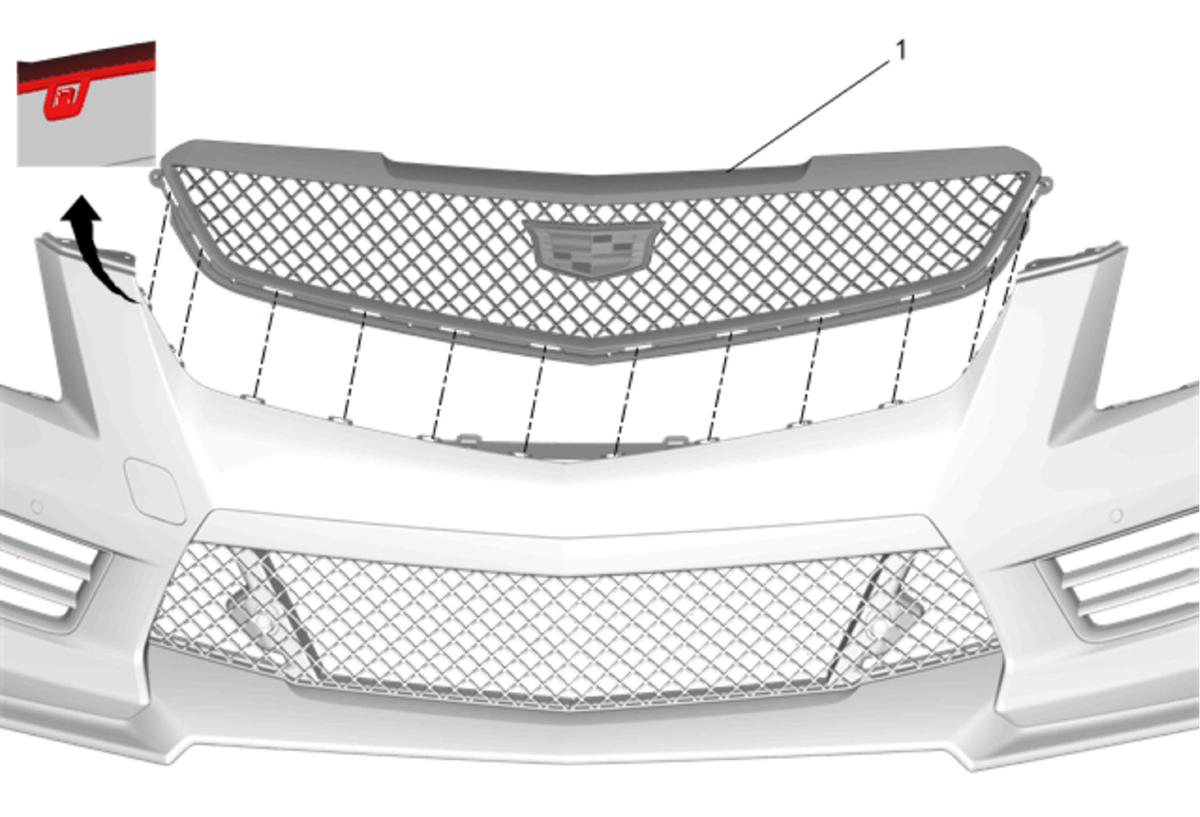

| 1 | Front Upper Grille Procedure Release the locking tabs with a flat bladed tool from the front upper grille and pull from the front bumper fascia. |
