Radiator Air Upper Baffle and Deflector Replacement (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

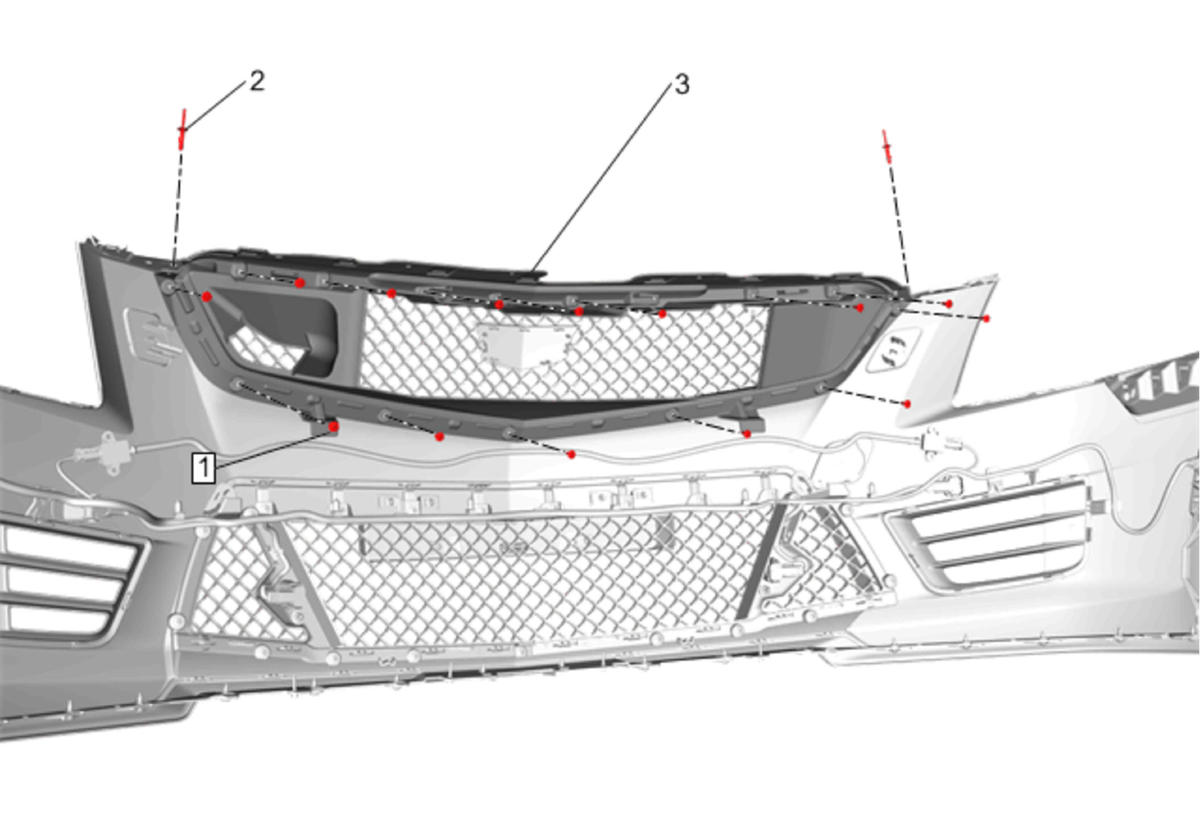

| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)Front Bumper Fascia Energy Upper Absorber Replacement (Inner and Outer Coupe V)Refer to Eye Protection Warning . |
|
| 1 | Radiator Air Upper Baffle and Deflector Bolts (Qty: 14)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radiator Air Upper Baffle and Deflector Rivet (Qty: 14) |
| 3 | Radiator Air Upper Baffle and Deflector Procedure Release the front grill retainer tabs. |
