Headlamp Washer Nozzle Bracket Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

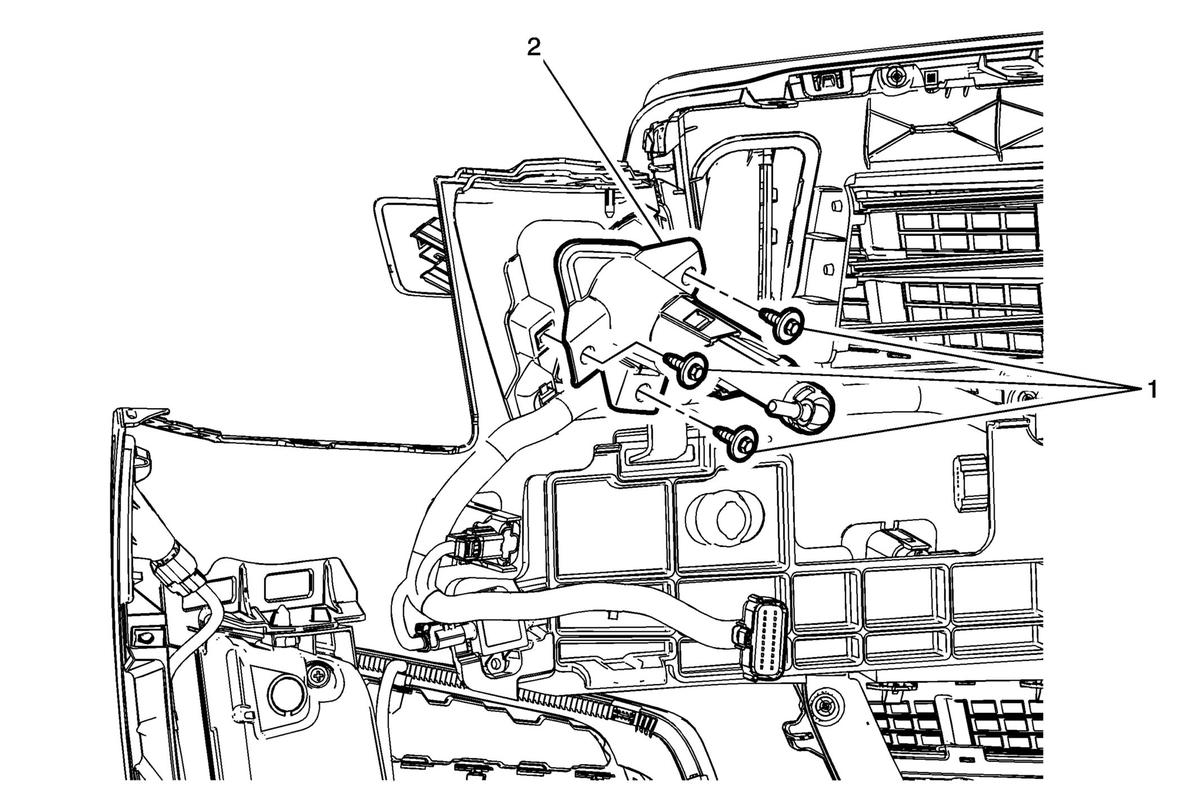

Fig 1: Headlamp Washer Nozzle Bracket & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) . Remove the headlamp washer nozzle hole cover. Refer to Headlamp Washer Nozzle Hole Cover Replacement . Disconnect the headlamp washer pump hose connection from the headlamp washer nozzle spout.
1	Headlamp Washer Nozzle Bracket Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Headlamp Washer Nozzle Bracket Procedure Remove the headlamp washer nozzle from the washer nozzle bracket. Refer to Headlamp Washer Nozzle Replacement .

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
Remove the headlamp washer nozzle hole cover. Refer to Headlamp Washer Nozzle Hole Cover Replacement .
Disconnect the headlamp washer pump hose connection from the headlamp washer nozzle spout.

Headlamp Washer Nozzle Bracket Screw (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Headlamp Washer Nozzle Bracket
Procedure
Remove the headlamp washer nozzle from the washer nozzle bracket. Refer to Headlamp Washer Nozzle Replacement .
