Headlamp Washer Nozzle Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

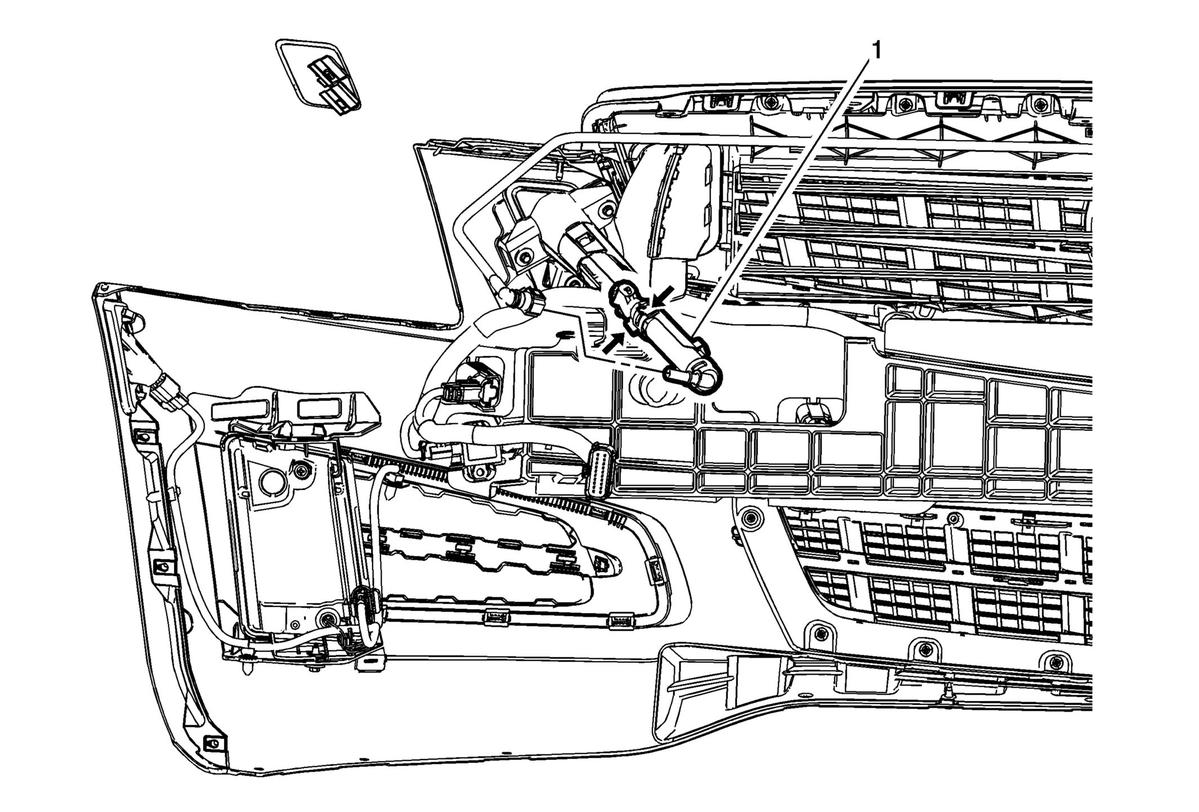

Fig 1: Headlamp Washer Nozzle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .
1	Headlamp Washer Nozzle Procedure Disconnect the headlamp washer nozzle hose. Depress the 2 tabs (arrows) in order to release the nozzle from the bracket. Pull the headlamp washer nozzle rearward from the bracket, in order to release.

Callout

Component Name

Preliminary Procedure
Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement Front Bumper Fascia Replacement (V) .

Headlamp Washer Nozzle

Procedure

Disconnect the headlamp washer nozzle hose.
Depress the 2 tabs (arrows) in order to release the nozzle from the bracket.
Pull the headlamp washer nozzle rearward from the bracket, in order to release.
