Rear Side Door Window Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

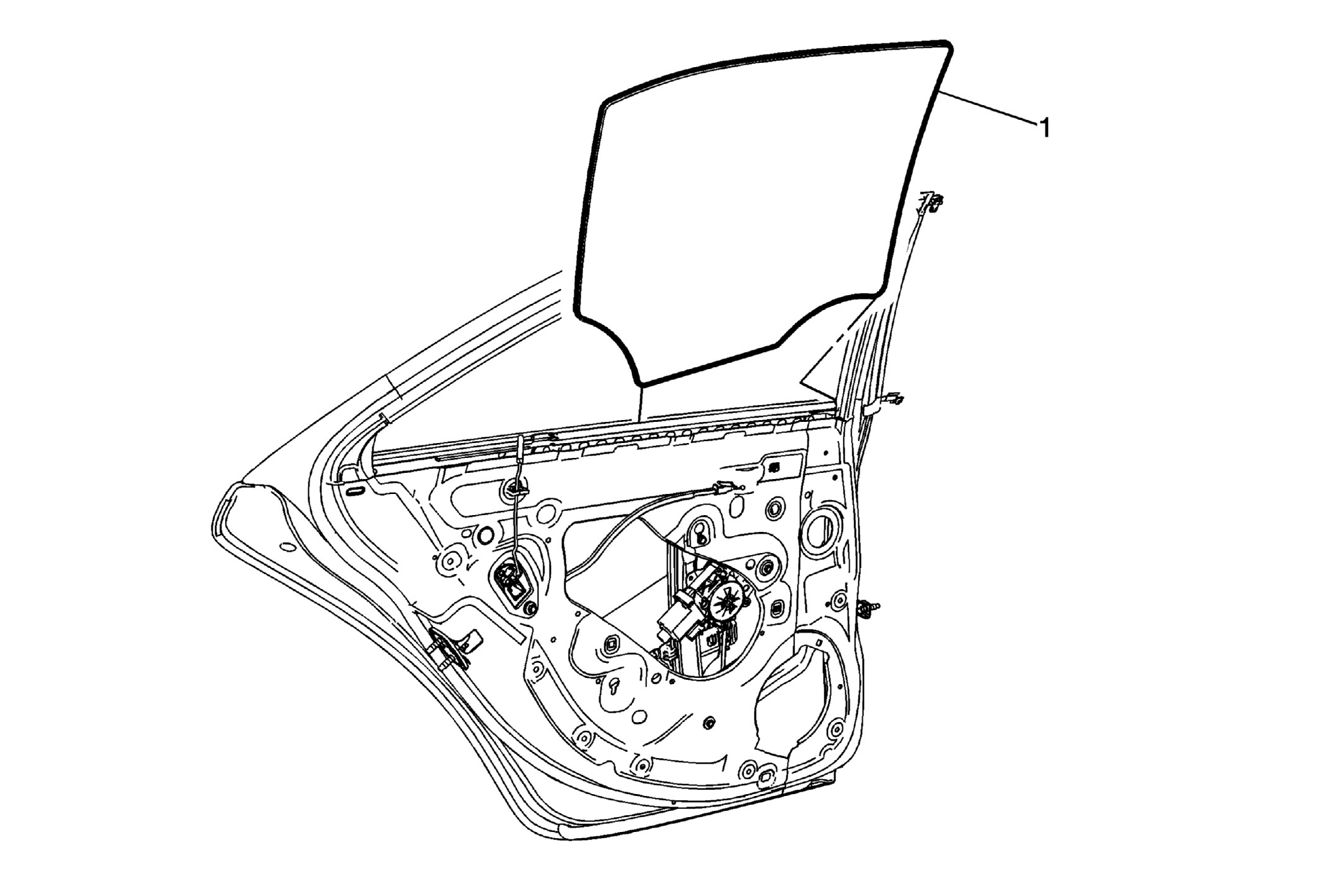

Fig 1: Rear Side Door Window

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .
1	Rear Side Door Window Procedure Loosen the two nuts located on the regulator guide holding the window. Refer to Rear Side Door Window Regulator Replacement . Tilt the window downward in the rear and pull up on the front removing it from the door frame. NOTE: Inspect the window for proper operation before installing the trim.

Callout

Component Name

Preliminary Procedures
Remove the rear side door window weatherstrip. Refer to Rear Side Door Window Weatherstrip Replacement .

Rear Side Door Window

Procedure

Loosen the two nuts located on the regulator guide holding the window. Refer to Rear Side Door Window Regulator Replacement .
Tilt the window downward in the rear and pull up on the front removing it from the door frame.

NOTE:

Inspect the window for proper operation before installing the trim.
