Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

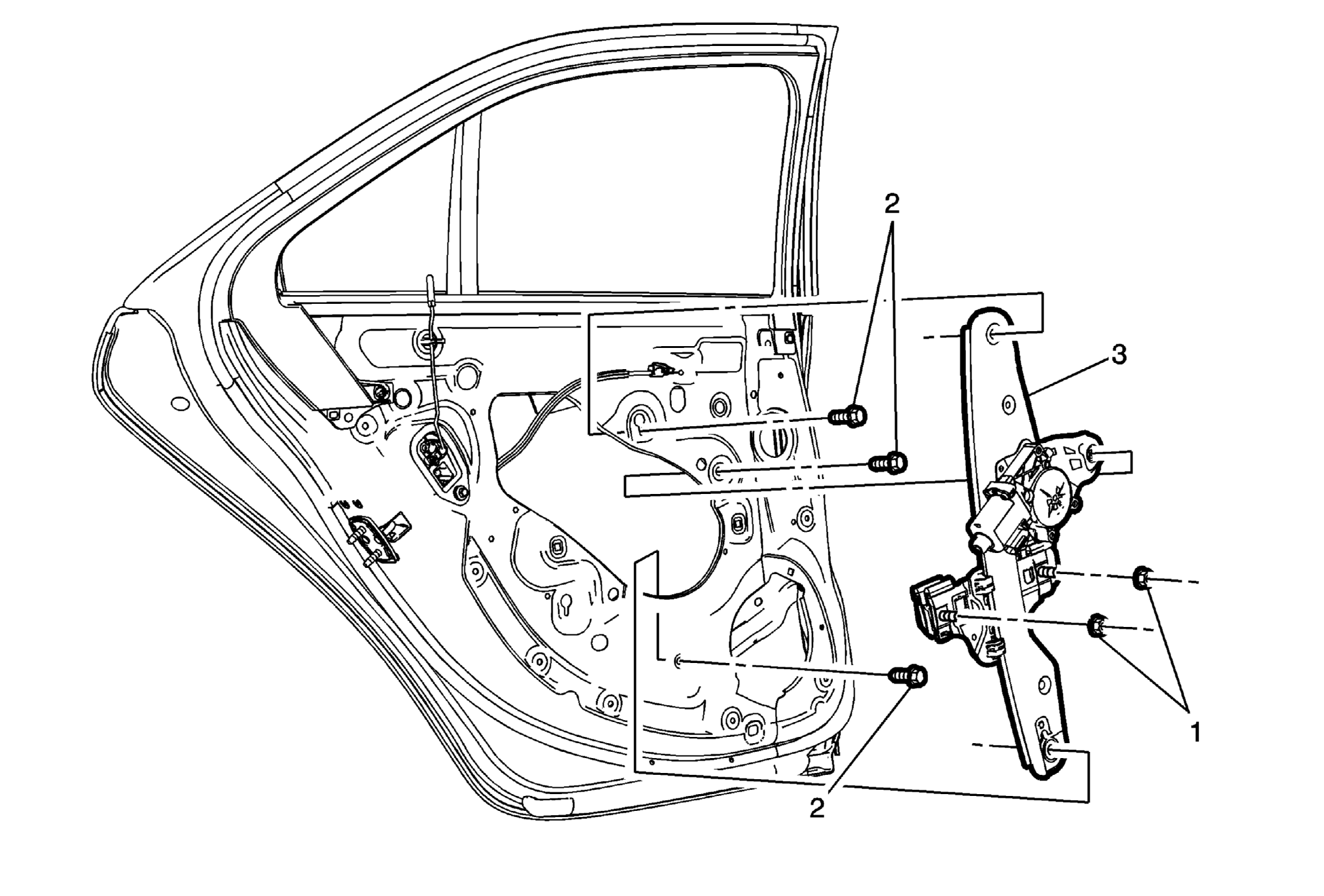

Fig 1: Rear Side Door Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Rear Side Door Window Regulator Guide Nuts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door armrest plate bolts and plate from the inner door panel. Remove the rear side door water deflector. Position the window approximately half way down in the door. Loosen the two nuts located on the regulator guide to window. Use masking tape, tape the window to the upper door frame. Disconnect the rear side door window regulator electrical connector. Tighten 10 N.m (89 lb in)
2	Rear Side Door Window Regulator Bolts (Qty: 3) Tighten 10 N.m (89 lb in)
3	Rear Side Door Window Regulator Procedures Transfer the power window motor. Refer to Rear Side Door Window Regulator Motor Replacement . NOTE: Inspect the window for proper operation before installing the door trim.
