Front Side Door Window Regulator Motor Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

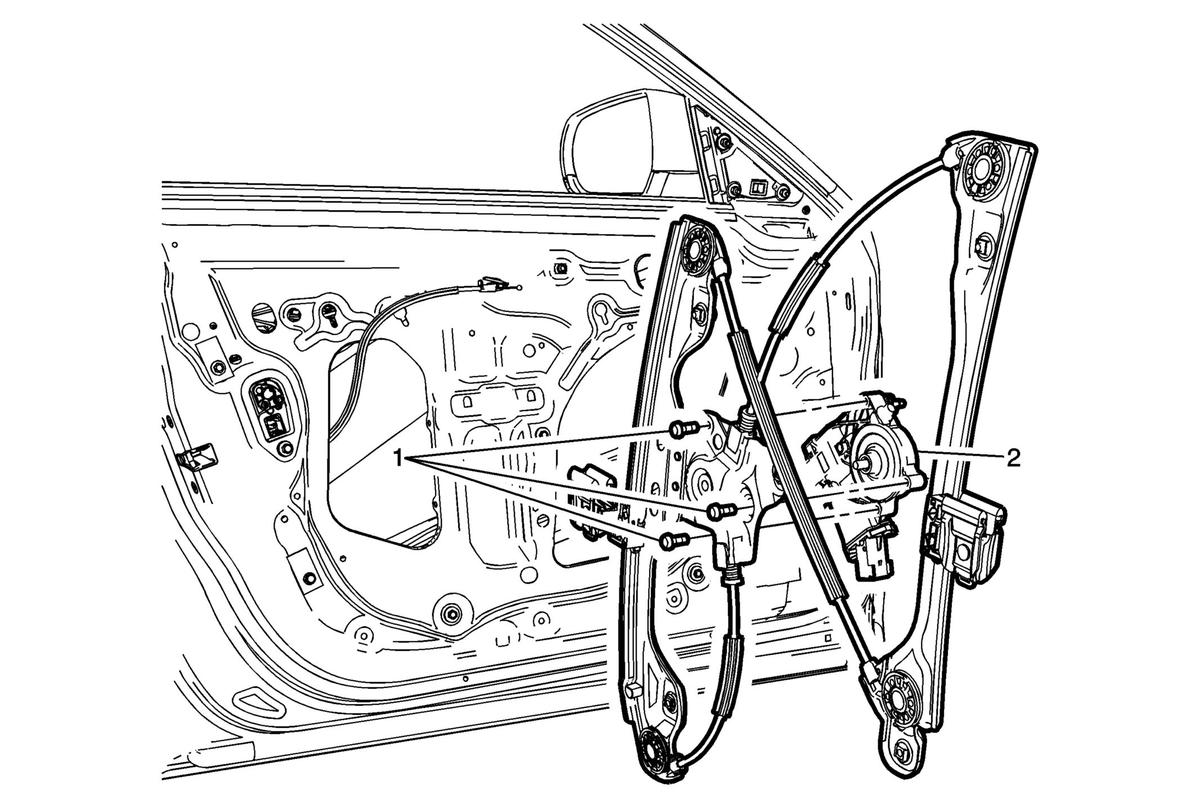

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front side door window regulator. Refer to Front Side Door Window Regulator Replacement (Sedan) Front Side Door Window Regulator Replacement (Coupe) . |
|
| 1 | Front Side Door Window Regulator Motor Screws (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Front Side Door Window Regulator Motor
NOTE:
Inspect the door window for proper operation before installing the door trim. |
