Front Side Door Window Regulator Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

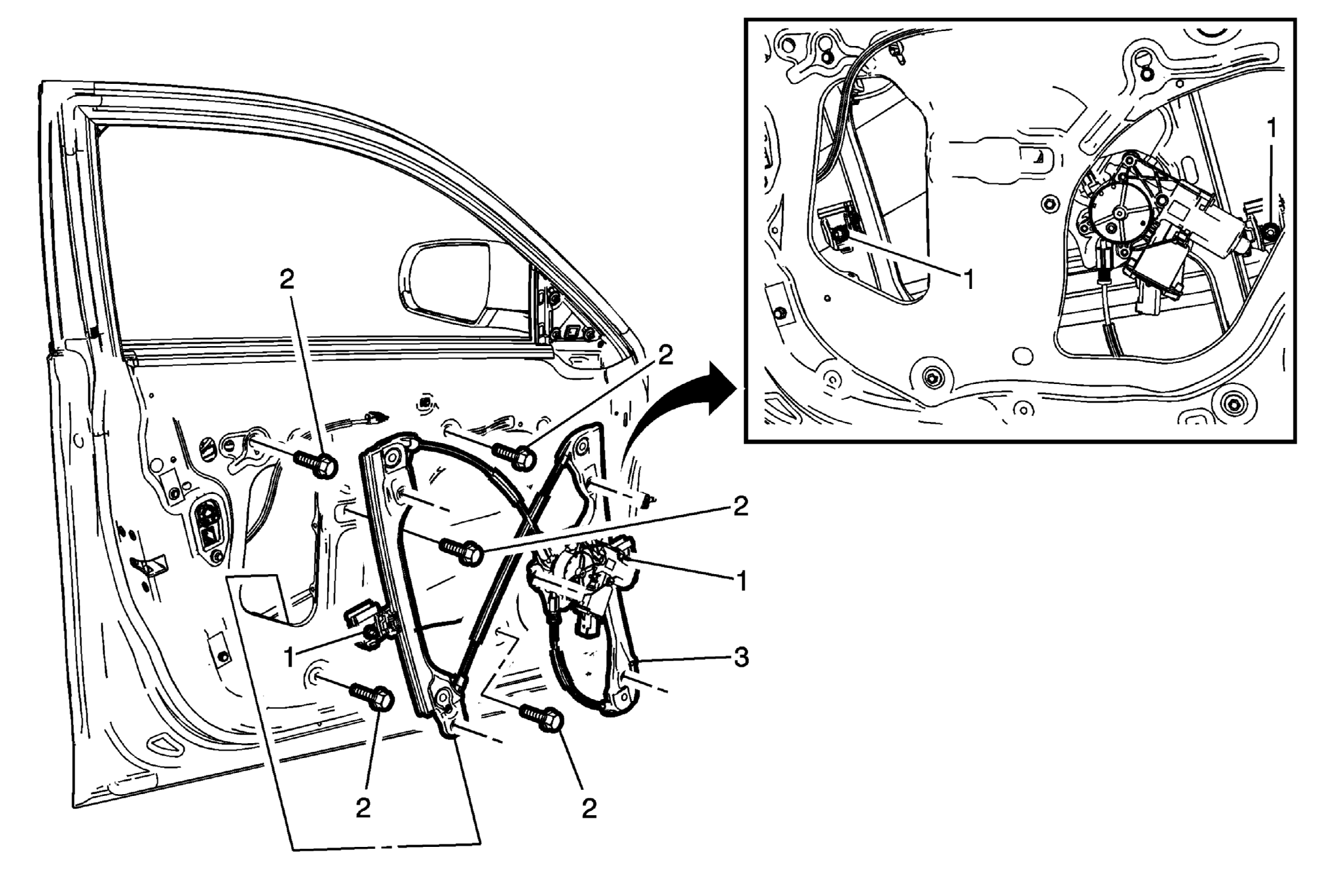

Fig 1: Front Side Door Window Regulator (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door trim. Refer to Front Side Door Trim Replacement (Sedan) .
1	Front Side Door Window Regulator Guide Nut (Qty: 2) WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector. Place the window in the full up position and tape in place. Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Bolt (Qty: 5) Procedure Disconnect the front side door window regulator electrical connector. Tighten 10 N.m (89 lb in)
3	Front Side Door Window Regulator Procedure Transfer the window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement . NOTE: Inspect the door window for proper operation before installing the door trim.
