Front Side Door Window Regulator Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

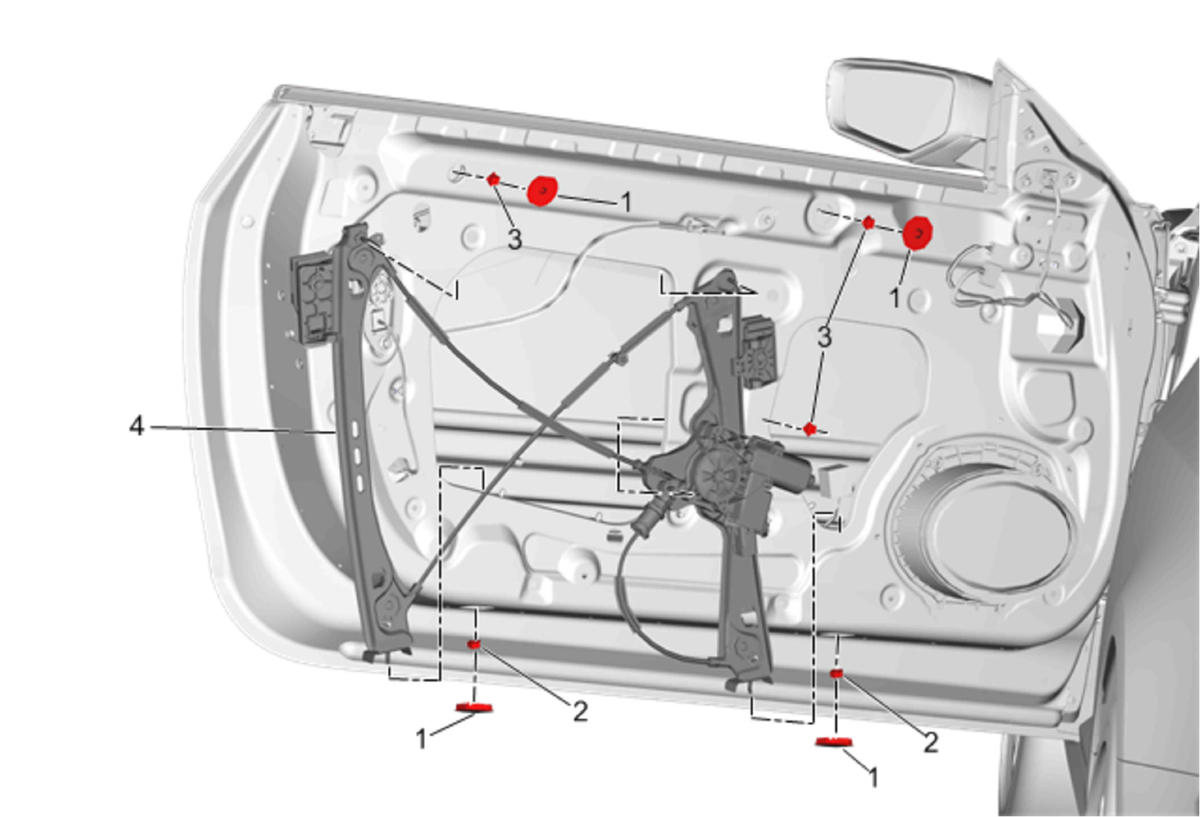

Fig 1: Front Side Door Window Regulator (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Refer to Front Side Door Window Replacement (Coupe) . Remove the water deflector. Disconnect the electrical connector.
1	Front Side Door Window Regulator Access Hole Plug (Qty: 4) NOTE: The lower access plugs are located in the bottom of the door.
2	Front Side Door Window Regulator Lower Nut (Qty: 2) CAUTION: Refer to Fastener Caution . NOTE: The bottoming mounting of the regulator to door is the in and out adjustment for the top of the glass. Before removing the nuts, use a grease pencil to mark the location of the nuts for installation. This will be the starting point for the top of the glass adjustment. Tighten 10 N.m (89 lb in)
3	Front Side Door Window Regulator Upper Nut (Qty: 3) Tighten 10 N.m (89 lb in)
4	Front Side Door Window Regulator Procedure Transfer all necessary components. Refer to Window Motor Programming - Express Function . NOTE: Check the top glass fit after the rim panel is installed and adjust as necessary using the lower regulator nuts.
