Front Side Door Window Belt Reveal Molding Replacement (Sedan)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

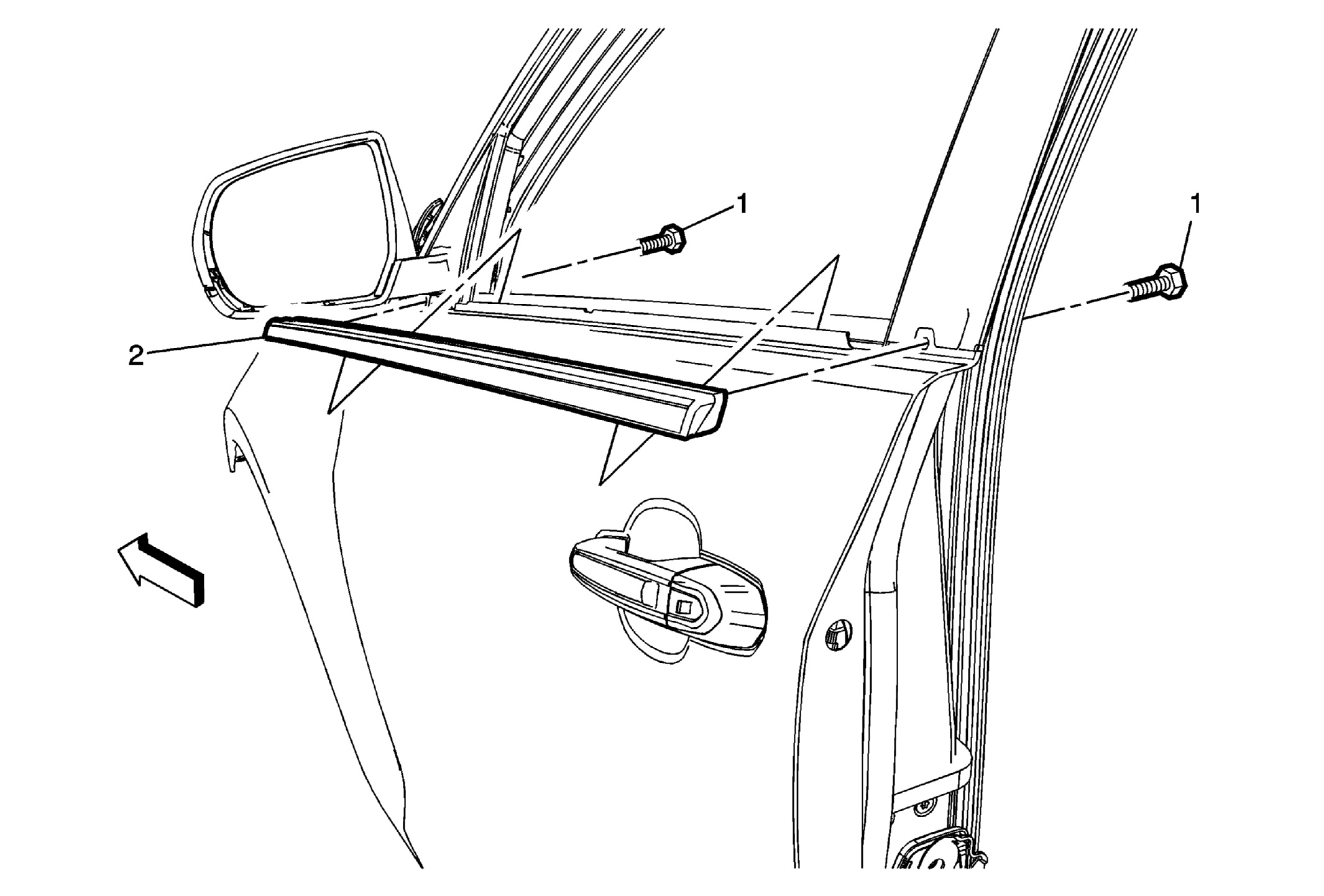

Fig 1: Front Side Door Window Belt Reveal Molding (Sedan)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement (DR2, DR5)Outside Rearview Mirror Replacement (DR4) .
1	Front Side Door Window Belt Reveal Molding Screws (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Front Side Door Window Belt Reveal Molding Procedure Lower the front side door window to the fully down position. Tape off the lower window frame to prevent damage to the door. Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases. Install the reveal molding to the door flange, push downward on the molding until fully seated. Ensure that both corners are clipped in place at the front and rear corners. NOTE: Inspect the door window for proper operation.

Callout

Component Name

Preliminary Procedure
Remove the outside rearview mirror. Refer to Outside Rearview Mirror Replacement (DR2, DR5)Outside Rearview Mirror Replacement (DR4) .

Front Side Door Window Belt Reveal Molding Screws (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Front Side Door Window Belt Reveal Molding

Procedure

Lower the front side door window to the fully down position.
Tape off the lower window frame to prevent damage to the door.
Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases.
Install the reveal molding to the door flange, push downward on the molding until fully seated.
Ensure that both corners are clipped in place at the front and rear corners.

NOTE:

Inspect the door window for proper operation.
