Outside Rearview Mirror Replacement (DR4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

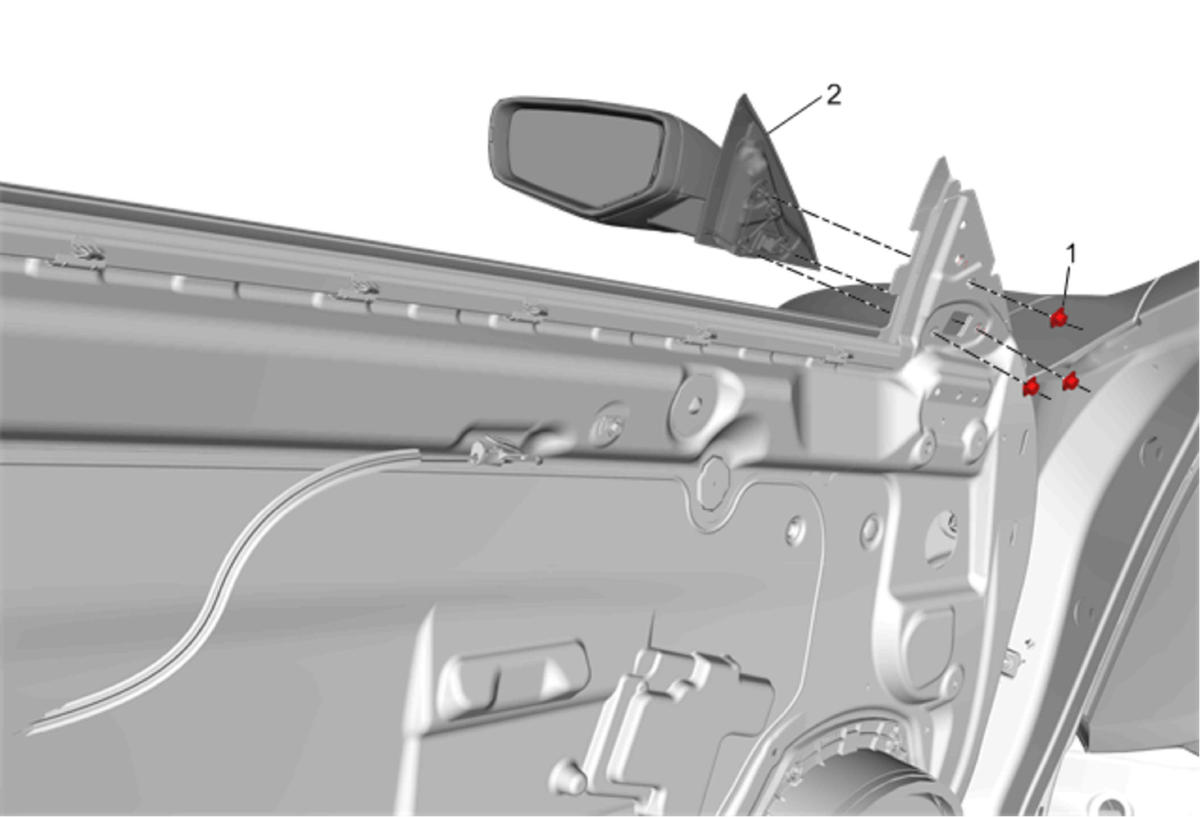

Fig 1: Outside Rearview Mirror (DR4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the front side door to the full open position. Reposition the outside rearview mirror seal to gain access to the outside rearview mirror forward nut.
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Transfer all necessary components. NOTE: Inspect the outside mirror for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Open the front side door to the full open position.
Reposition the outside rearview mirror seal to gain access to the outside rearview mirror forward nut.

Outside Rearview Mirror Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedure
Disconnect the electrical connector.
Tighten
9 N.m (80 lb in)

Outside Rearview Mirror
Procedure
Transfer all necessary components.

NOTE:

Inspect the outside mirror for proper operation before installing the door trim.
