Outside Rearview Mirror Replacement (DR2, DR5)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

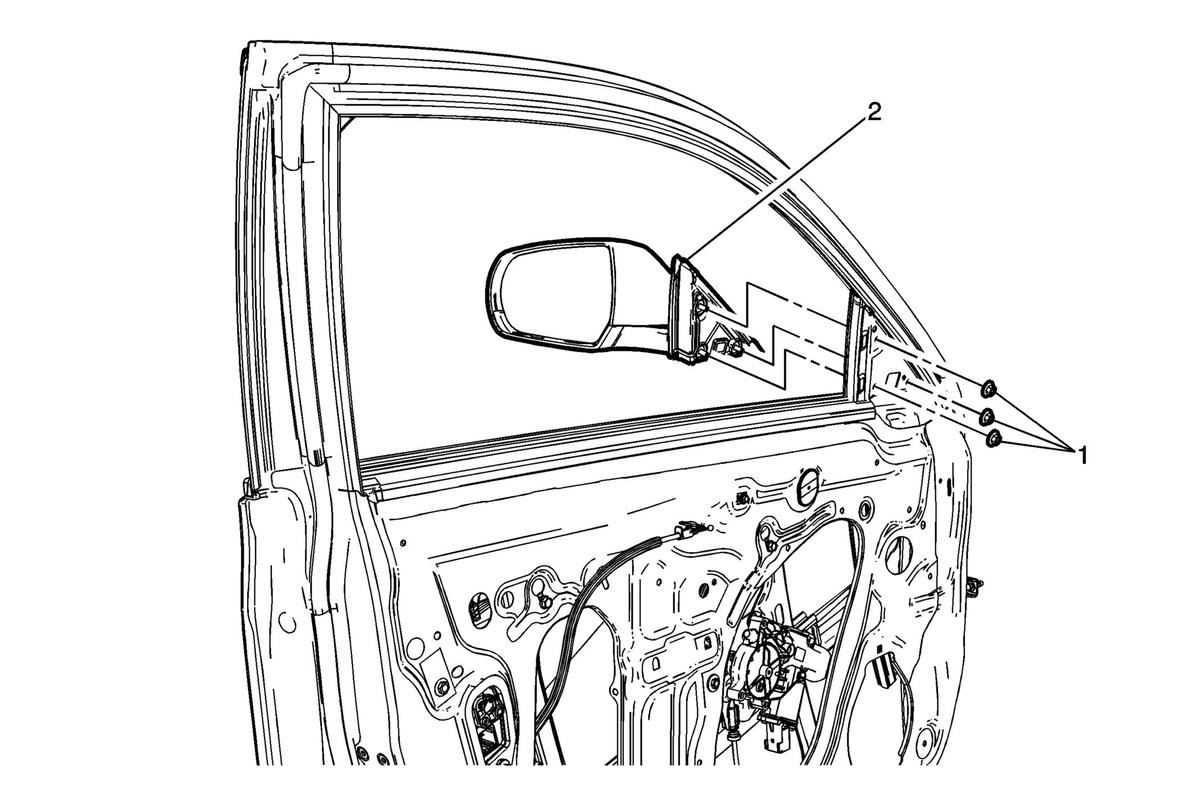

Fig 1: Outside Rearview Mirror (DR2, DR5)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door upper trim panel. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) . Remove the front side door garnish molding. Refer to Front Side Door Garnish Molding Replacement .
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Open the front side door to the full open position to view the mirror bolt. Disconnect the electrical connectors from the mirror. NOTE: When replacing the outside rearview mirror, transfer the insulator pad to the new mirror assembly. Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror NOTE: Inspect the outside mirror for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedures

Remove the front side door upper trim panel. Refer to Front Side Door Trim Replacement (Sedan)Front Side Door Trim Replacement (Coupe) .
Remove the front side door garnish molding. Refer to Front Side Door Garnish Molding Replacement .

Outside Rearview Mirror Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Procedures

Open the front side door to the full open position to view the mirror bolt.
Disconnect the electrical connectors from the mirror.

NOTE:

When replacing the outside rearview mirror, transfer the insulator pad to the new mirror assembly.

Tighten
9 N.m (80 lb in)

Outside Rearview Mirror

NOTE:

Inspect the outside mirror for proper operation before installing the door trim.
