Rear Seat Latch Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

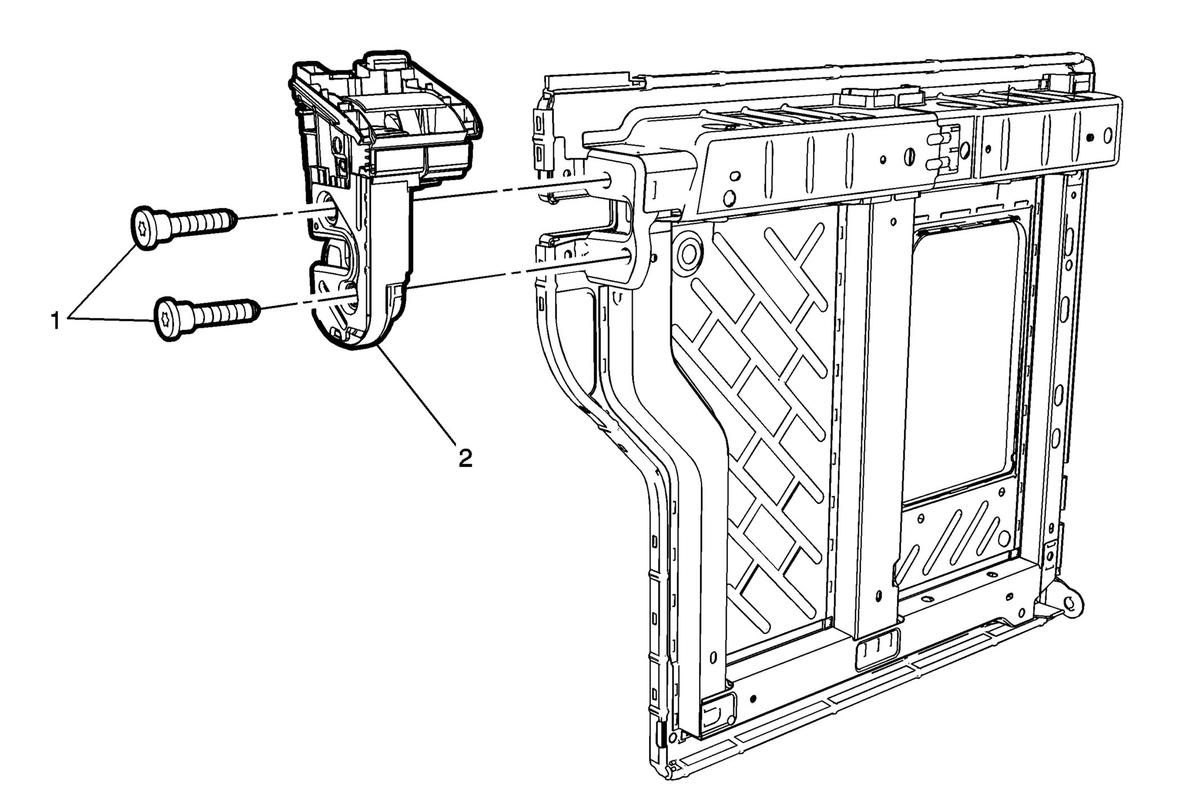

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (40% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) . |
|
| 1 | Rear Seat Latch Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 45 N.m (33 lb ft) |
| 2 | Rear Seat Latch |
