Rear Seat Back Cushion Frame Replacement (60% with AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

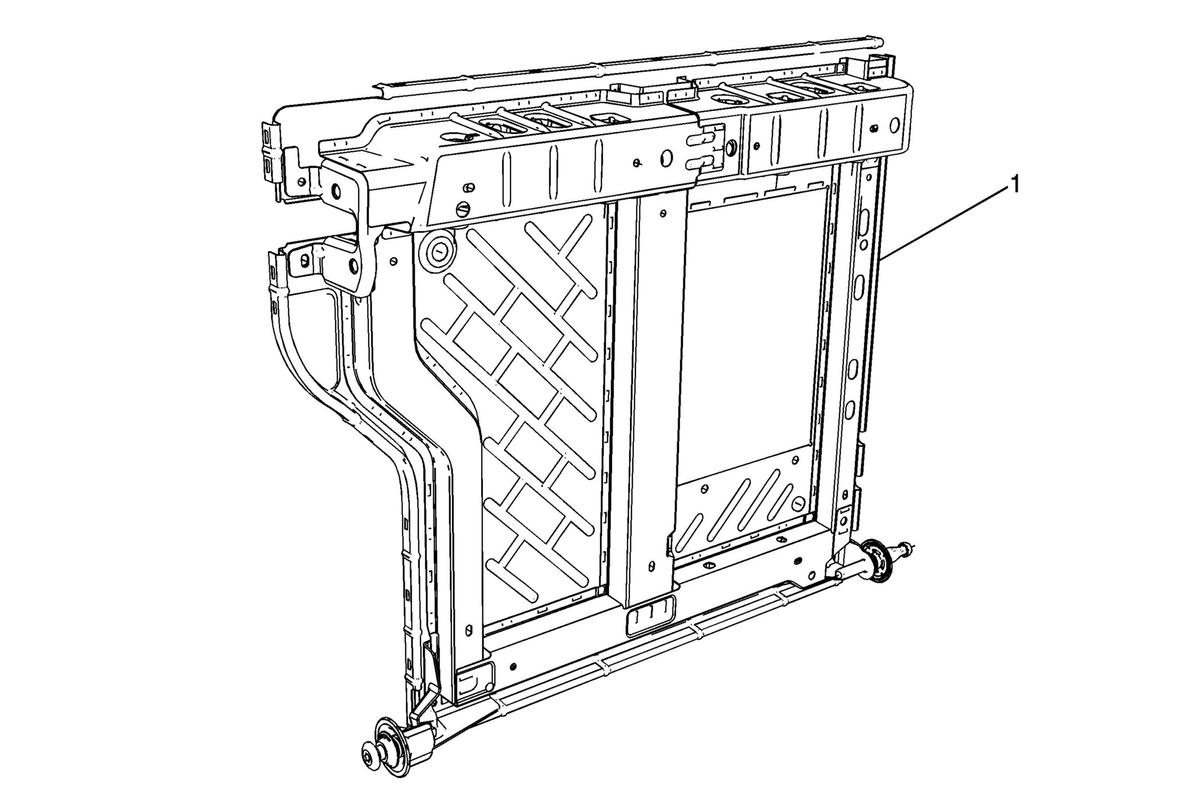

Fig 1: Rear Seat Back Cushion Frame (60% With AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) . Remove the rear seat latch. Refer to Rear Seat Latch Replacement .
1	Rear Seat Back Cushion Frame Procedure If replacing the rear seat back cushion frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (60% Seat with AM9) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (60% with AM9) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) .
Remove the rear seat latch. Refer to Rear Seat Latch Replacement .

Rear Seat Back Cushion Frame
Procedure
If replacing the rear seat back cushion frame, transfer components as necessary.
