Rear Seat Armrest Frame Bracket Replacement (without AM9)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

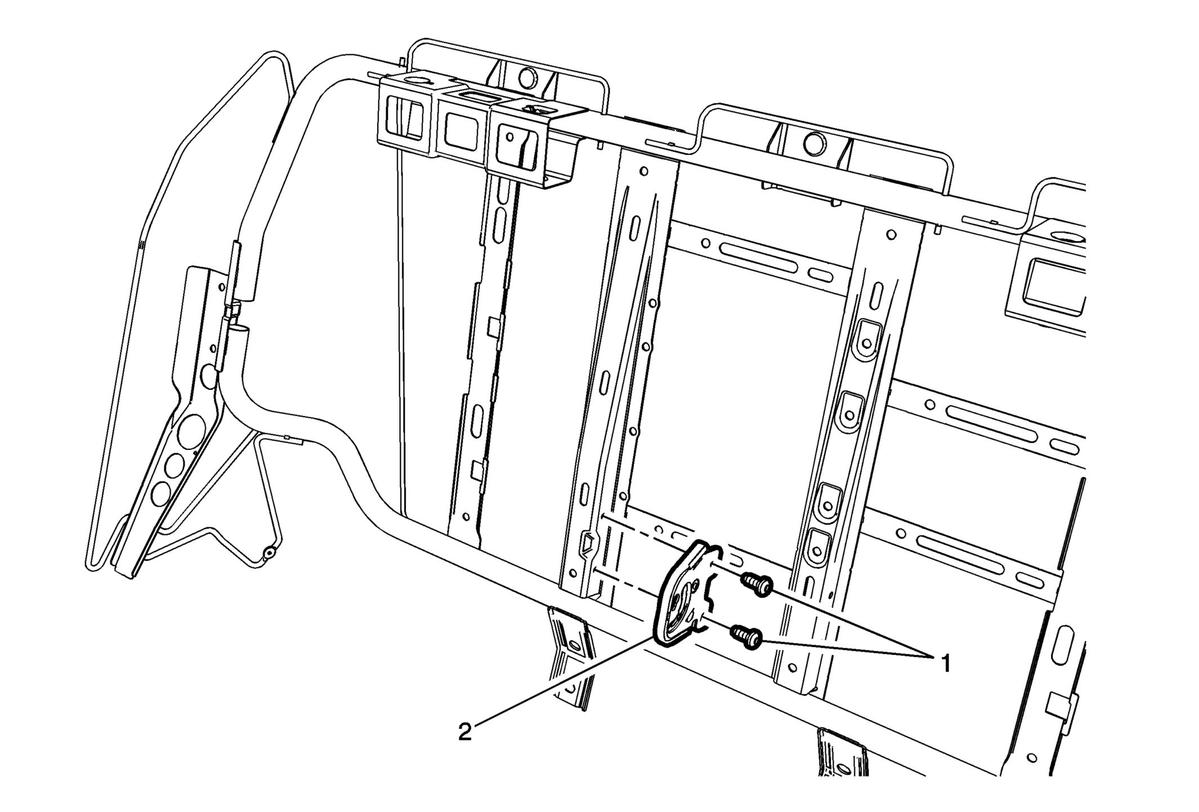

Fig 1: Rear Seat Armrest Frame Bracket (without AM9)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) . Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) .
1	Rear Seat Armrest Frame Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rear Seat Armrest Frame Bracket

Callout

Component Name

Preliminary Procedures

Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation (Sedan) Rear Seat Cushion Removal and Installation (Coupe) .
Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (without AM9, with A6E) Rear Seat Back Cushion Cover and Pad Replacement (Coupe) .

Rear Seat Armrest Frame Bracket Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Rear Seat Armrest Frame Bracket
