Rear Bumper Fascia Diffuser Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

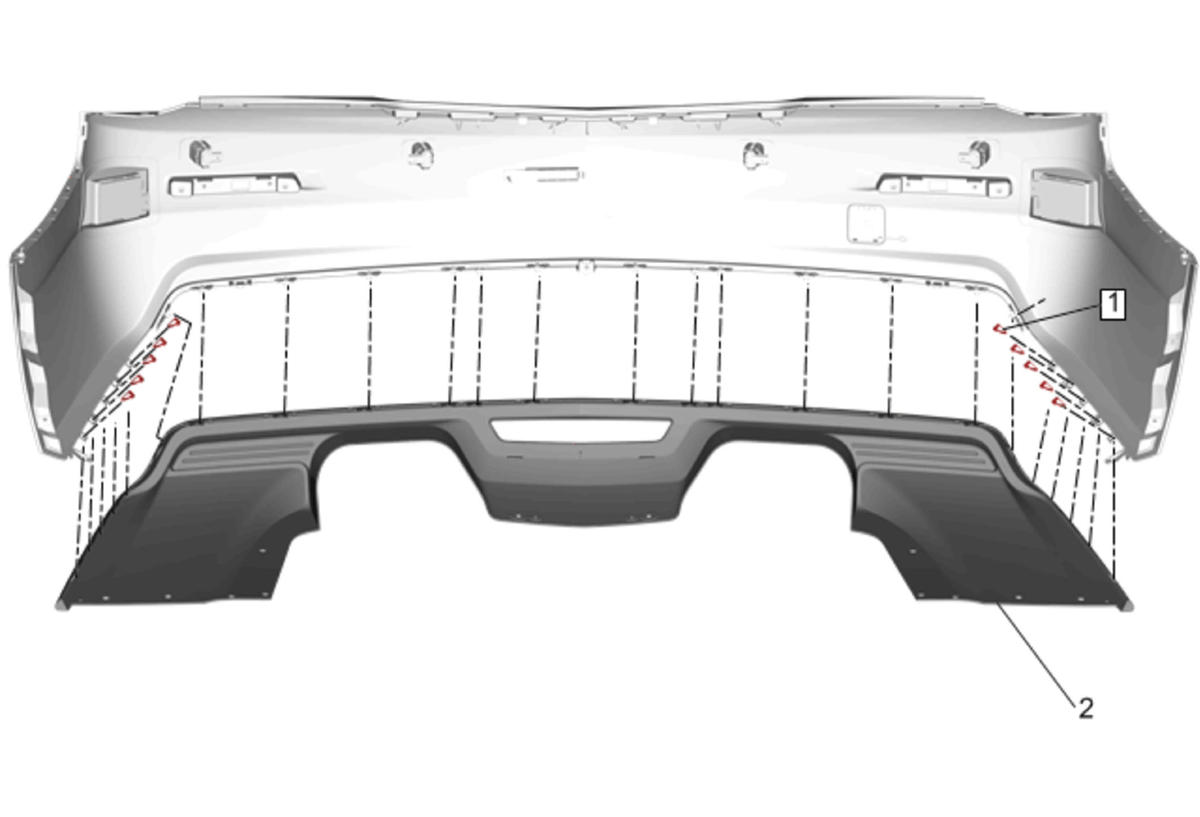

Fig 1: Rear Bumper Fascia Diffuser

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe) Backup Lamp Replacement (Sedan)Backup Lamp Replacement (Coupe)
1	Rear Bumper Fascia Diffuser Retainer (Qty: 10)
2	Rear Bumper Fascia Diffuser Procedure Using a trim type tool, release the 14 retainer tabs.

Callout

Component Name

Preliminary Procedures

Rear Bumper Energy Absorber Replacement Rear Bumper Energy Absorber Replacement (Coupe)
Backup Lamp Replacement (Sedan)Backup Lamp Replacement (Coupe)

Rear Bumper Fascia Diffuser Retainer (Qty: 10)

Rear Bumper Fascia Diffuser
Procedure
Using a trim type tool, release the 14 retainer tabs.
