Rear Bumper Energy Absorber Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

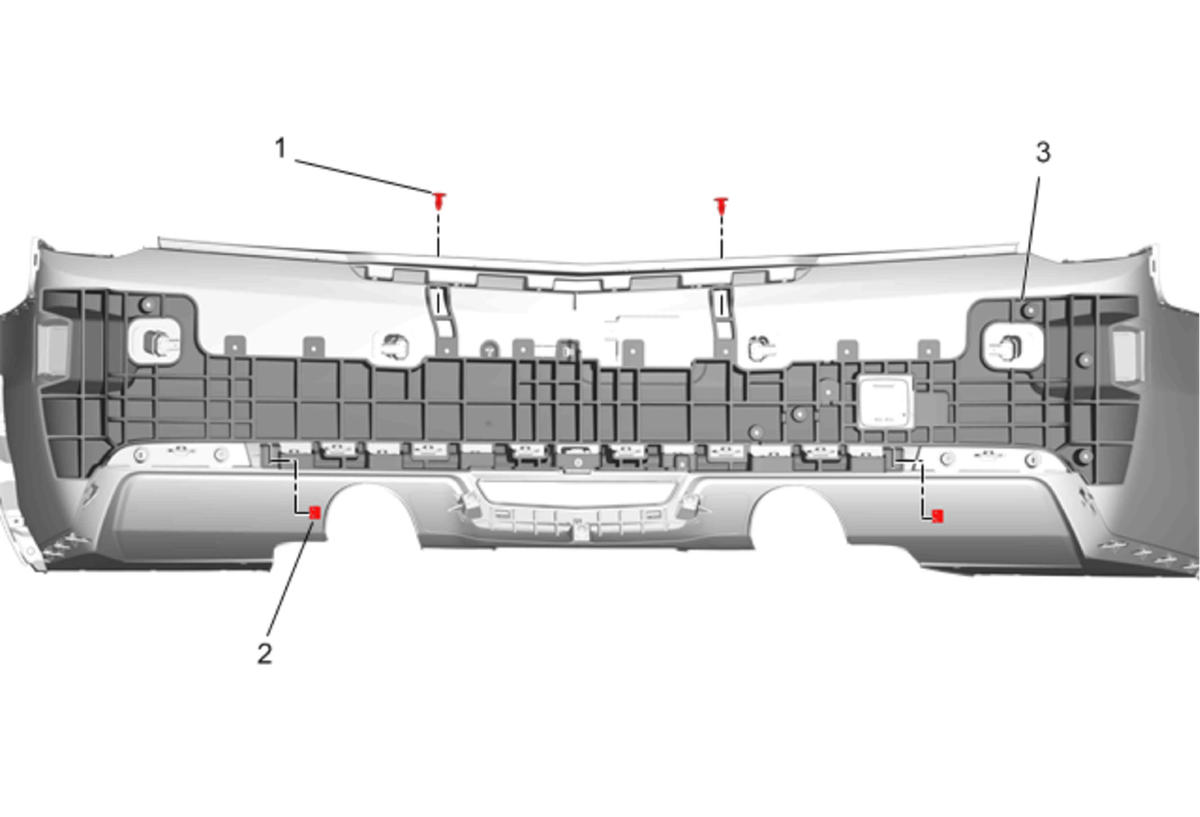

Fig 1: Rear Bumper Energy Absorber (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia molding. Refer to Rear Bumper Fascia Molding Replacement . Remove back up lamp wiring harness. Refer to Backup Lamp Wiring Harness Replacement (Coupe) Remove the backup lamp. Refer to Backup Lamp Replacement (Coupe)
1	Rear Bumper Energy Absorber Push-In Retainer (Qty: 2)
2	Rear Bumper Energy Absorber Clip (Qty: 2)
3	Rear Bumper Energy Absorber Procedure Disconnect the electrical connector/harness. Separate the rear bumper energy absorber from the rear bumper fascia.
