Backup Lamp Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

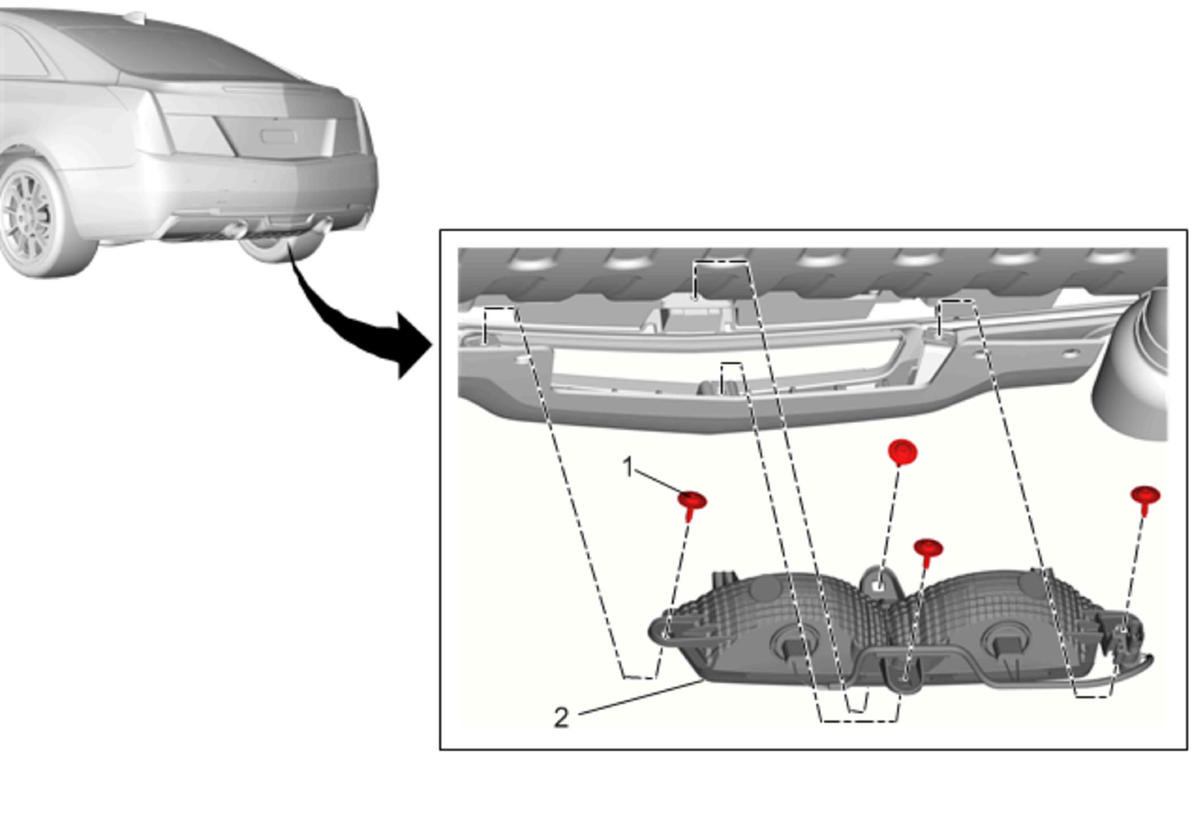

Fig 1: Backup Lamp (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .
1	Backup Lamp Screw (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Backup Lamp Procedure Disconnect the electrical connector. Remove backup lamp from rear bumper fascia.

Callout

Component Name

Preliminary Procedure
Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle (ATS)Lifting and Jacking the Vehicle (ATS-V) .

Backup Lamp Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Backup Lamp

Procedure

Disconnect the electrical connector.
Remove backup lamp from rear bumper fascia.
