Rear Bumper Fascia Molding Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

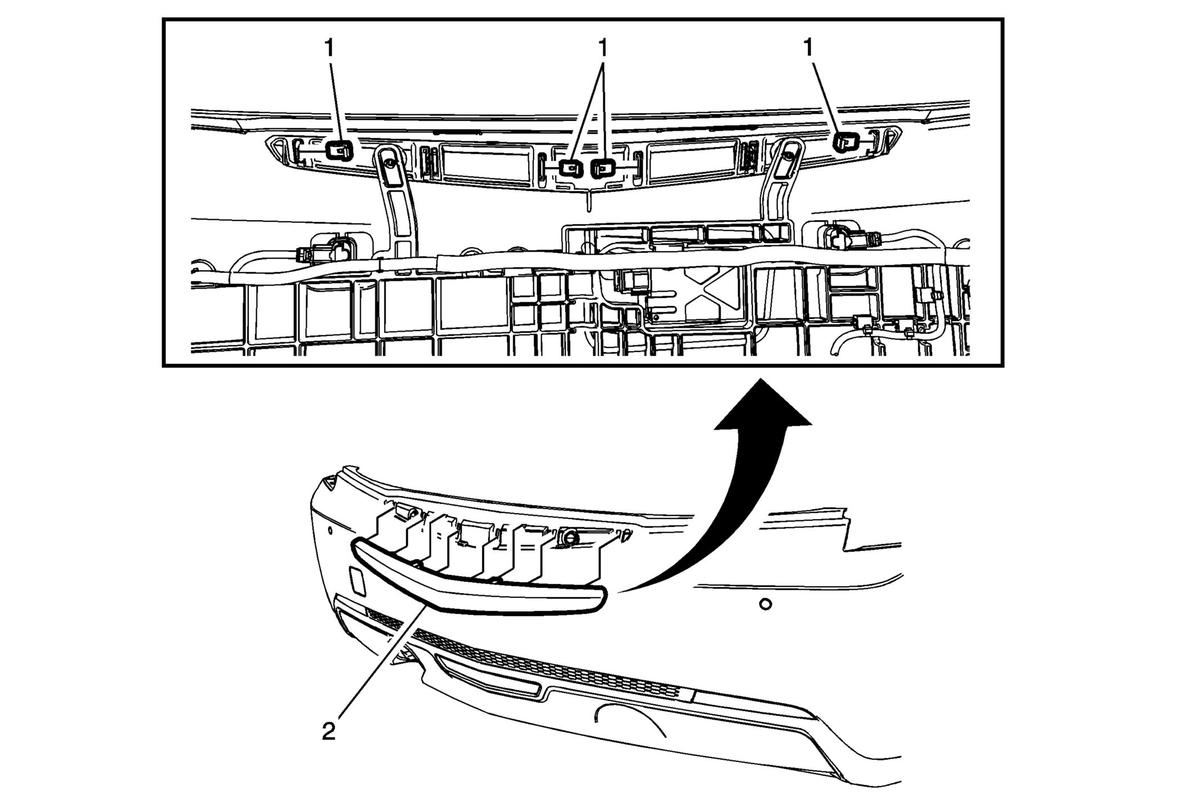

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement . |
|
| 1 | Rear Bumper Fascia Molding Push-In Retainer (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rear Bumper Fascia Molding Procedure Carefully push a small nylon wedge between the rear fascia and the fascia molding. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia molding from the rear fascia. |
