Front Bumper Fascia Molding Replacement (ATS - V)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

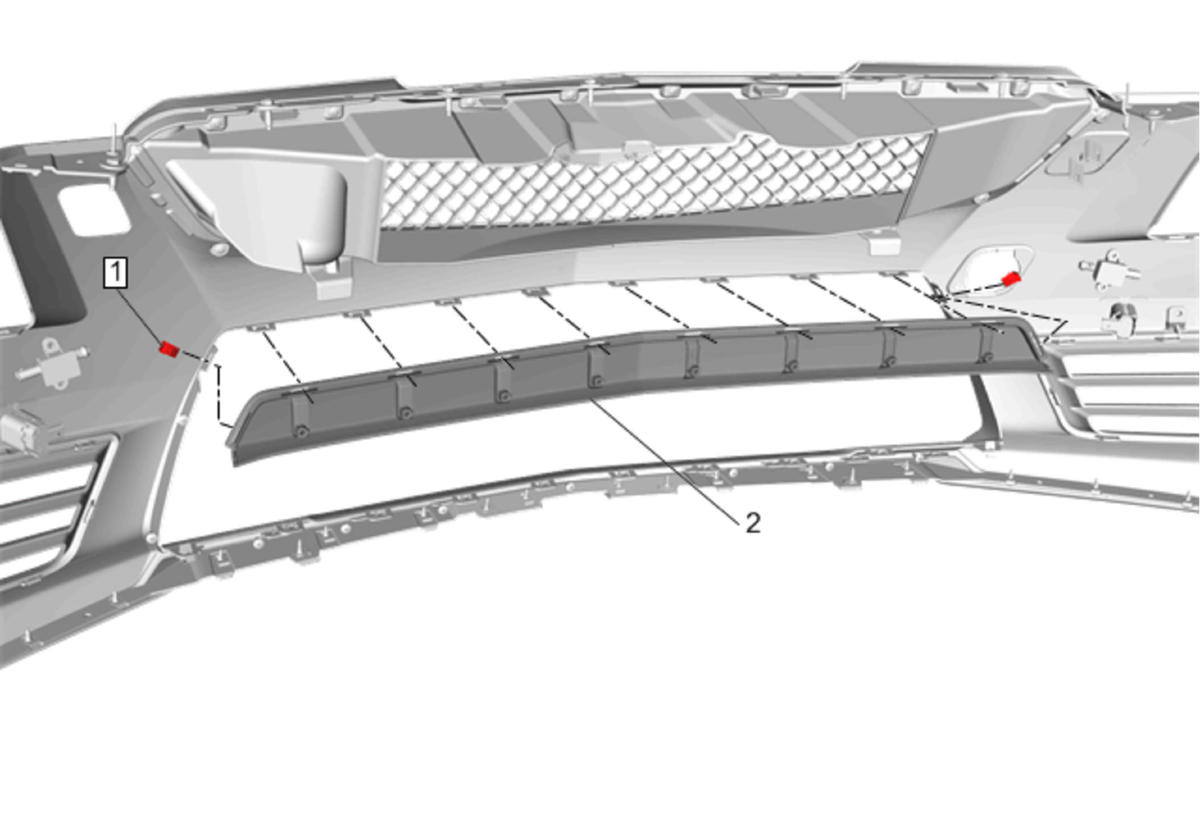

Fig 1: Front Bumper Fascia Molding Replacement (ATS - V)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V) Front Lower Grille Replacement (ATS-V) Place the bumper fascia face down on a clean protective surface.
1	Front Bumper Fascia Molding Clip (Qty: 2)
2	Front Bumper Fascia Molding Procedure Release the locking tabs from the front bumper fascia and remove molding from the fascia.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Energy Upper Absorber Replacement (ATS-V)
Front Lower Grille Replacement (ATS-V)
Place the bumper fascia face down on a clean protective surface.

Front Bumper Fascia Molding Clip (Qty: 2)

Front Bumper Fascia Molding
Procedure
Release the locking tabs from the front bumper fascia and remove molding from the fascia.
