Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

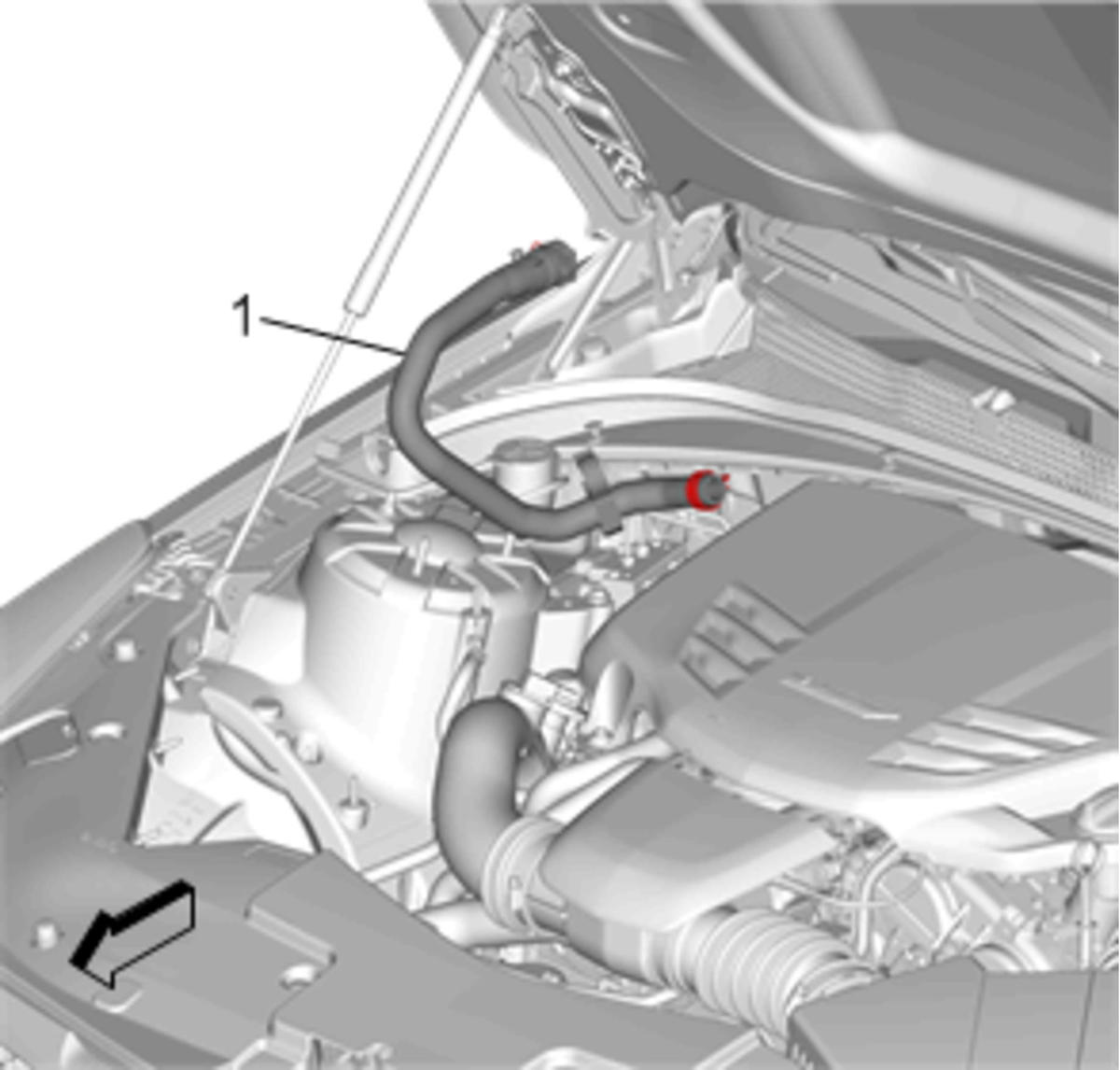

- Install Heater Inlet Hose (1)

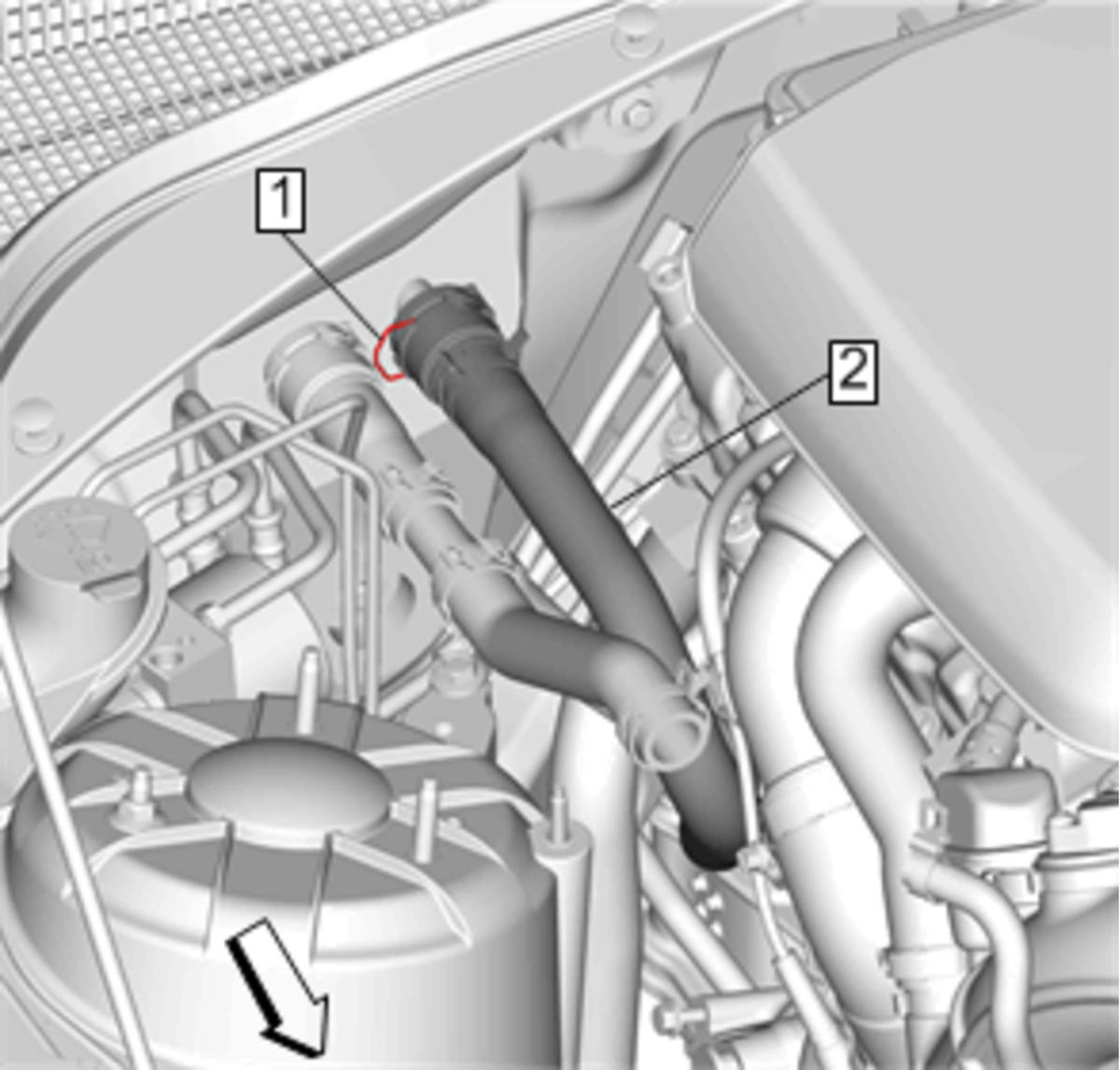

- Install Heater Inlet Hose Retainer (1) @ Heater Core
- Install Radiator Surge Tank. Refer to Radiator Surge Tank Replacement (LF4, LGX)
- Install Front End Sheet Metal Diagonal Brace. Refer to Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS-V) .

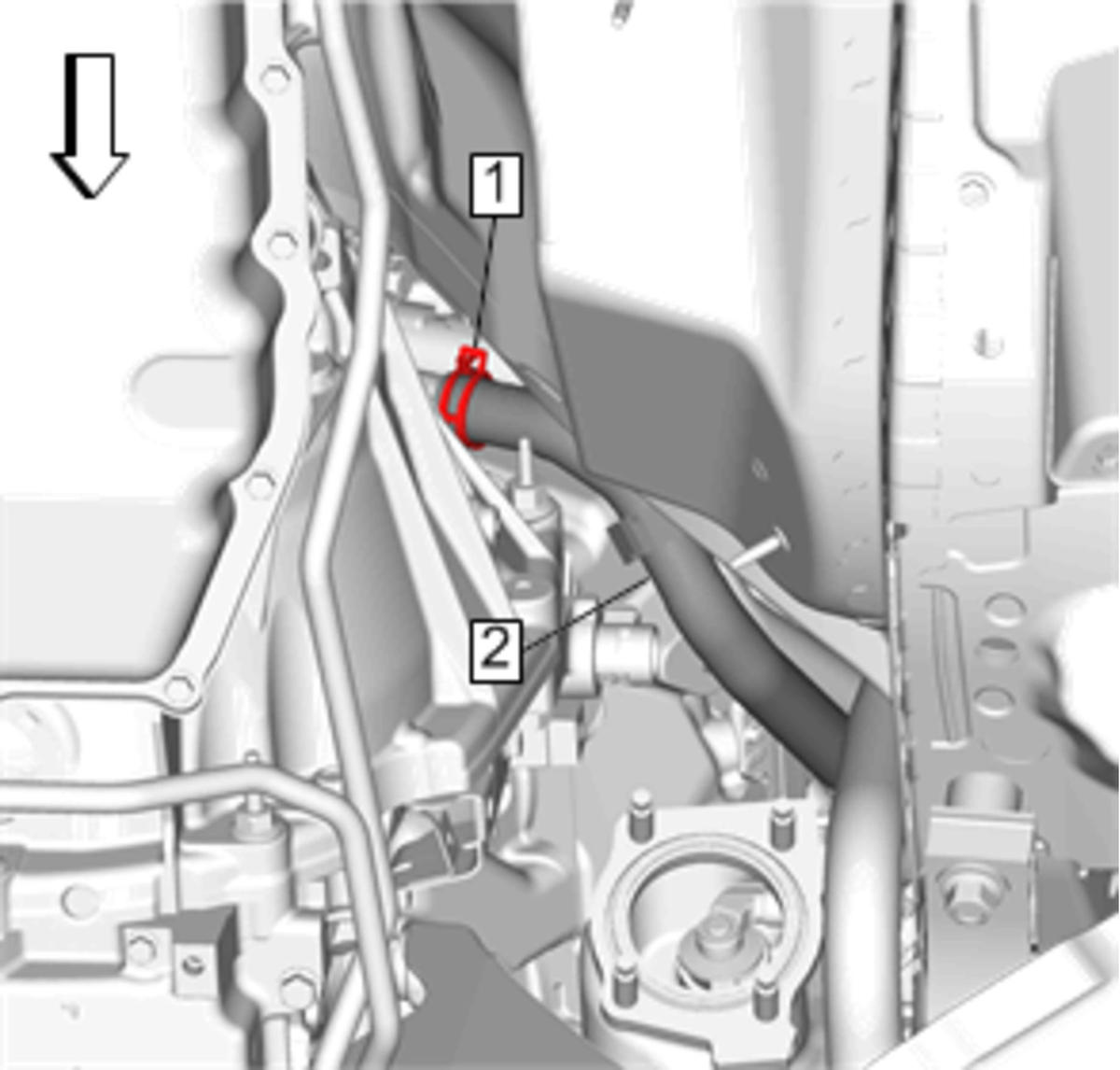

- Engage Heater Inlet Hose Clamp (1) @ Heater Inlet Hose (2). Refer to Hose Clamp Replacement Guidelines - Spring Type
- Install Right Side Catalytic Converter. Refer to Catalytic Converter Replacement - Right Side (LF4)
- Fill the cooling system. Refer to Cooling System Draining and Filling (Static)Cooling System Draining and Filling (GE 47716)
- Start the engine and check for coolant leaks. Refer to Cooling System Leak Testing
NOTE:
Lubricate the inside diameters of the heater inlet hose with clean coolant prior to installation.
