Blower Upper Case Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

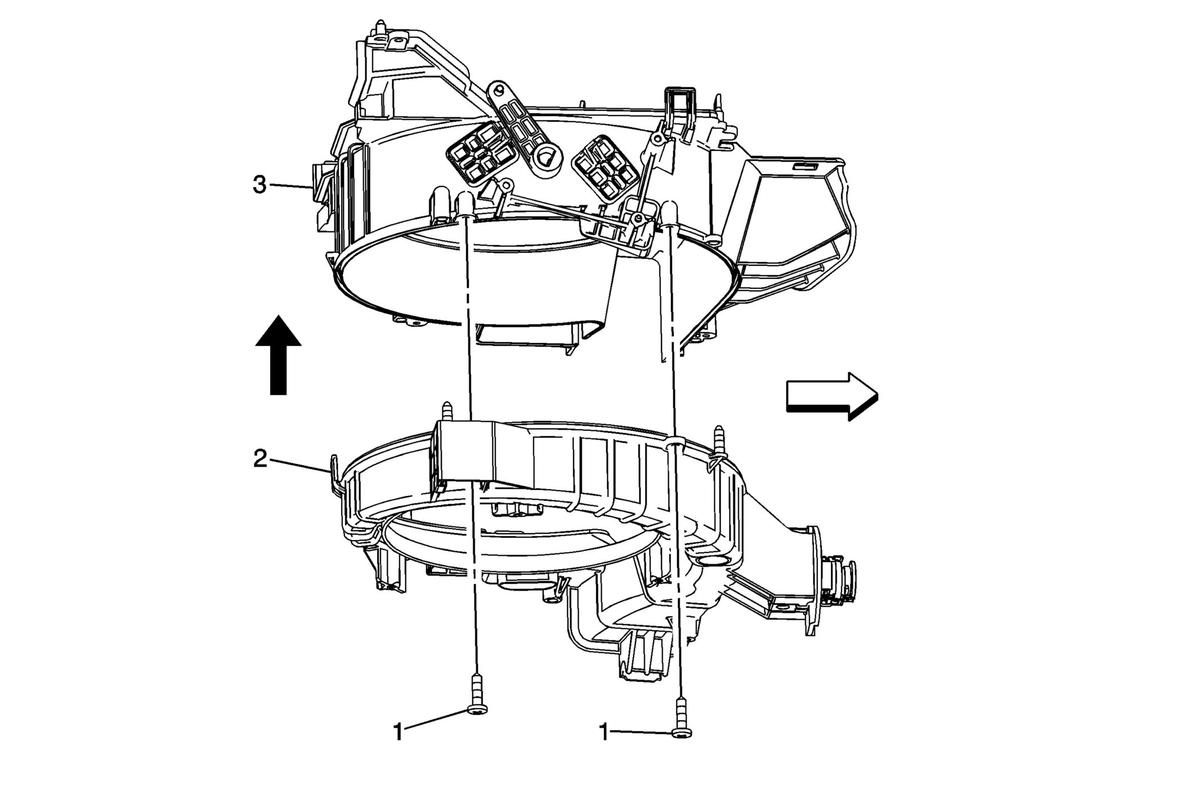

Fig 1: Blower Upper Case

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedures Remove the blower case assembly. Refer to Blower Case Replacement . Remove the fresh air inlet valve actuator. Refer to Air Inlet Valve Actuator Replacement (Fresh Air) .
1	Blower Case Assembly Screw (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Blower Lower Case
3	Blower Upper Case Procedures Cut the blower case seal at the seam to separate the blower case halves. Replace the seal as needed.
