Air Inlet Valve Actuator Replacement (Fresh Air)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

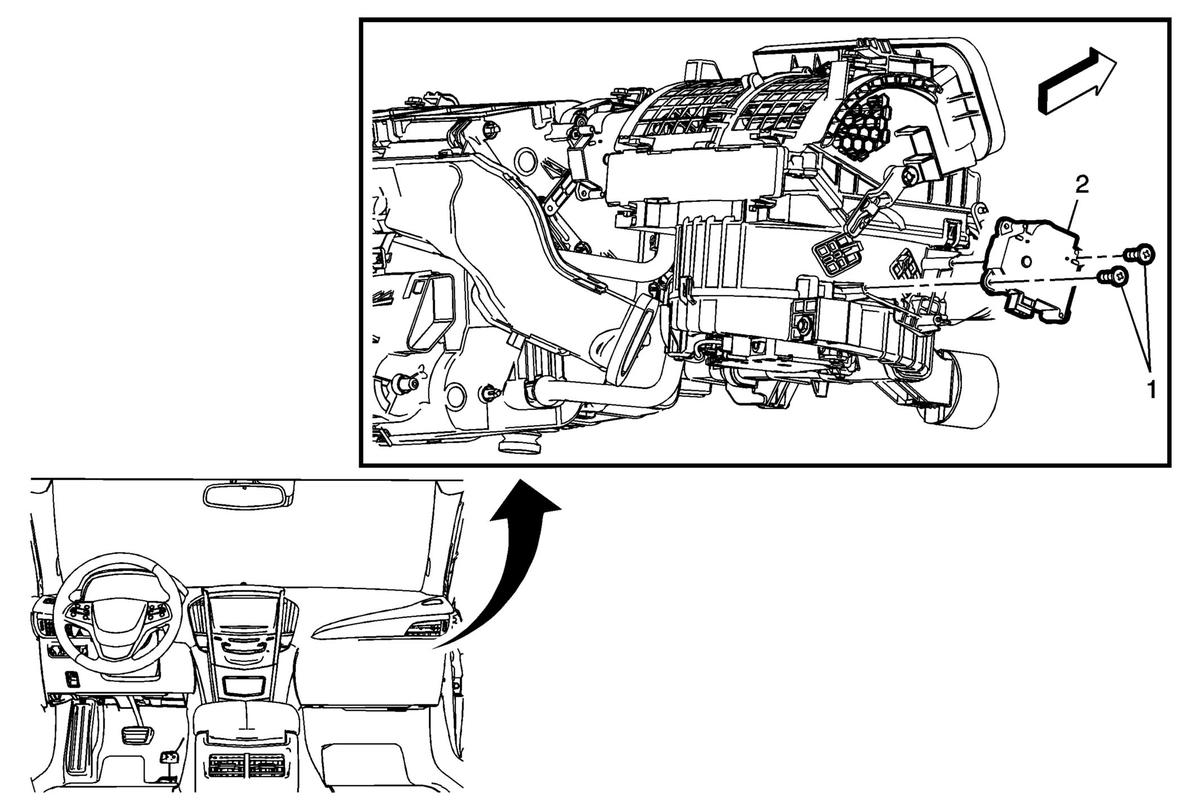

Fig 1: Air Inlet Valve Actuator (Fresh Air)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . Remove the radio receiver assembly. Refer to Radio Replacement . Disconnect the electrical connectors.
1	Air Inlet Valve Actuator Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Air Inlet Valve Actuator - Fresh Air Procedures Disconnect the fresh air inlet valve actuator connector. Perform the actuator calibration procedure. Refer to Actuator Recalibration .

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement .
Remove the radio receiver assembly. Refer to Radio Replacement .
Disconnect the electrical connectors.

Air Inlet Valve Actuator Fastener (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Air Inlet Valve Actuator - Fresh Air

Procedures

Disconnect the fresh air inlet valve actuator connector.
Perform the actuator calibration procedure. Refer to Actuator Recalibration .
