Engine Oil Cooler Replacement (LF4)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

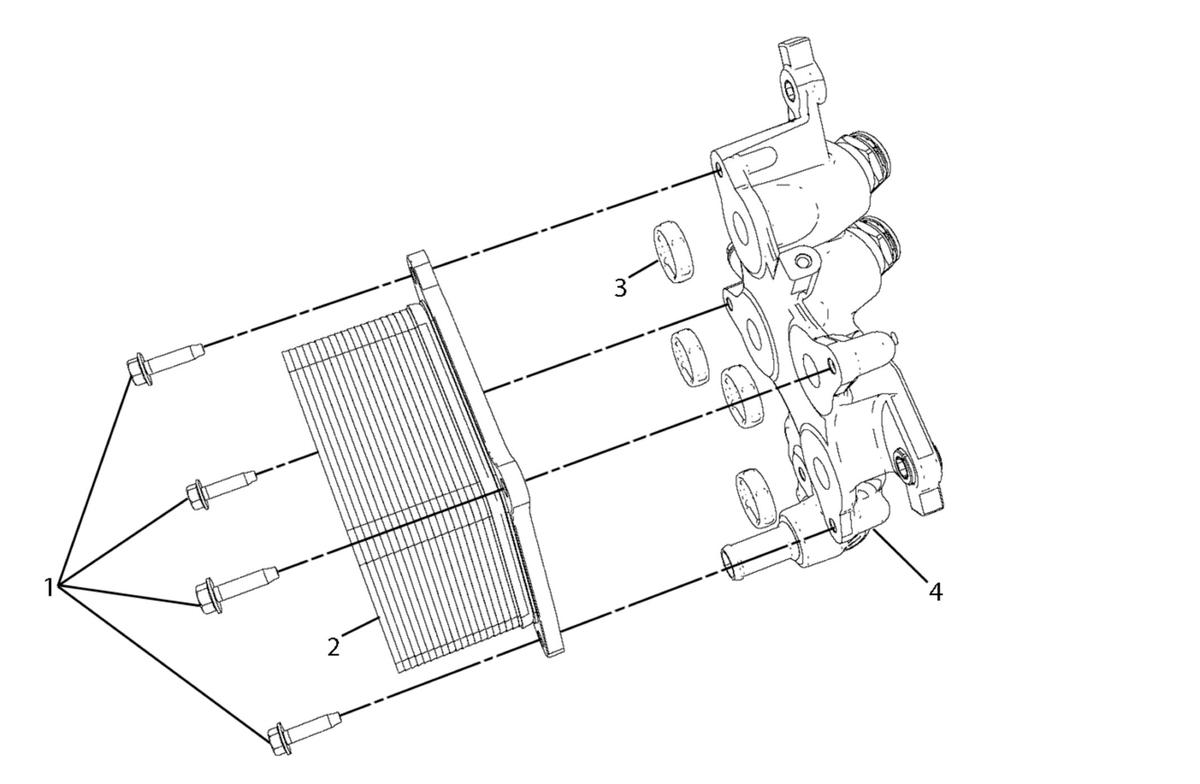

| Callout | Component Name |
|---|---|
| Preliminary Procedure Engine Oil Cooler Shield Replacement |
|
| 1 | Engine Oil Cooler Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Engine Oil Cooler |
| 3 | Engine Oil Cooler Seals Procedure Inspect the oil cooler and oil cooler adapter for proper mating prior to reinstalling the NEW seals.
NOTE:
Install new oil cooler seals whenever the oil cooler and adapter are separated. |
| 4 | Oil Cooler Adapter |
