Supercharger Water Manifold Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

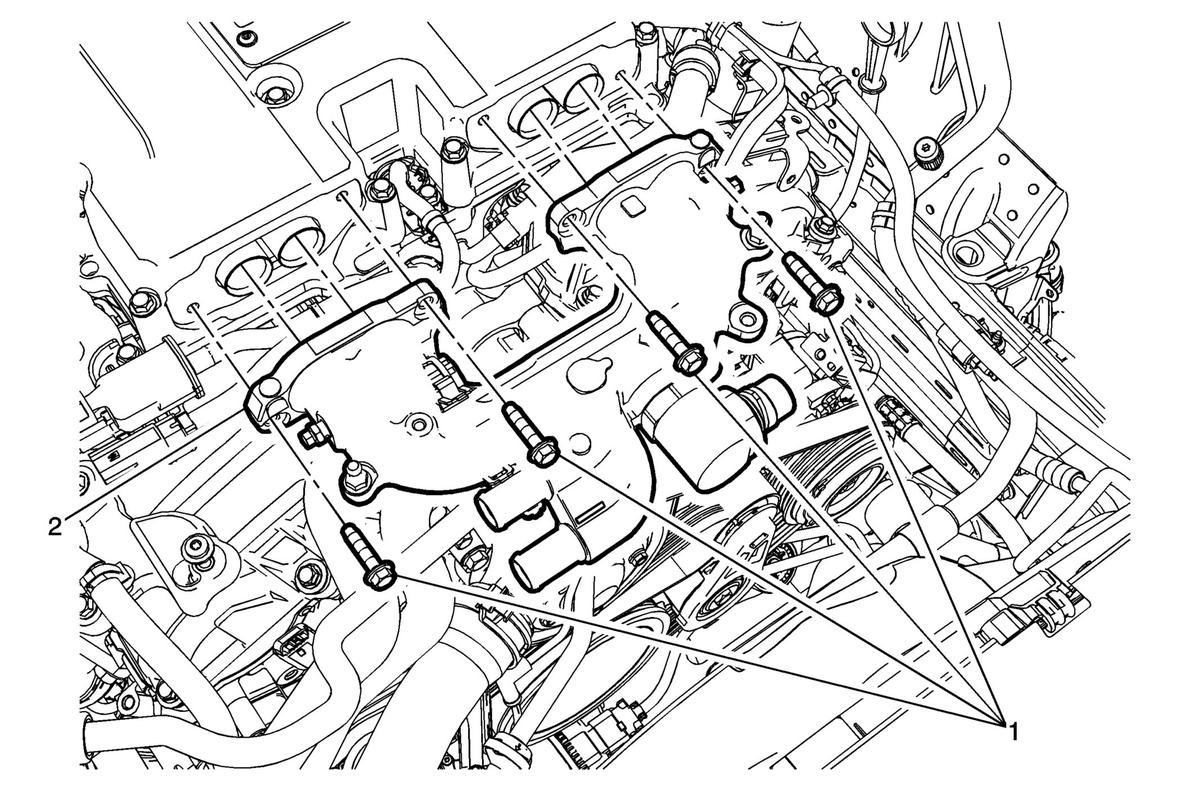

Fig 1: Supercharger Water Manifold

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Charge Air Cooling System Draining and Filling (LF4) Intake Manifold Cover Replacement (LF4)Intake Manifold Cover Replacement (LGX) Air Cleaner Outlet Front Duct Replacement (LF4) Disconnect Charge Air Cooler Coolant Hose Replacement - Pump to Manifold (LF4) Disconnect Charge Air Cooler Coolant Hose Replacement - Radiator to Manifold (LF4)
1	Supercharger Water Manifold Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Supercharger Water Manifold Procedure Install NEW seals. Start the engine and check for coolant leaks. Charge Air Cooling System Leak Testing (LF4)

Callout

Component Name

Preliminary Procedure

Charge Air Cooling System Draining and Filling (LF4)
Intake Manifold Cover Replacement (LF4)Intake Manifold Cover Replacement (LGX)
Air Cleaner Outlet Front Duct Replacement (LF4)
Disconnect Charge Air Cooler Coolant Hose Replacement - Pump to Manifold (LF4)
Disconnect Charge Air Cooler Coolant Hose Replacement - Radiator to Manifold (LF4)

Supercharger Water Manifold Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Supercharger Water Manifold

Procedure

Install NEW seals.
Start the engine and check for coolant leaks. Charge Air Cooling System Leak Testing (LF4)
