Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
  2. Remove Drivetrain and Front Suspension Frame. Drivetrain and Front Suspension Frame Removal and Installation (LF4)

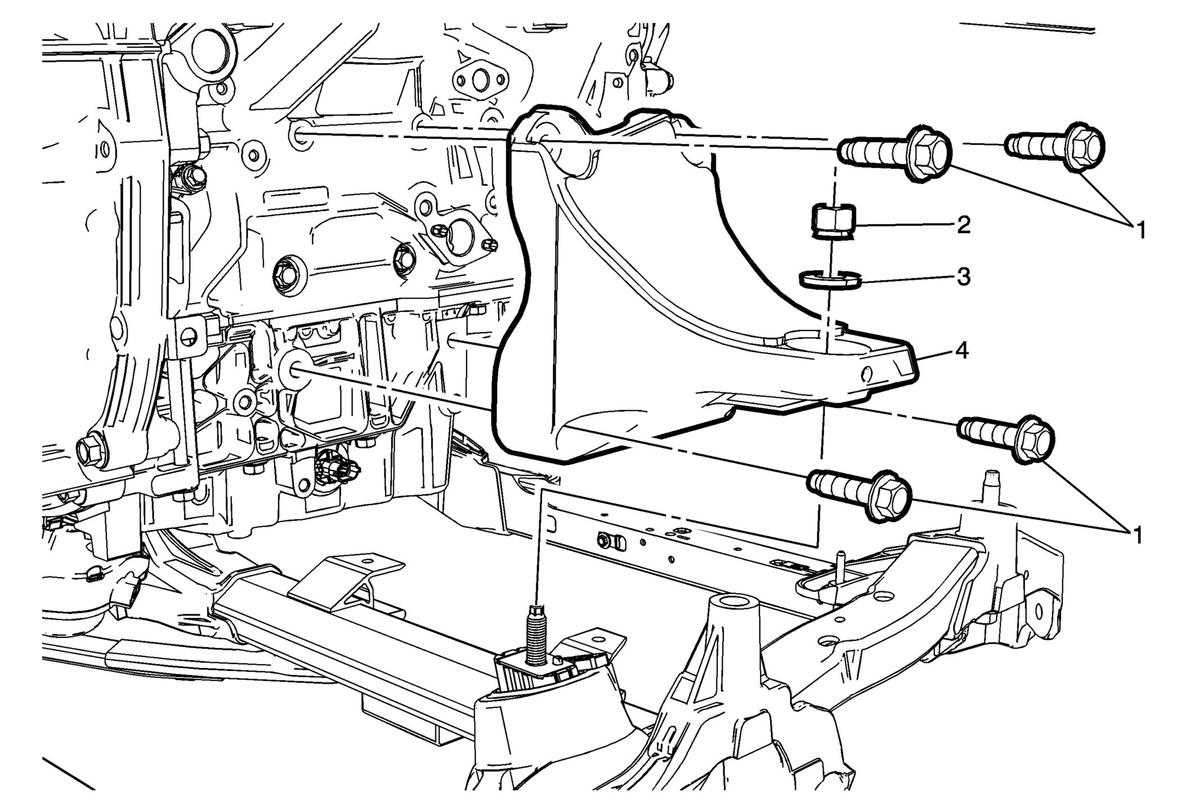

    3. Fig 1: Engine Mount Bracket - Right Side (LF4)
    GM3605764Courtesy of GENERAL MOTORS COMPANY
  3. Remove Engine Mount Bracket - Right Side (4) - Engine Mount Bracket Replacement - Right Side (LF4)
    4. Fig 2: Transmission Fluid Cooler Inlet And Outlet Pipe Retaining Clip At Transmission
    GM4062437Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect Transmission Fluid Cooler Inlet and Outlet Pipe (2) @Transmission - Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With MG9)Transmission Fluid Cooler Inlet and Outlet Pipe Replacement (LF4 With M5U)

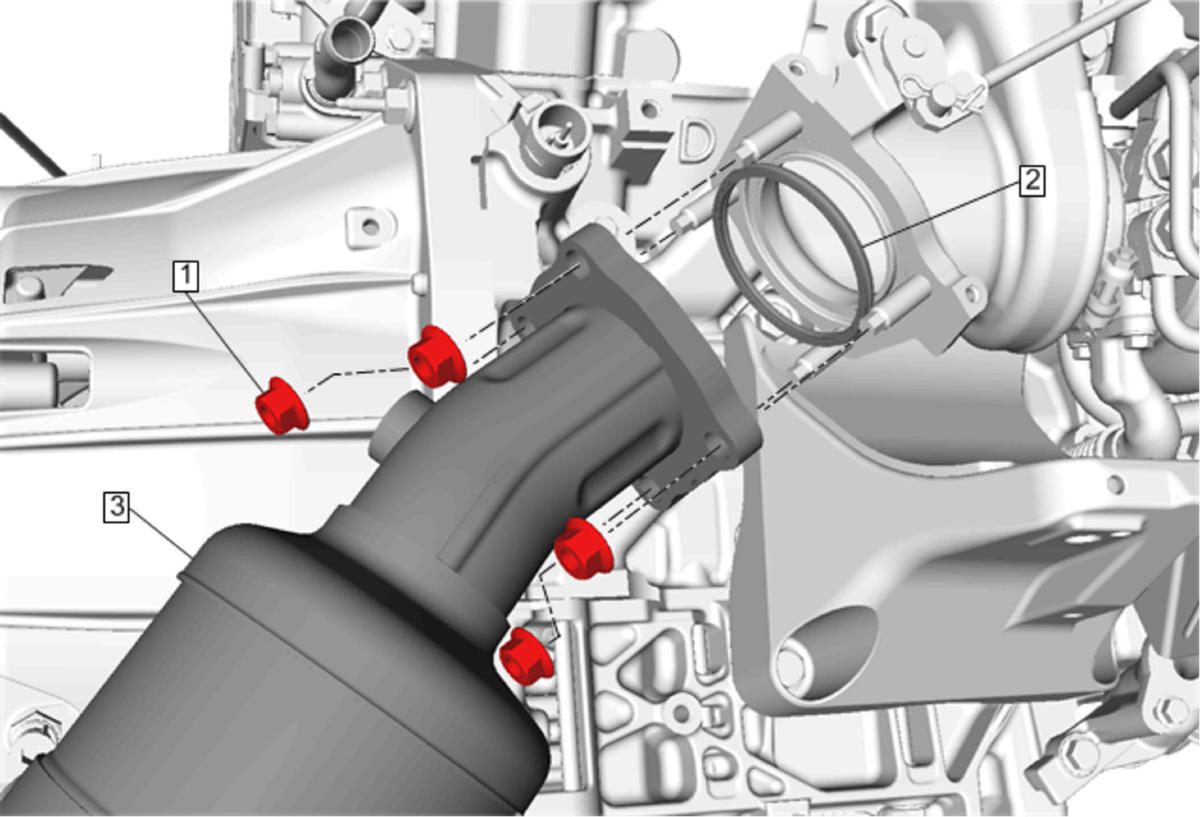

    5. Fig 3: Catalytic Converter
    GM4032022Courtesy of GENERAL MOTORS COMPANY
  5. Remove Catalytic Converter (3) - Catalytic Converter Replacement - Right Side (LF4)
    6. Fig 4: Starter Solenoid Connector
    GM4276984Courtesy of GENERAL MOTORS COMPANY
  6. Remove Starter (4) - Starter Replacement (LF4 - Manual Transmission)Starter Replacement (LF4 - Automatic Transmission)
  7. Reposition the starter electrical wiring harness.
    8. Fig 5: Engine Oil Cooler Adapter (LF4)
    GM3649169Courtesy of GENERAL MOTORS COMPANY
  8. Remove Engine Oil Cooler Adapter (2) - Engine Oil Cooler Adapter Replacement (LF4)
    9. Fig 6: Radiator Outlet Hose And Clamp
    GM4044991Courtesy of GENERAL MOTORS COMPANY
  9. Remove Radiator Outlet Hose (2) - Radiator Outlet Hose Replacement (LF4)

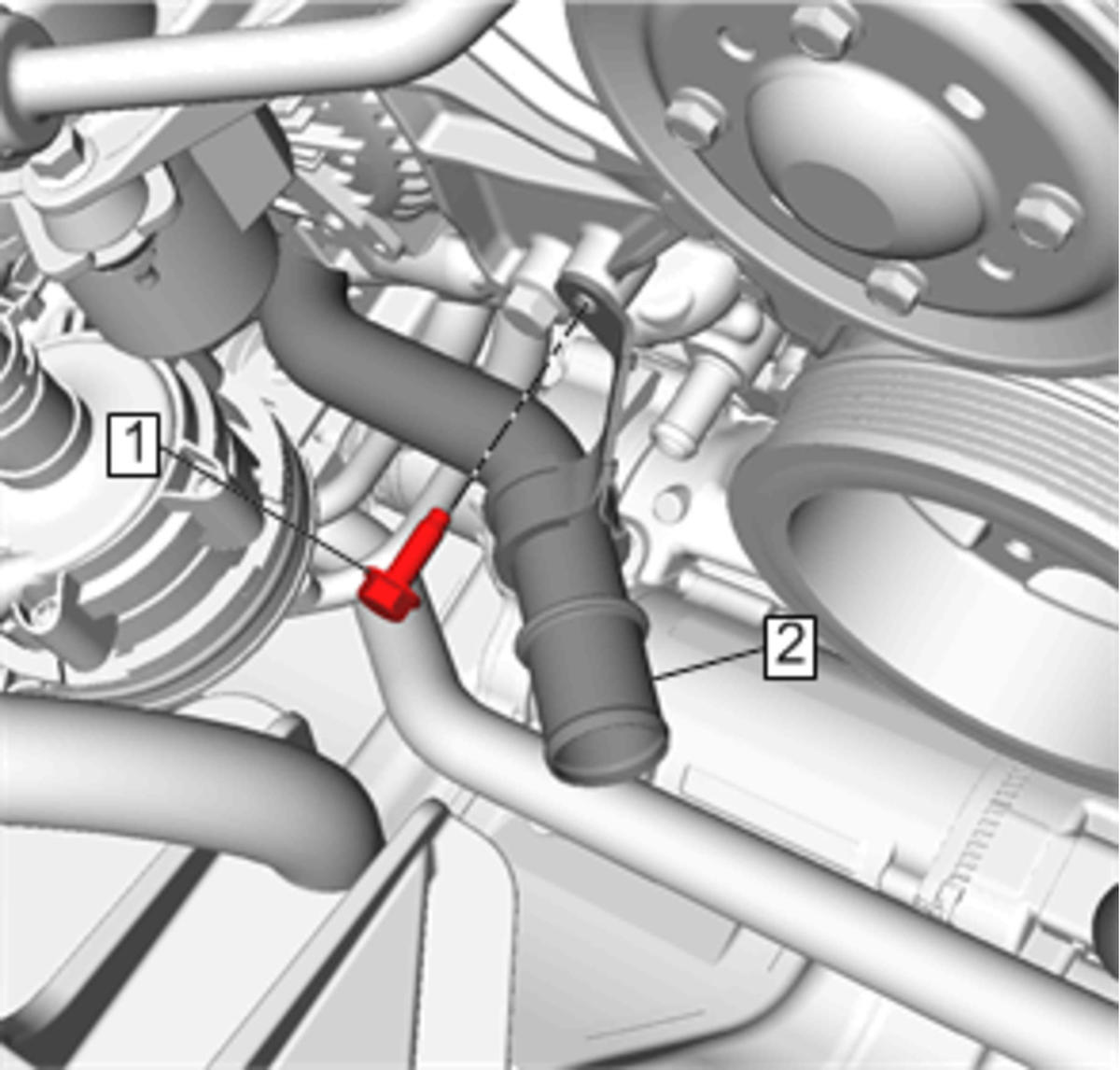

    10. Fig 7: Radiator Outlet Pipe Bracket Bolt
    GM4044994Courtesy of GENERAL MOTORS COMPANY
  10. Remove Radiator Outlet Pipe Bracket Bolt (1)
    11. Fig 8: Heater Inlet Hose
    GM4276860Courtesy of GENERAL MOTORS COMPANY
  11. Disconnect Heater Inlet Hose (2) @Heater Core - Heater Inlet Hose Replacement (LF4)
    12. Fig 9: Heater Outlet Hose
    GM4276895Courtesy of GENERAL MOTORS COMPANY
  12. Disconnect Heater Outlet Hose (2) @Heater Core - Heater Outlet Hose Replacement (LF4)

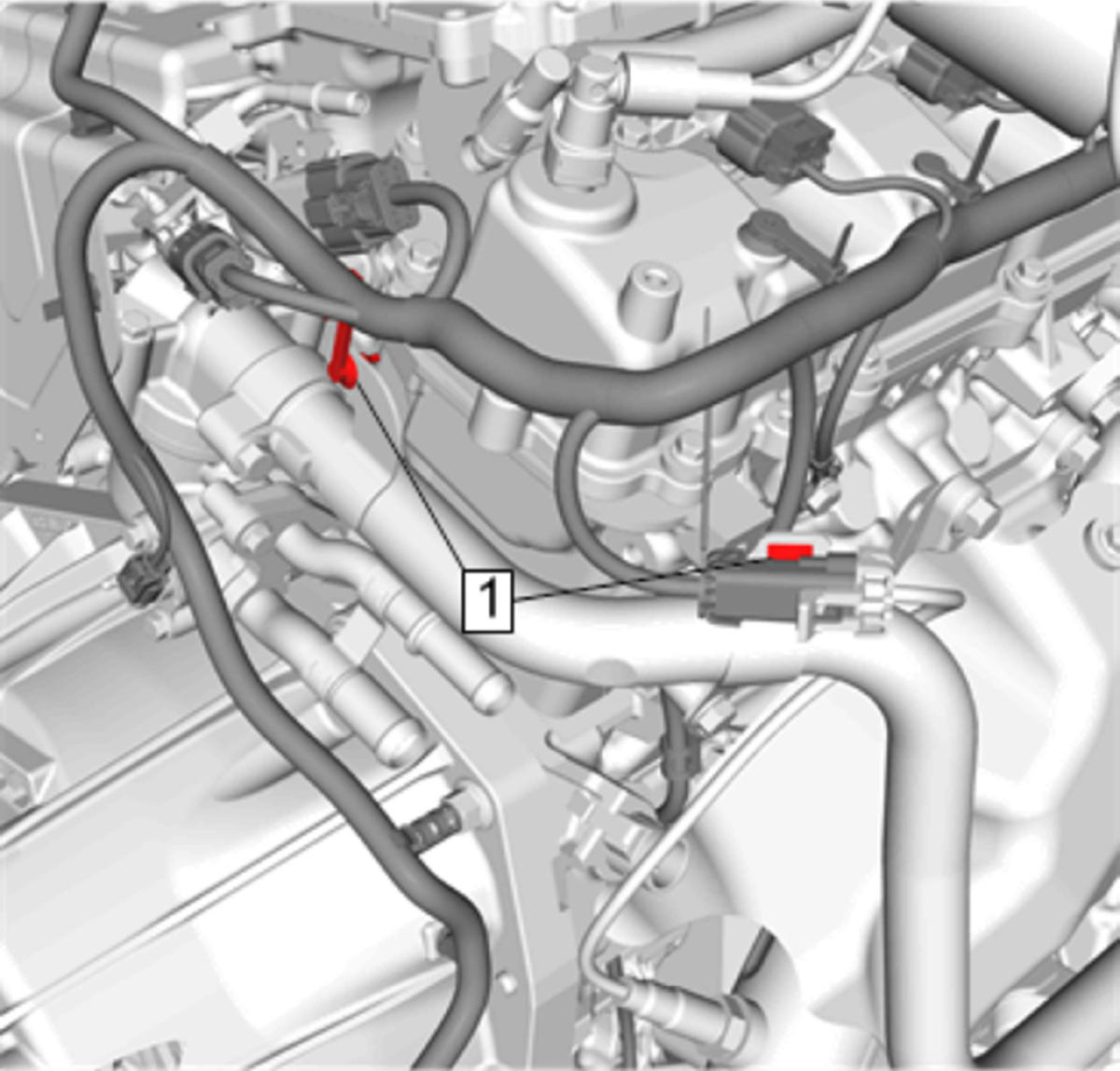

    13. Fig 10: Engine Electrical Wiring Harness Retainers
    GM4278216Courtesy of GENERAL MOTORS COMPANY
  13. Disconnect the engine electrical wiring harness retainers (1) and reposition the harness.
    14. Fig 11: Radiator Outlet Pipe And Bracket
    GM4045035Courtesy of GENERAL MOTORS COMPANY
  14. Remove Radiator Outlet Pipe Bracket Bolt (1)
    15. NOTE:

    Raise or lower engine and position to the left side as necessary.

  15. Remove Radiator Outlet Pipe (3)
  16. DISCARD the O-ring seal. (2)
