Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the sealing surfaces.

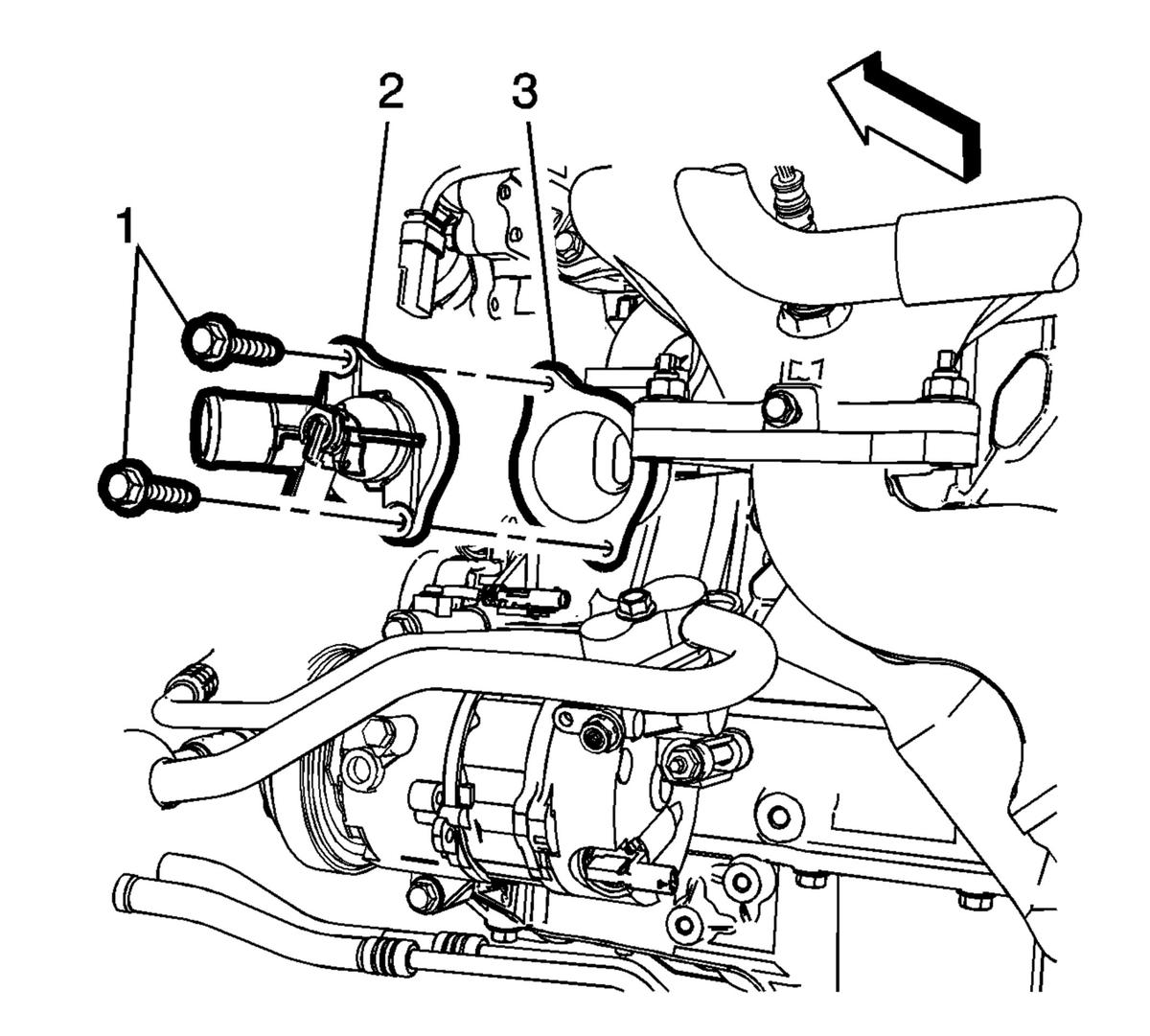

    2. Fig 1: Engine Coolant Thermostat Housing
    GM2816037Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the engine coolant thermostat housing (2) to the water pump housing with a NEW gasket (3) and tighten the fasteners (1) to 10 N.m (89 lb in).

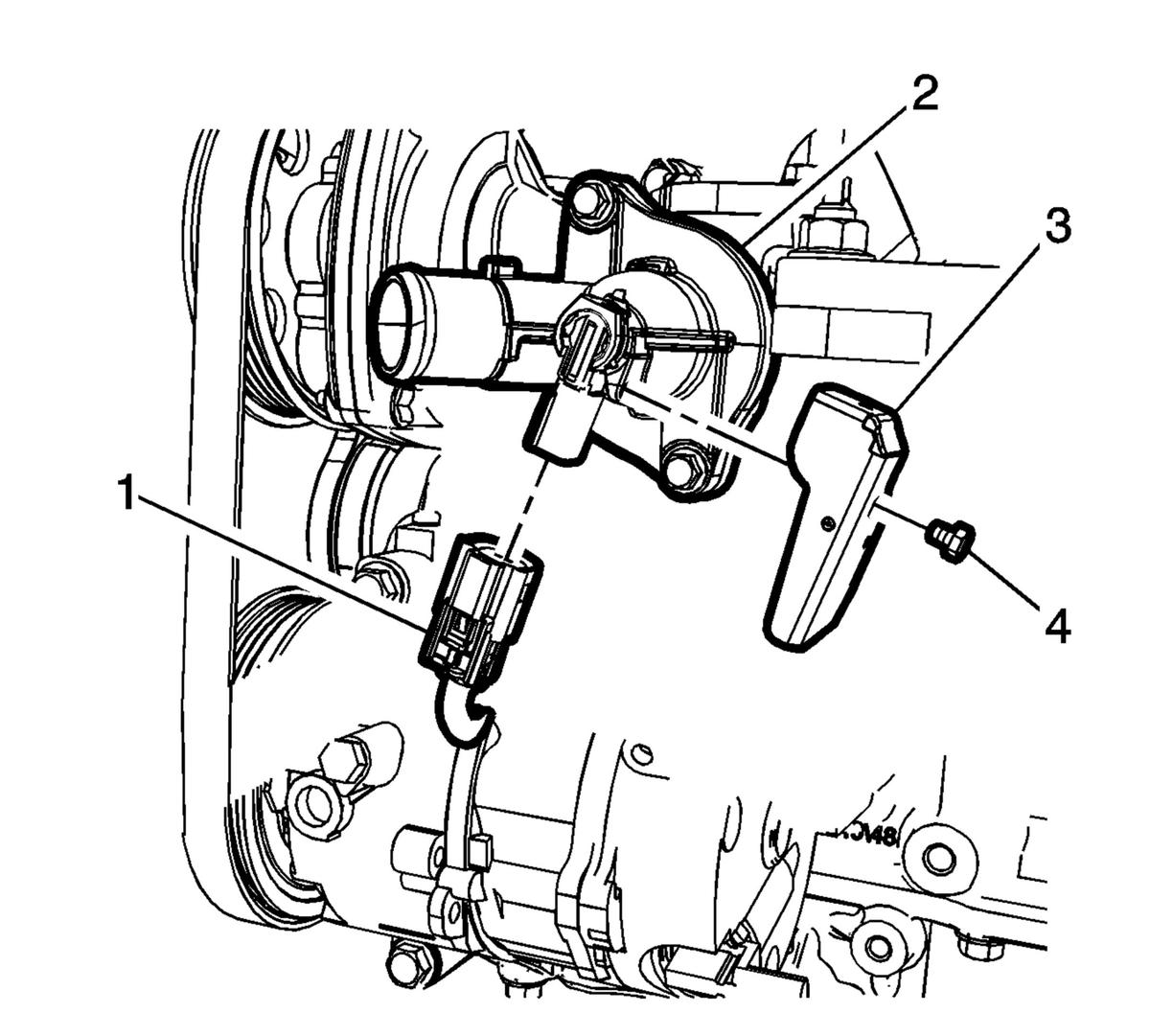

    3. Fig 2: Thermostat Heater Heat Shield
    GM2816038Courtesy of GENERAL MOTORS COMPANY
  3. Connect the thermostat heater connector (1).
  4. Install the thermostat heater shield (3) and tighten the fastener (4) to 5 N.m (44 lb in).

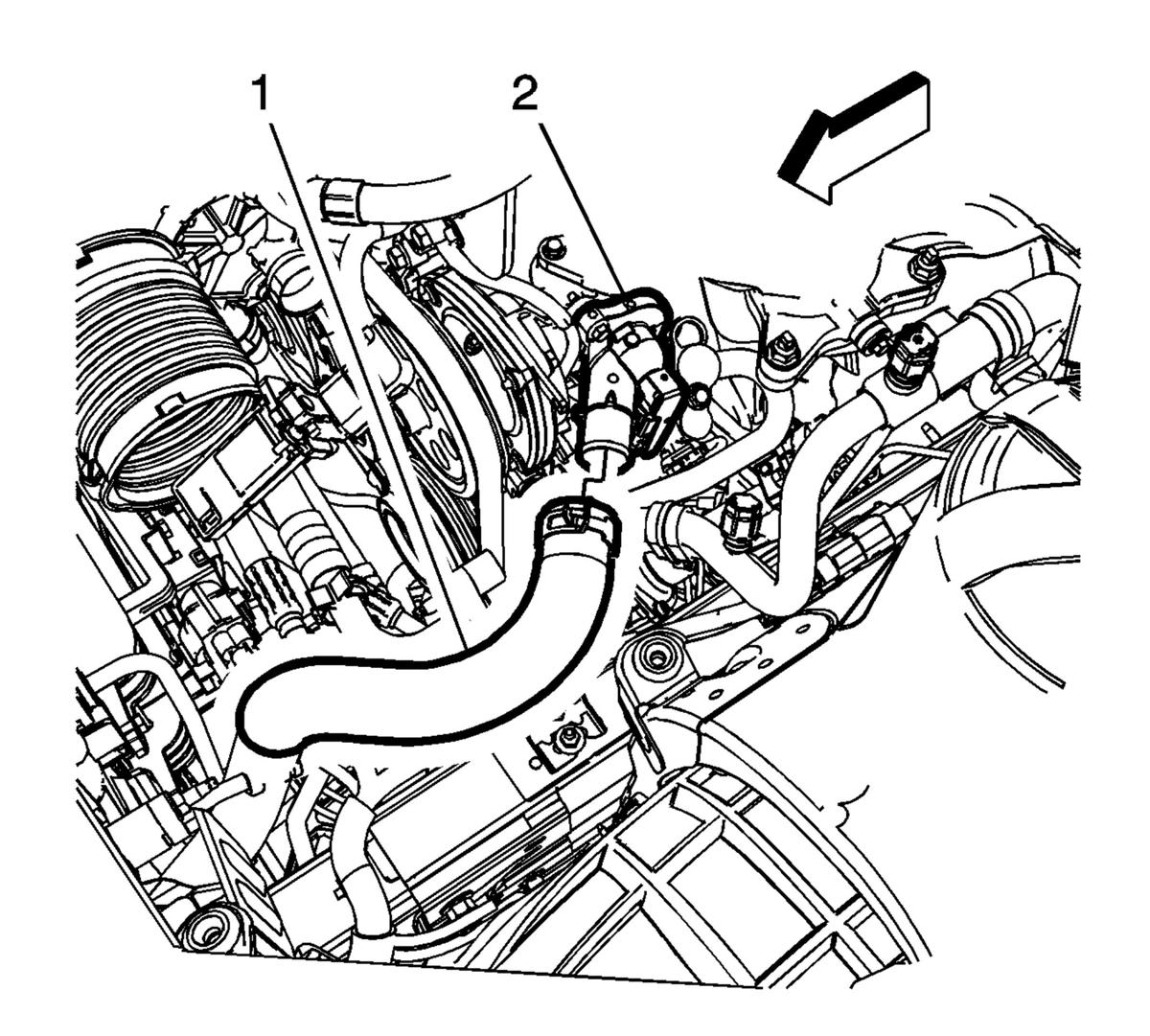

    5. Fig 3: Engine Coolant Thermostat Housing
    GM2816036Courtesy of GENERAL MOTORS COMPANY
  5. Install the radiator outlet hose (1) to the engine coolant thermostat housing (2).
  6. Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LCV) .
  7. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement (LCV) .
  8. Fill the cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716) .
  9. Start the engine and check for coolant leaks.
