Air Cleaner Assembly Replacement (LCV)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

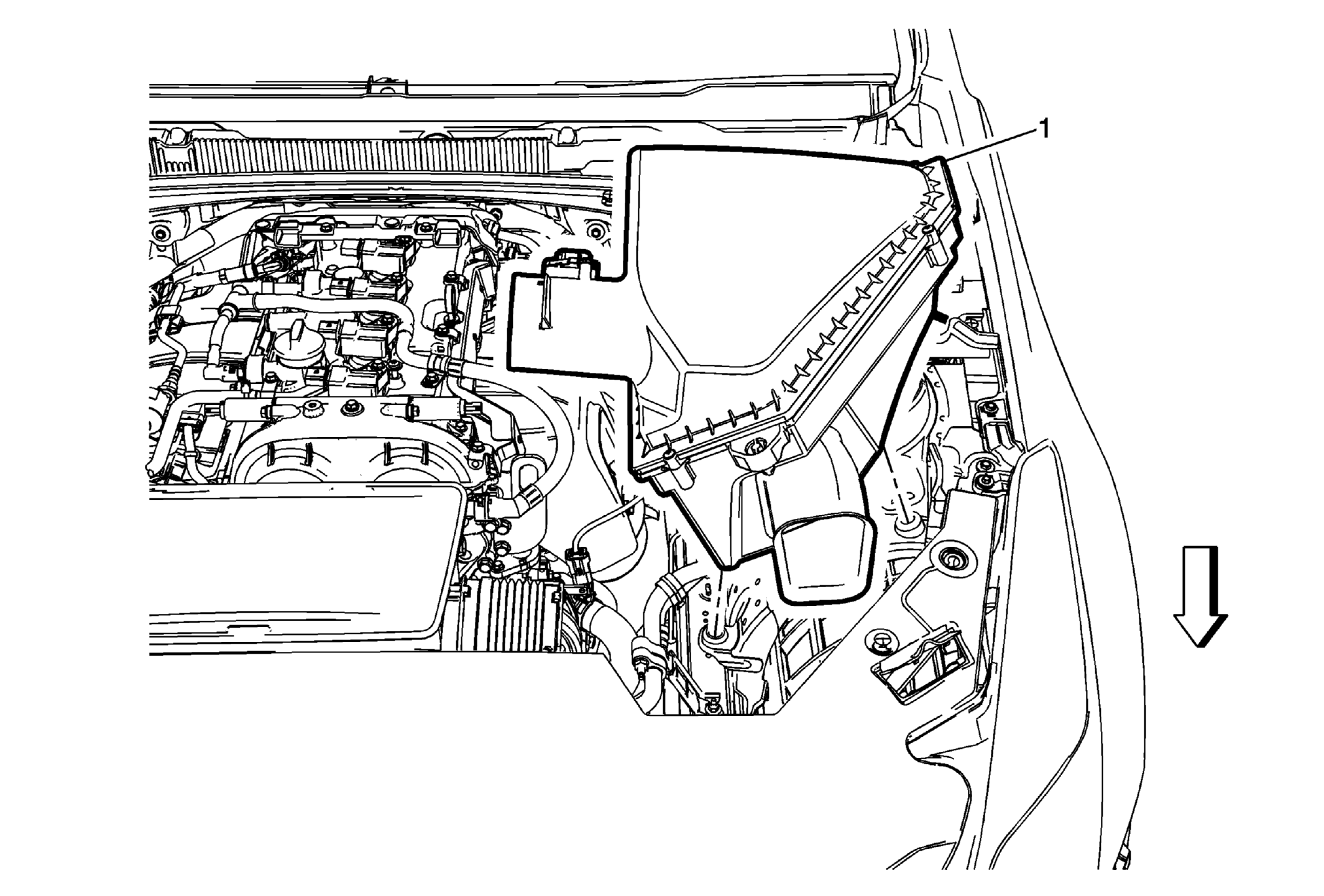

Fig 1: Air Cleaner Assembly (LCV)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LCV) . Disconnect the mass airflow sensor electrical connector from the sensor and the air cleaner assembly.
1	Air Cleaner Assembly Procedure Remove the air cleaner housing from the retainers. Transfer parts as necessary.

Callout

Component Name

Preliminary Procedure

Disconnect the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LCV) .
Disconnect the mass airflow sensor electrical connector from the sensor and the air cleaner assembly.

Air Cleaner Assembly

Procedure

Remove the air cleaner housing from the retainers.
Transfer parts as necessary.
