Manifold Absolute Pressure Sensor Replacement (Intake Manifold LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

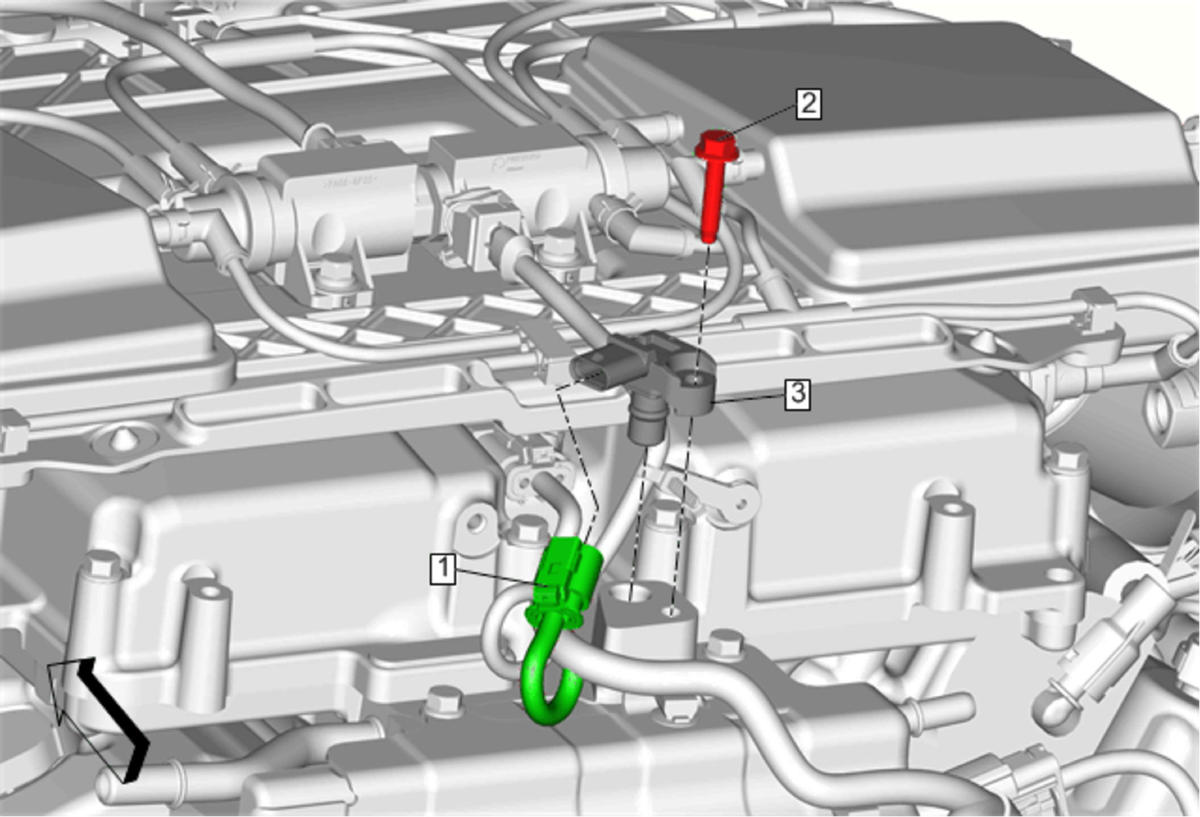

Fig 1: Manifold Absolute Pressure Sensor (Intake Manifold LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4) Remove Plenum Front Panel. Refer to Plenum Front Panel Replacement
1	Manifold Absolute Pressure Sensor Electrical Connector
2	Manifold Absolute Pressure Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
3	Manifold Absolute Pressure Sensor Procedure Replace the O-ring seal.
