Removal Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove Hood. Refer to Hood Replacement (ATS-V)
  2. Remove Plenum Front Panel. Refer to Plenum Front Panel Replacement

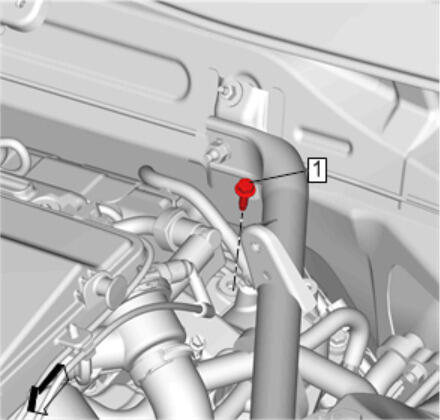

    3. Fig 1: Fuel Pipe Shield Fastener
    GM4044046Courtesy of GENERAL MOTORS COMPANY
  3. Remove Fuel Pipe Shield Fastener (1)

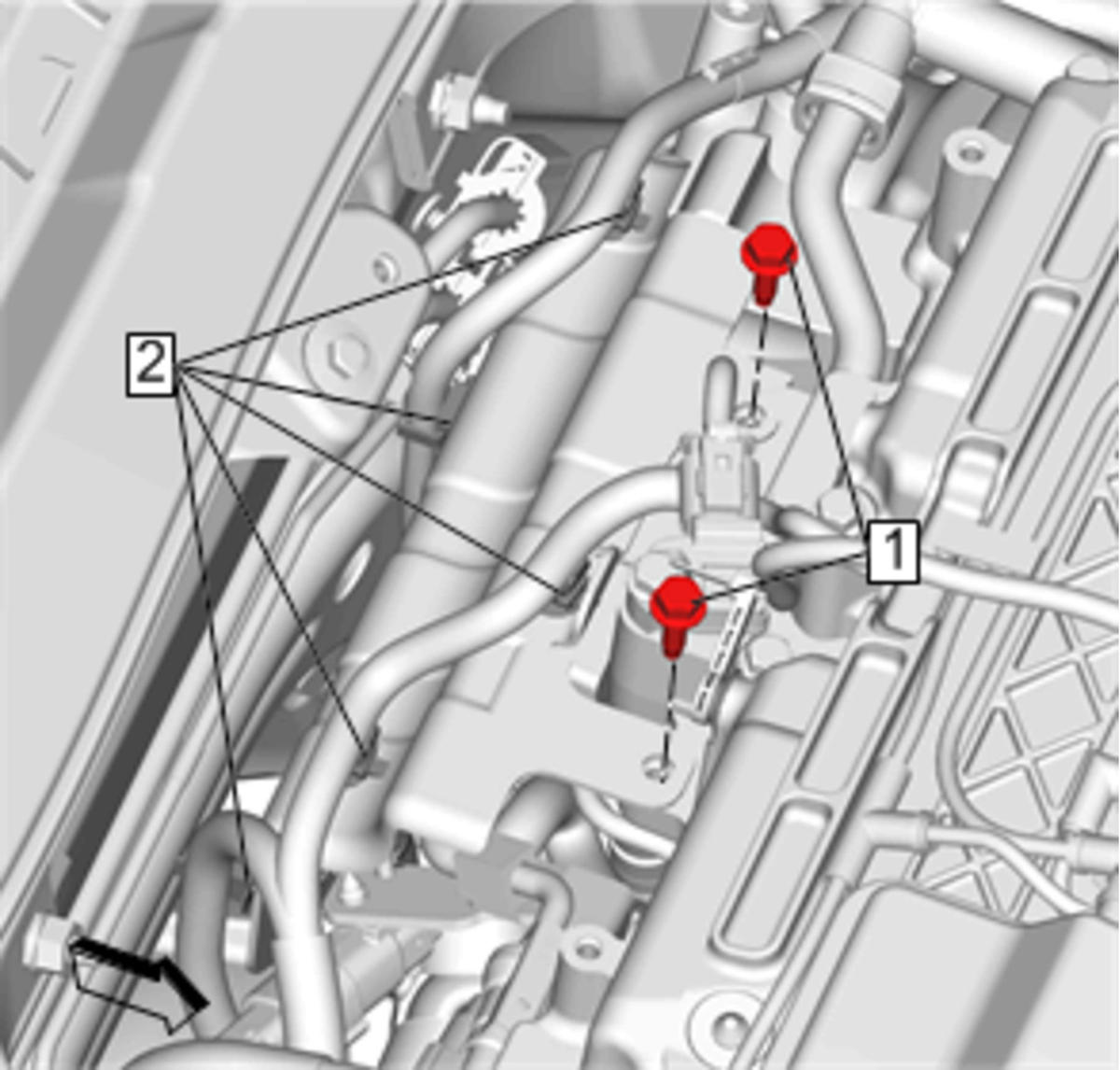

    4. Fig 2: Fuel Pipe Shield Fasteners And Retainers
    GM4044061Courtesy of GENERAL MOTORS COMPANY
  4. Remove Fuel Pipe Shield Fasteners (1) (Qty: 2)
  5. Unclip Retainers (2) (Qty: 5)

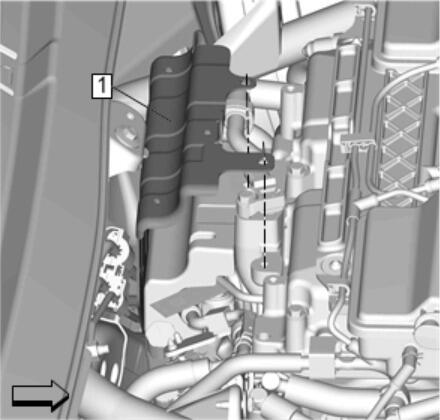

    6. Fig 3: Fuel Pipe Shield
    GM4044075Courtesy of GENERAL MOTORS COMPANY
  6. Remove Fuel Pipe Shield (1)
