Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

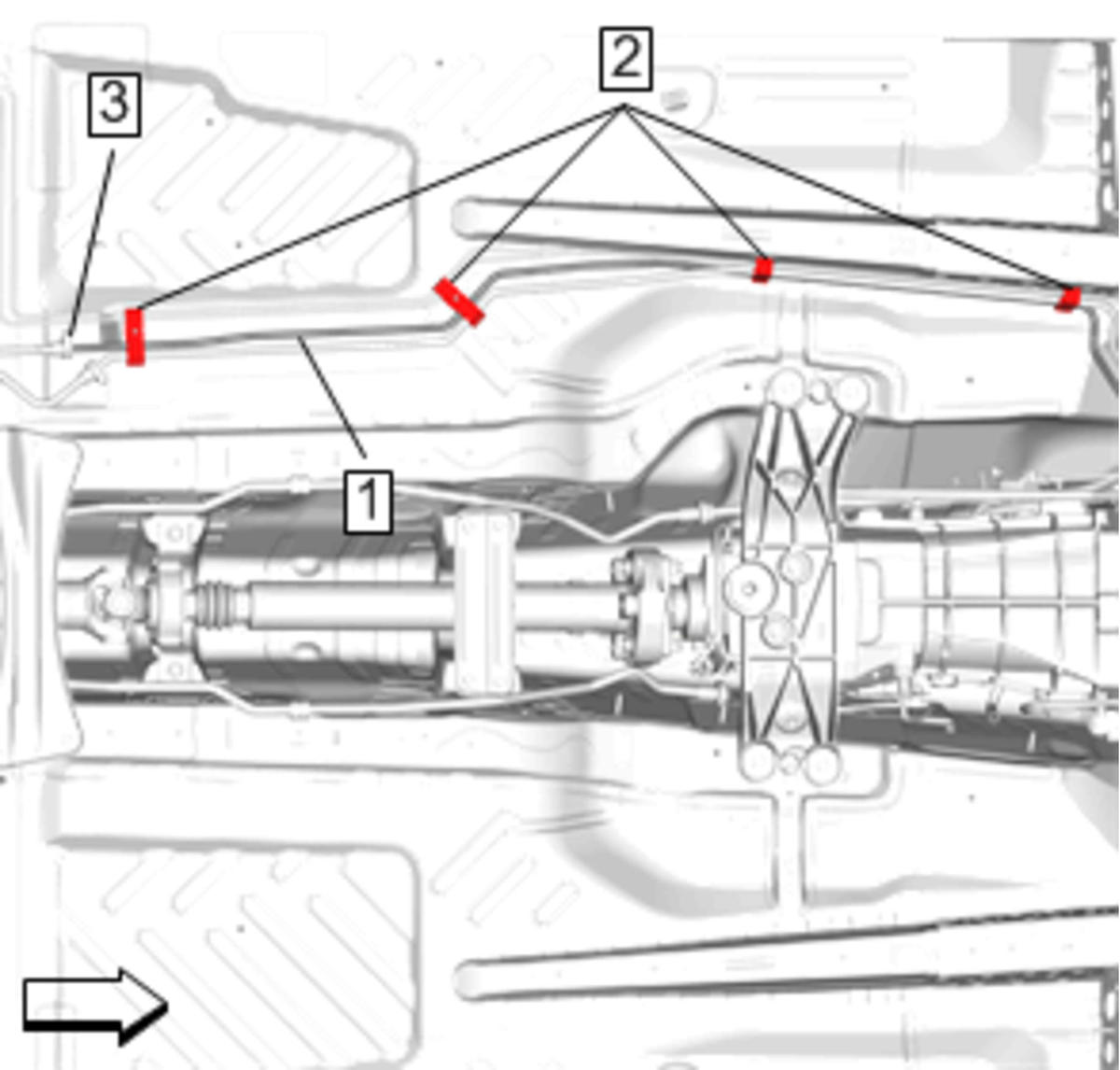

    Fig 1: Fuel Feed Pipe, Fuel Pump Fuel Feed Hose And Retainers
    GM4020048Courtesy of GENERAL MOTORS COMPANY
  1. Install Fuel Feed Pipe (1) @ Retainer (2).
  2. Connect Fuel Feed Pipe (1) @ Fuel Pump Fuel Feed Hose (3). Refer to Plastic Collar Quick Connect Fitting Service

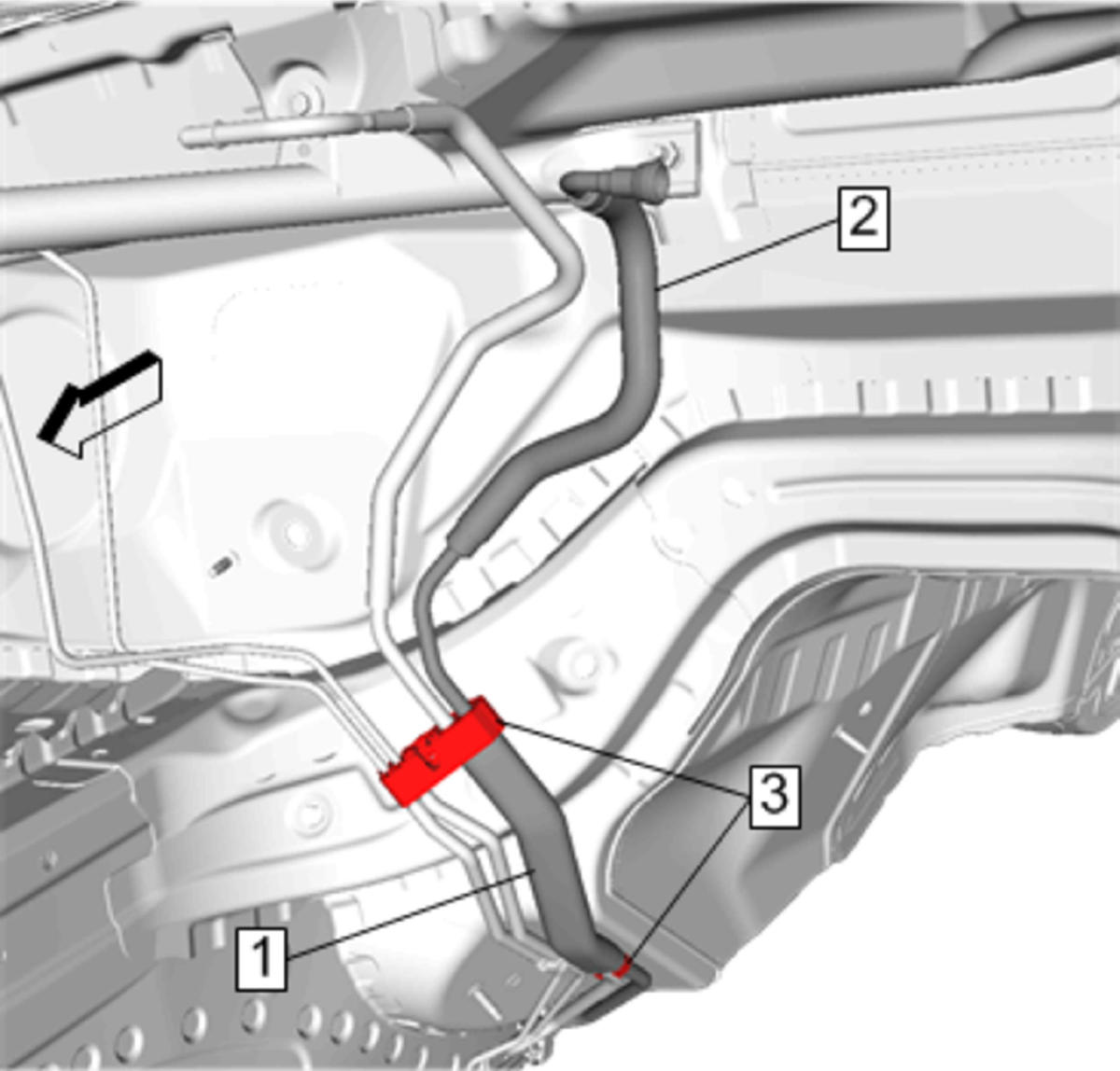

    3. Fig 2: Heat Sleeve, Fuel Feed Pipe And Retainer
    GM4295689Courtesy of GENERAL MOTORS COMPANY
  3. Install Fuel Feed Pipe (2) @ Retainer (3) (Qty: 2)
  4. Install Heat Sleeve (1)
  5. Install the right side catalytic converter and exhaust. Refer to Catalytic Converter Replacement - Right Side (LF4)
  6. Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right)
  7. Install Underbody Front Air Deflector - Right Side. Refer to Underbody Front Air Deflector Replacement - Right Side
  8. Lower the vehicle.

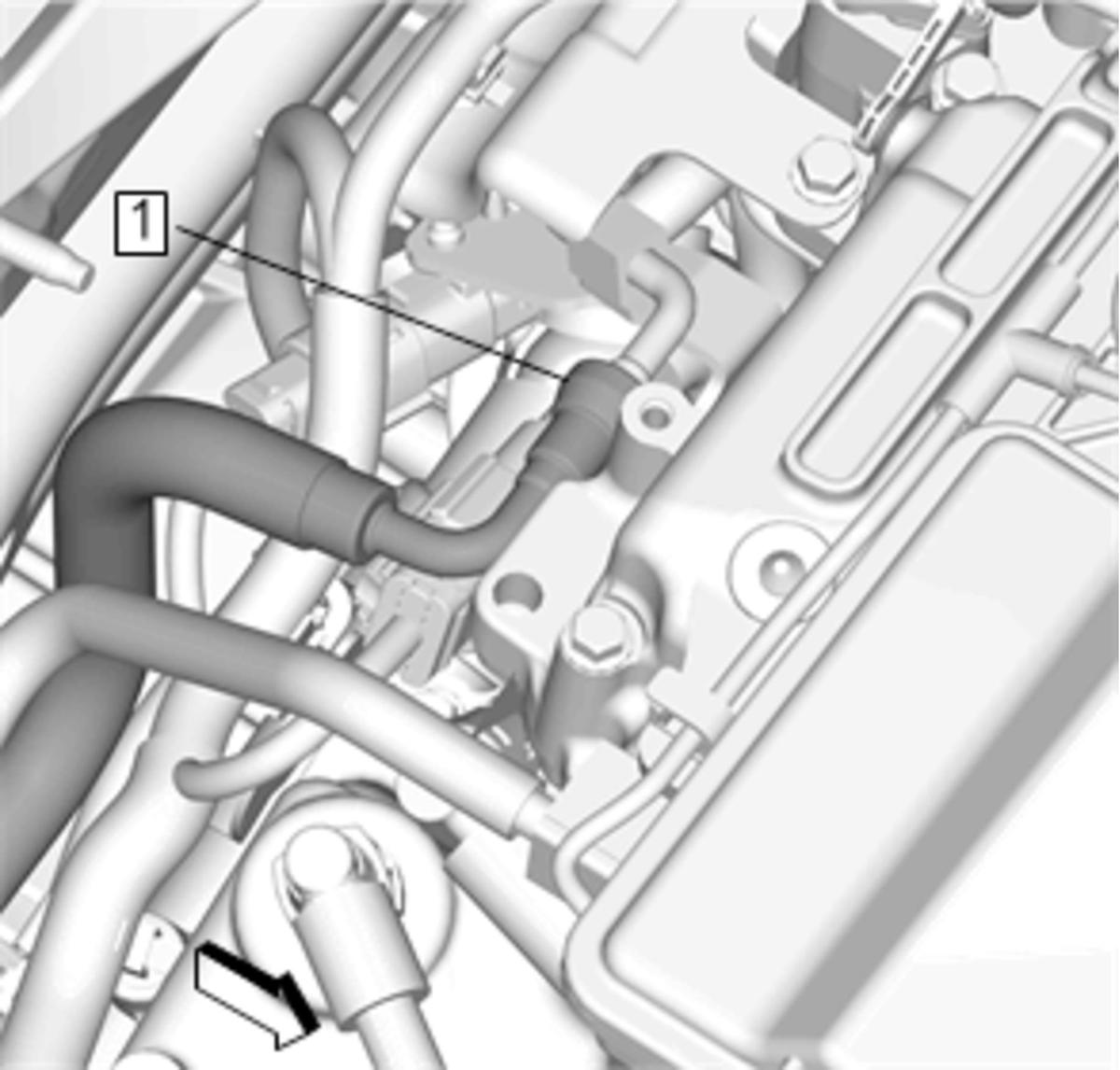

    9. Fig 3: Fuel Feed Pipe
    GM4020004Courtesy of GENERAL MOTORS COMPANY
  9. Connect Fuel Feed Pipe (1). Refer to Metal Collar Quick Connect Fitting Service
  10. Install Heater Outlet Hose. Refer to Heater Outlet Hose Replacement (LF4) .
  11. Install Heater Inlet Hose. Refer to Heater Inlet Hose Replacement (LF4) .
  12. Install Front End Sheet Metal Diagonal Brace - Right Side. Refer to Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS-V)
  13. Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4) .
