Installation Procedure
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

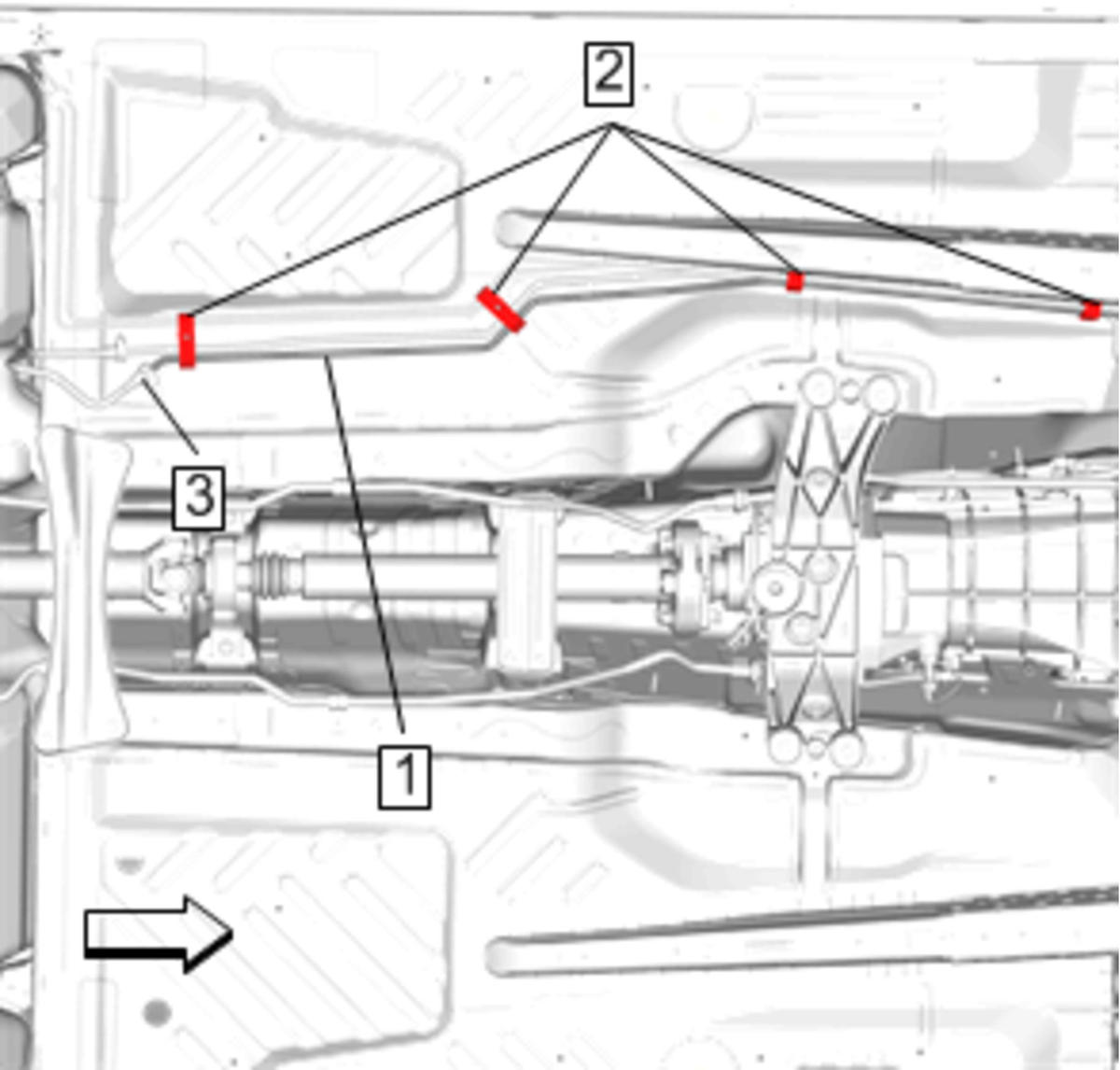

- Install Evaporative Emission Pipe (1) @ Retainers (2) (Qty: 4)
- Connect Evaporative Emission Pipe (1) @ Fuel Tank Vent Valve Hose (3). Refer to Plastic Collar Quick Connect Fitting Service

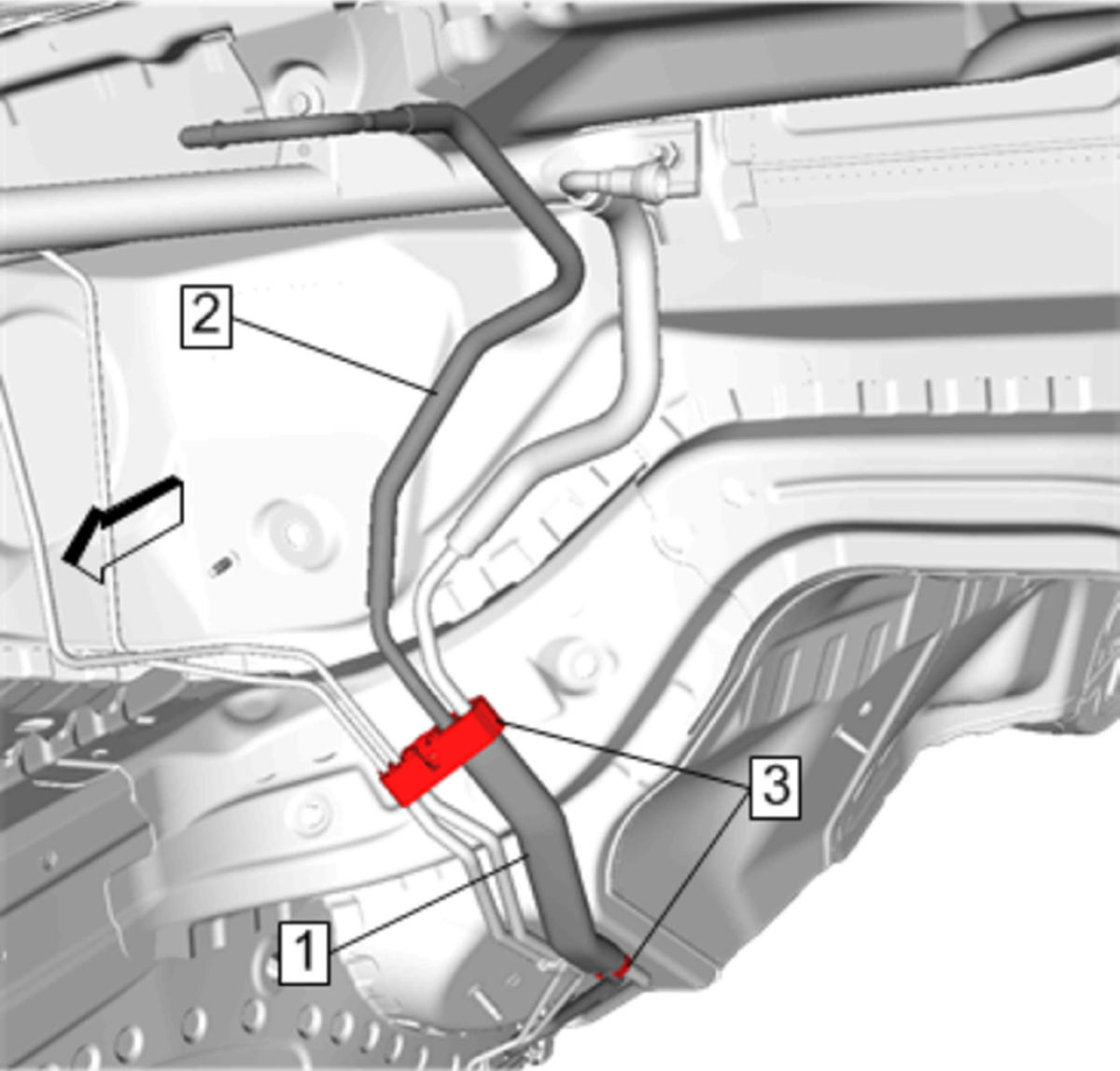

- Install Evaporative Emission Pipe (2) @ Retainers (3) (Qty: 2)
- Install Heat Sleeve (1)
- Install the right side catalytic converter and exhaust. Refer to Catalytic Converter Replacement - Right Side (LF4)
- Install the front body exhaust heat shield right side. Refer to Front Body Exhaust Heat Shield Replacement (Right)
- Install Underbody Front Air Deflector - Right Side. Refer to Underbody Front Air Deflector Replacement - Right Side
- Lower the vehicle.

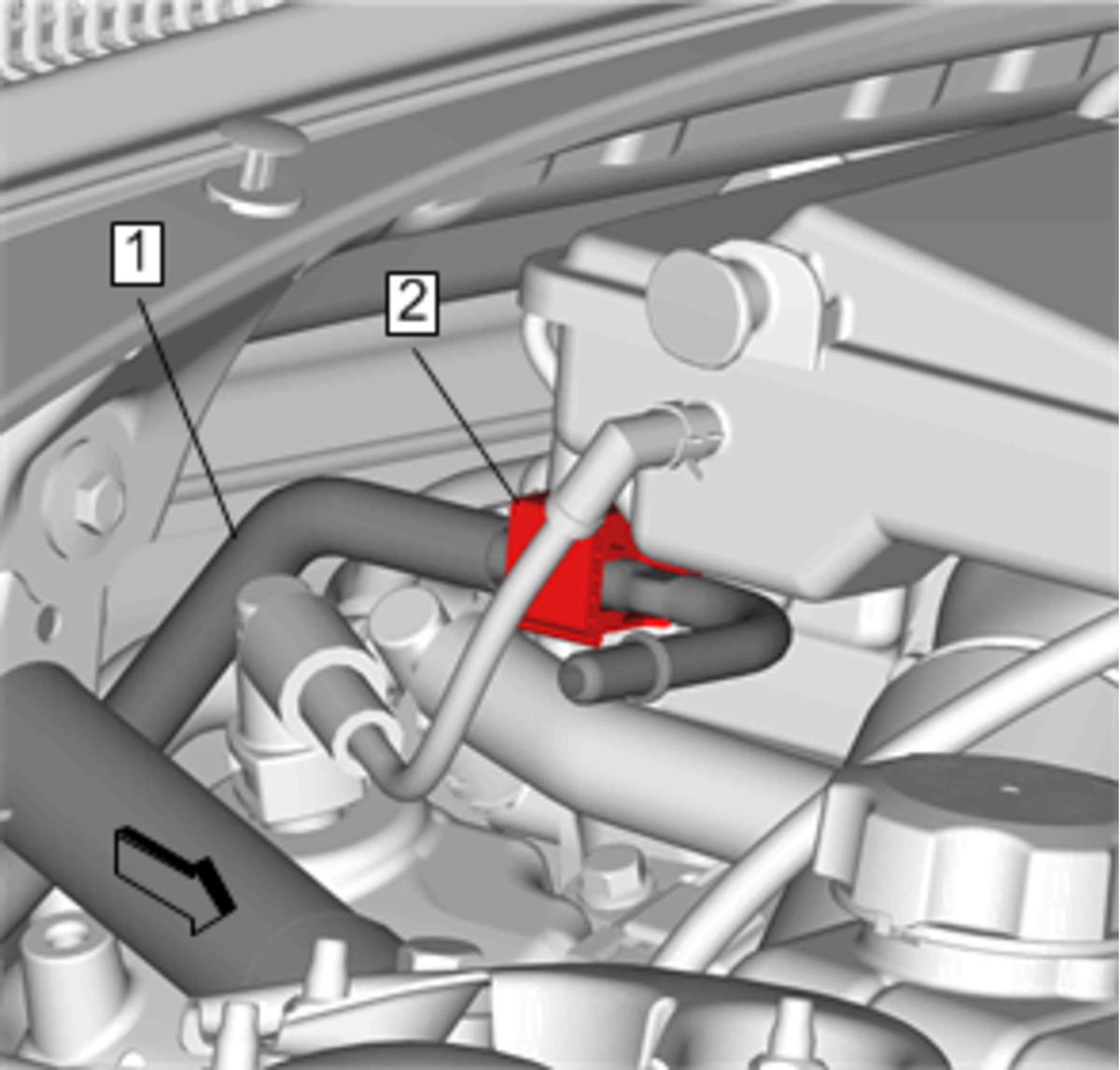

- Install Evaporative Emission Pipe (1) @ Retainer (2)
- Install Heater Outlet Hose. Refer to Heater Outlet Hose Replacement (LF4)
- Install Heater Inlet Hose. Refer to Heater Inlet Hose Replacement (LF4)
- Install Front End Sheet Metal Diagonal Brace - Right Side. Refer to Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS-V)
- Install Evaporative Emission Canister Purge Tube. Refer to Evaporative Emission Canister Purge Tube Replacement (LF4)
- Install Intake Manifold Cover. Refer to Intake Manifold Cover Replacement (LF4)
