Engine Support Fixture (LF4)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

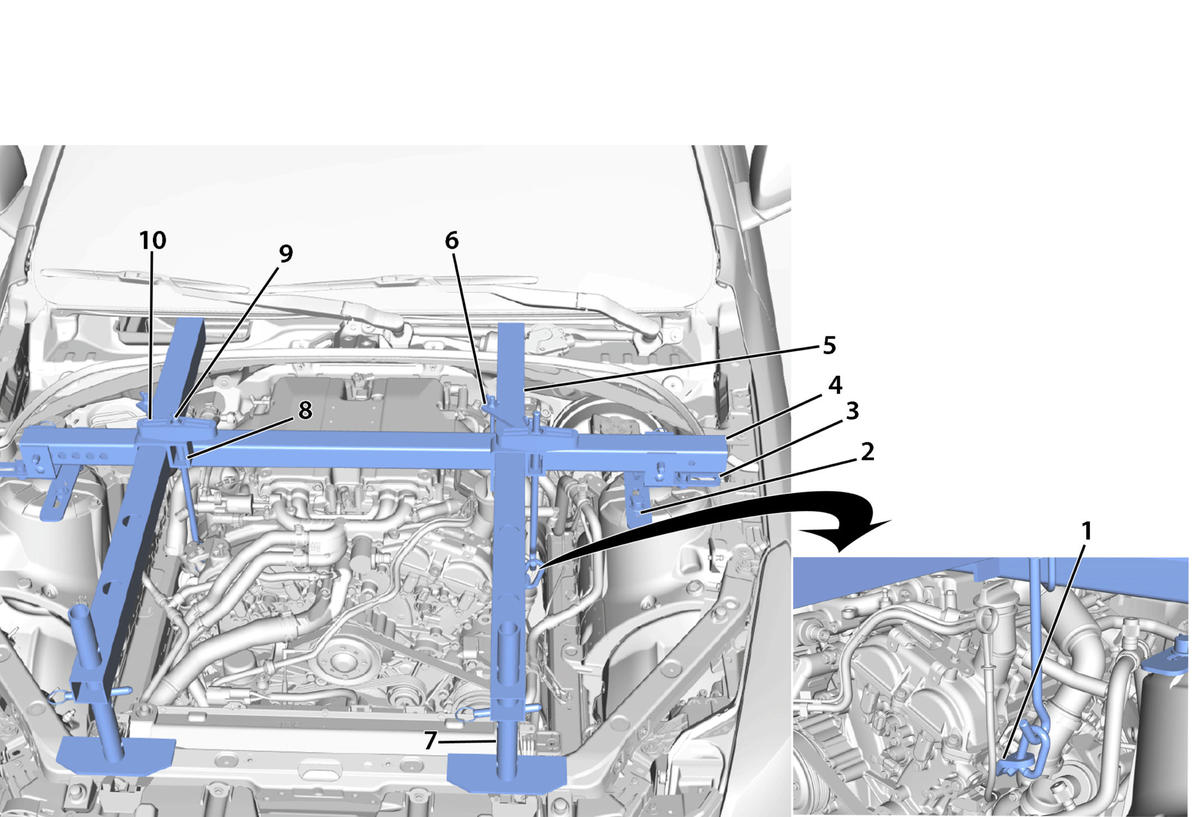

Fig 1: Engine Support Fixture (LF4)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Compartment Front Sight Shield Replacement (ATS-V) . Front End Sheet Metal Diagonal Brace Replacement - Left Side (ATS-V) Front End Sheet Metal Diagonal Brace Replacement - Right Side (ATS-V) Radiator Surge Tank Replacement (LF4, LGX) . Air Cleaner Outlet Rear Duct Replacement (LF4) . Air Cleaner Outlet Duct Replacement (LF4) . Special Tools EN-36857 Engine Lift Bracket EN-46114 Engine Lift Bracket J-28467-5A Engine Support Beam Adapters J-28467-33 Strut Tower To Support Beam Adapters J-28467-B Main Support Beam J-36462-1A Radiator Tube Shelf Assembly EN-28467-1A Cross Bracket EN-28467-4A Front Support Assembly J-28467-6A Bracket Assembly EN-28467-8A Hook Assembly EN-28467-34 Lift Hook Wing Nut and Washer For equivalent regional tools. Refer to Special Tools (LF4)
1	EN-36857 Engine Lift Bracket (Qty:2) Procedure CAUTION: Refer to Fastener Caution . Use a grade 10.9 bolt to install a EN-36857 bracket to the right and left cylinder head in the location shown. Tighten the bolt to 65 N.m (48 lb ft).
2	J-28467-33 Strut Tower To Support Beam Adapters (Qty:6) Procedure Thread the strut tower adapters to the strut towers.
3	J-28467-5A Engine Support Beam Adapters (Qty:2) Procedure Place the engine support beam adapters on the strut towers and secure using wing nuts.
4	J-28467-B Main Support Beam Procedure Install main support beam through engine support beam adapters and pin in place.
5	J-36462-1A Radiator Tube Shelf Assembly (Qty: 2) Procedure Place radiator shelf tubes on top of main support beam.
6	EN-28467-1A Cross Bracket (Qty: 2) Procedure Loosely install cross bracket to retain radiator shelf tube to main support beam. Tighten cross bracket after front support assembly is in place.
7	EN-28467-4A Front Support Assembly (Qty: 2) Procedure Place front support assembly through radiator tube shelf and pin at proper height.
8	J-28467-6A Bracket Assembly (Qty: 2)
9	EN-28467-8A Hook Assembly (Qty: 2)
10	EN-28467-34 Lift Hook Wing Nut and Washer (Qty: 2)
