Installation Procedure

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

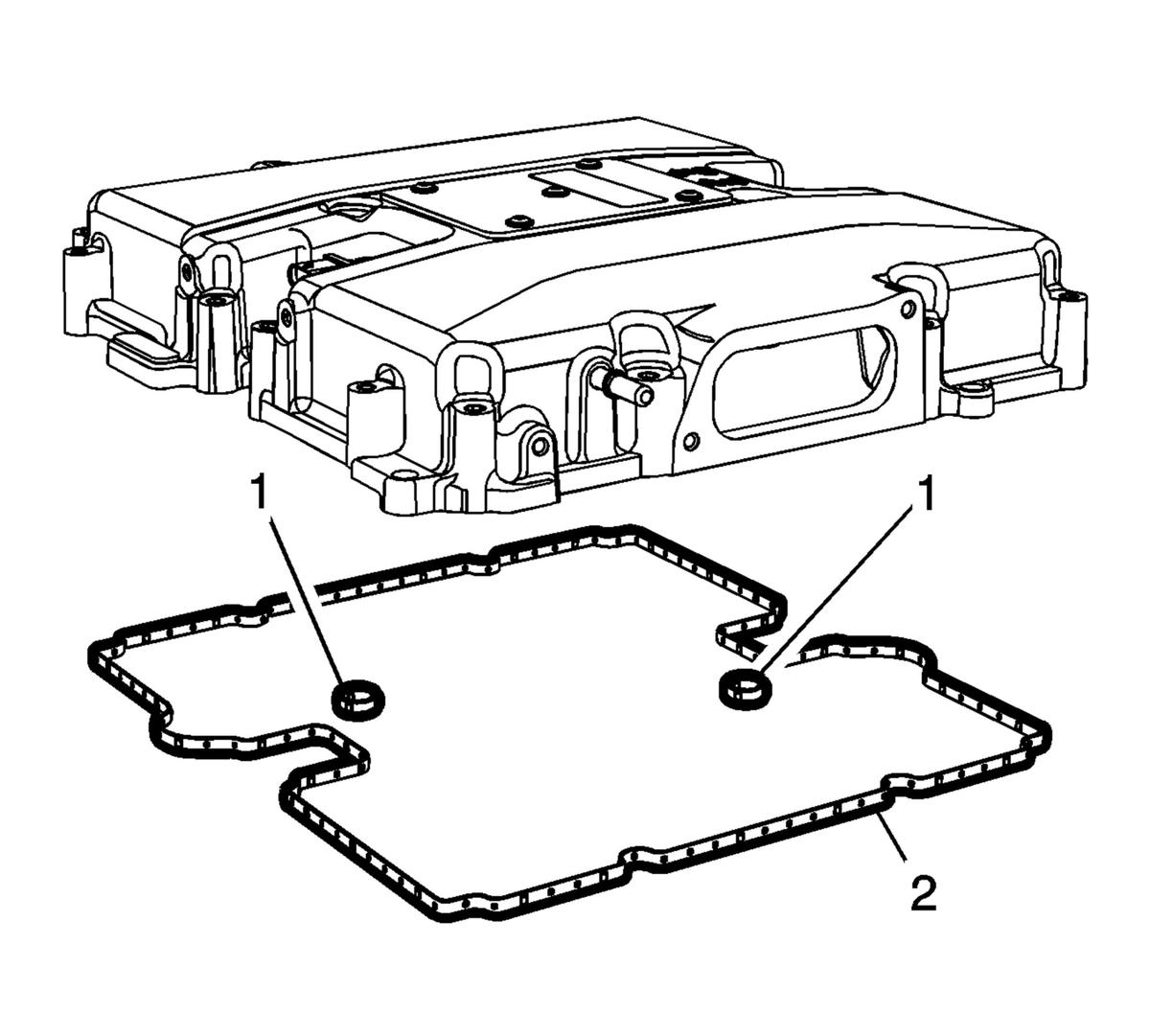

Fig 1: Charge Air Cooler Gaskets

Courtesy of GENERAL MOTORS COMPANY

Install NEW gaskets (1 and 2) on the charge air cooler cover.

CAUTION:

Refer to Fastener Caution .

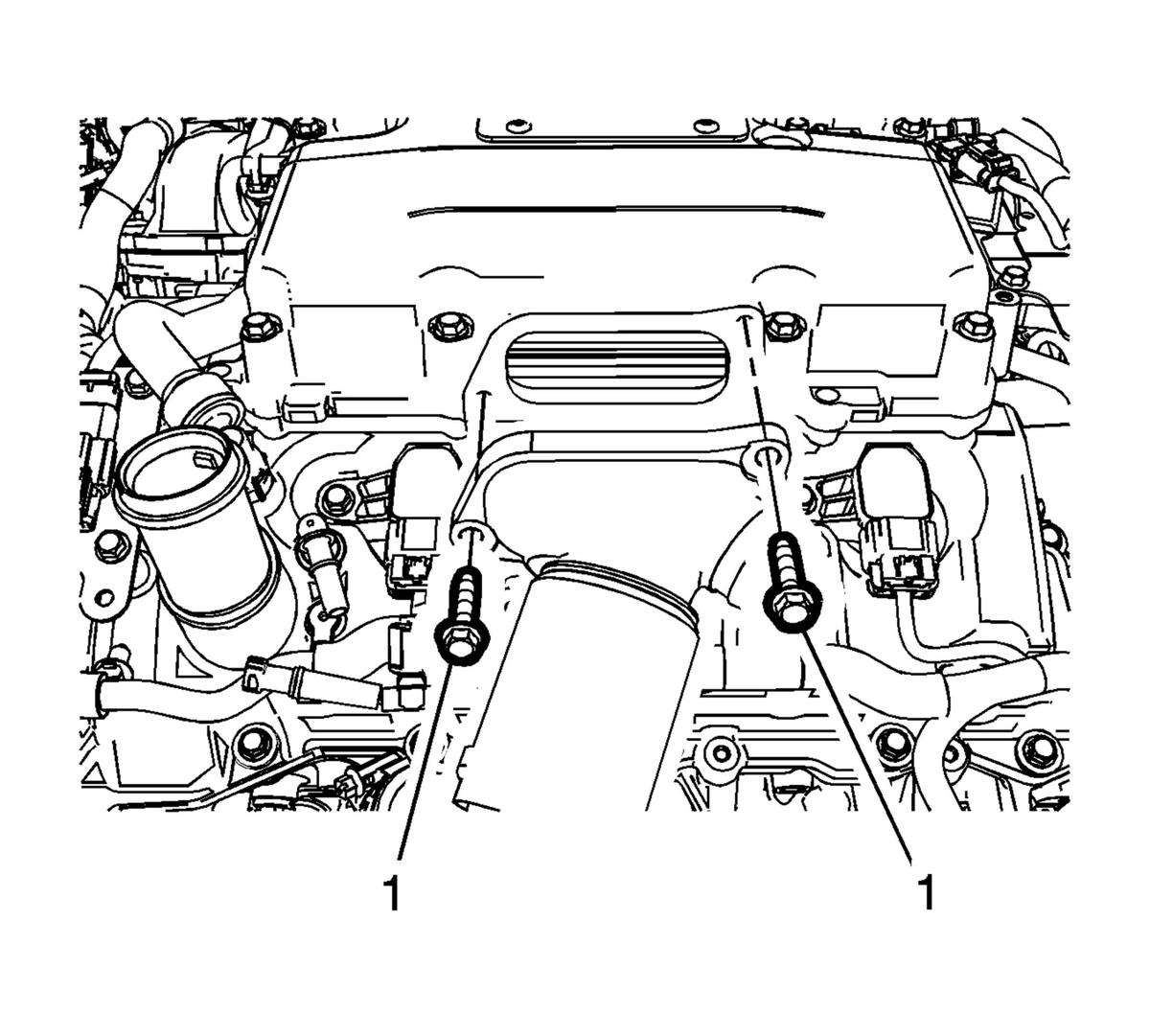

Fig 2: Charge Air Cooler Cover

Courtesy of GENERAL MOTORS COMPANY

Install the charge air cooler cover (2) and the charge air cooler bolts (1). Hand tighten the bolts.

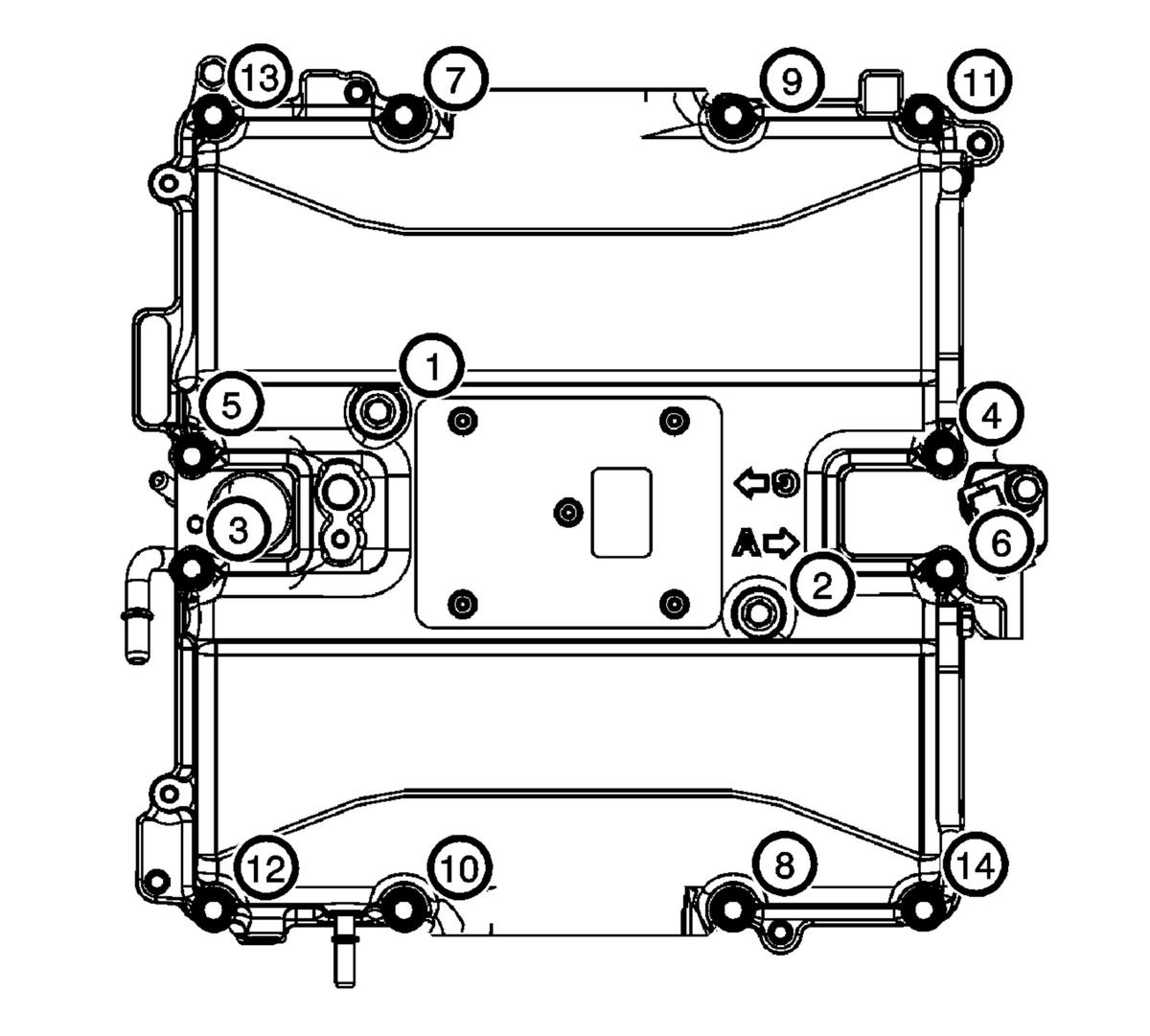

Fig 3: Charge Air Cooler Bolts

Courtesy of GENERAL MOTORS COMPANY

NOTE:

Tighten the charge air cooler bolts in the sequence shown.

Tighten the charge air cooler bolts (1) to 10 N.m (89 lb in).

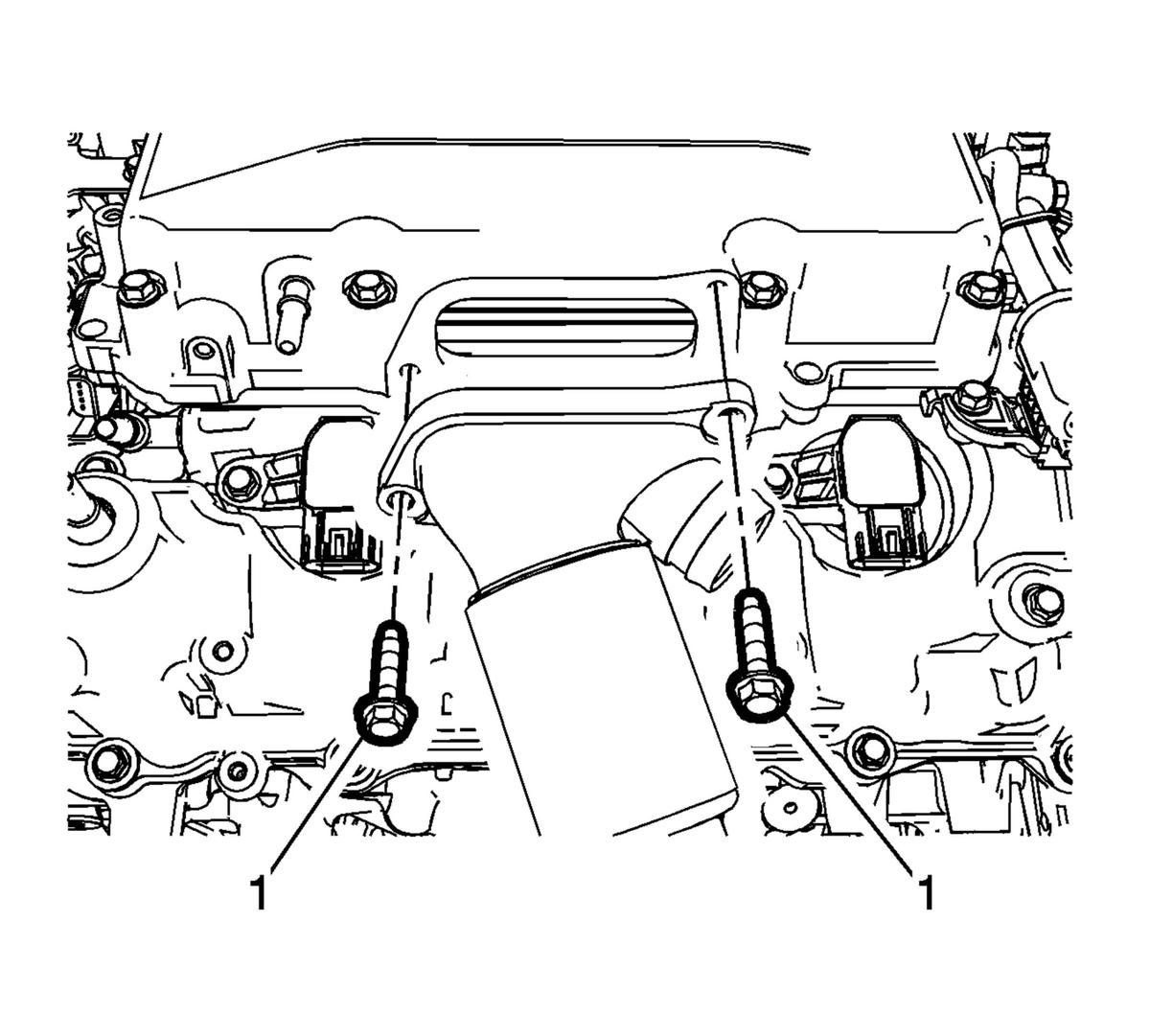

Fig 4: Charge Air Cooler Inlet Air Tube Bolts

Courtesy of GENERAL MOTORS COMPANY

Position the right charge air cooler inlet air tube and install the bolts (1). Refer to Charge Air Cooler Inlet Pipe Replacement - Right Side .

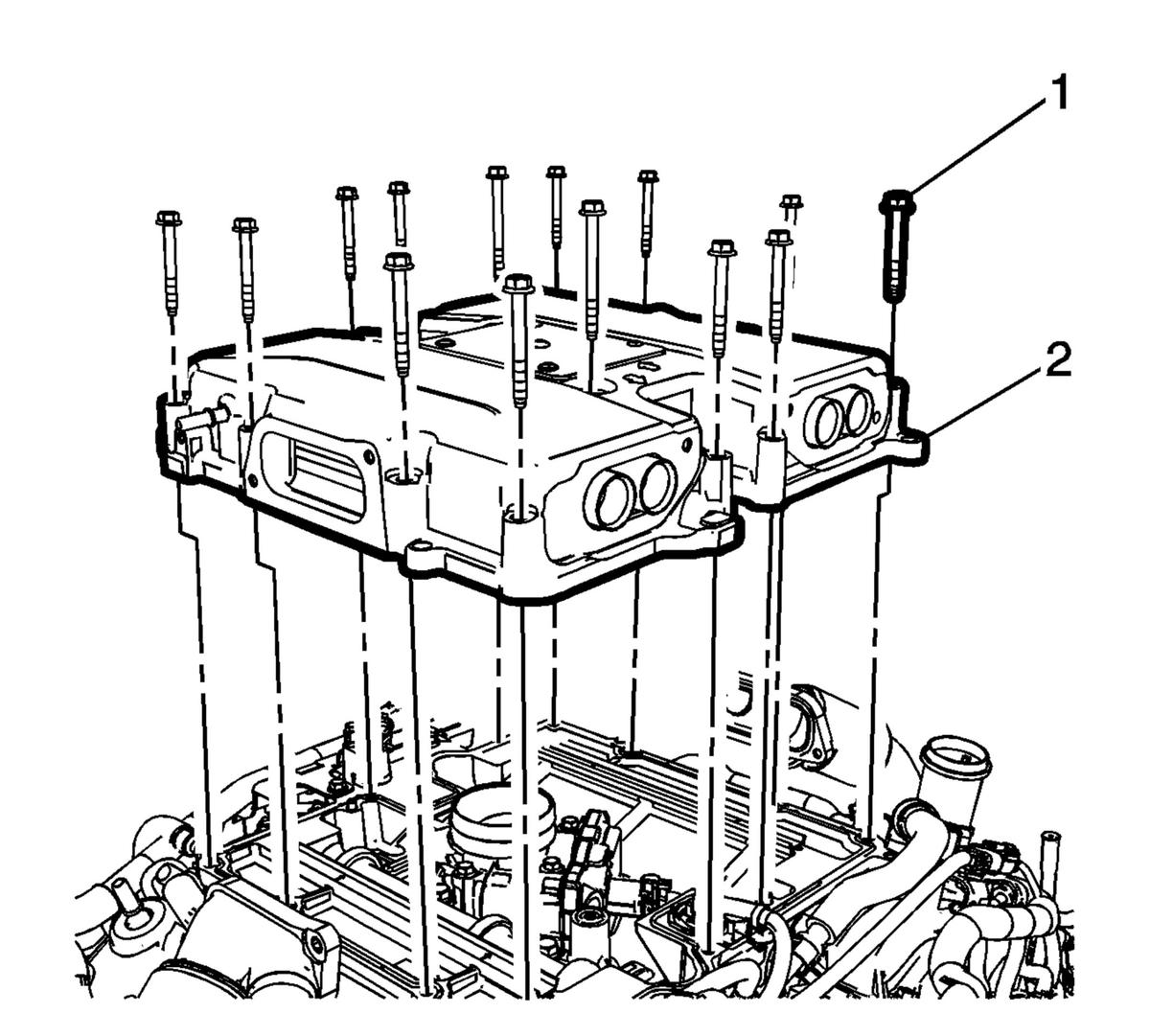

Fig 5: Charge Air Cooler Inlet Air Tube Bolts

Courtesy of GENERAL MOTORS COMPANY

Position the left charge air cooler inlet air tube and install the bolts (1). Refer to Charge Air Cooler Inlet Pipe Replacement - Left Side .

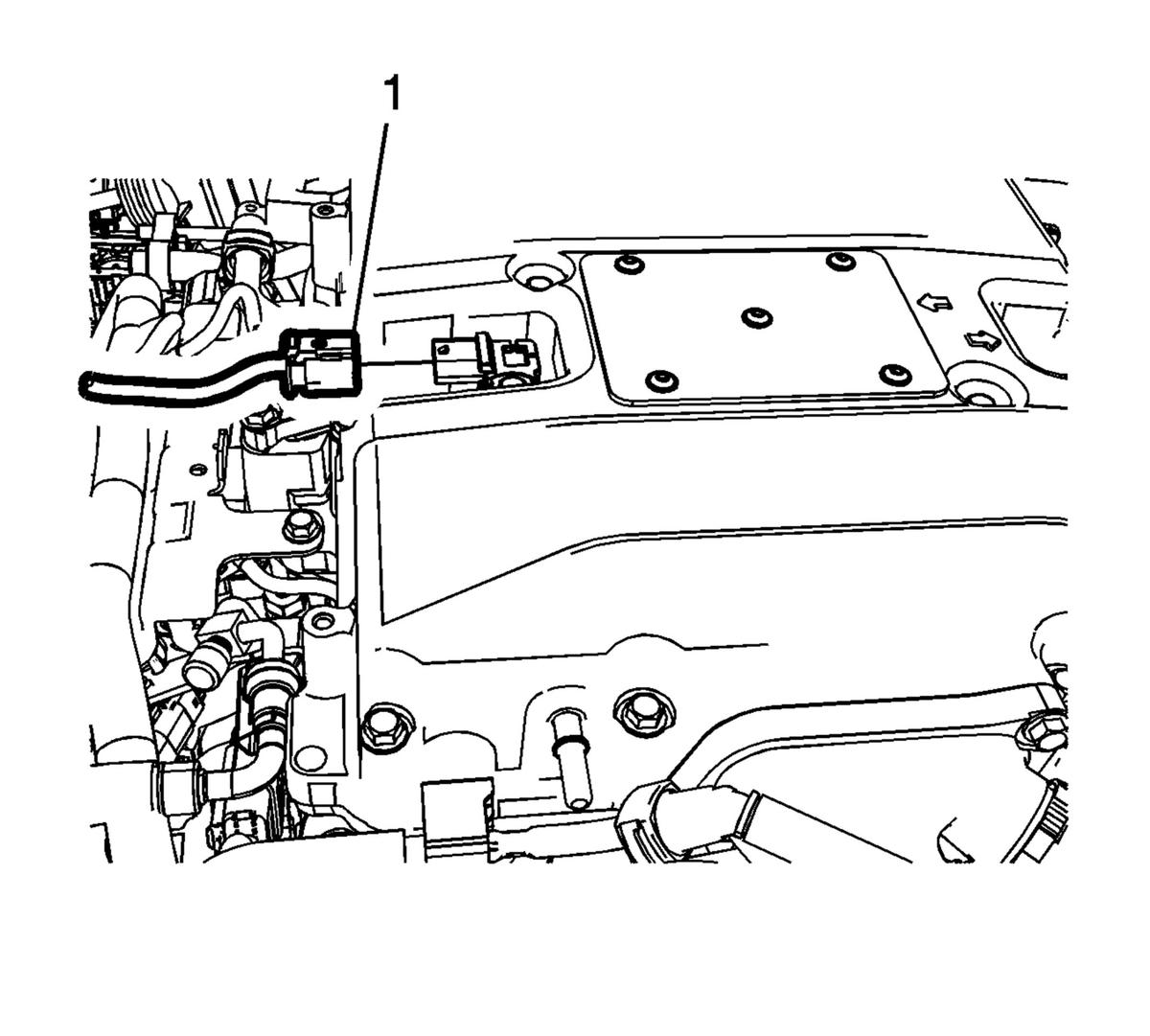

Fig 6: Electrical Connector

Courtesy of GENERAL MOTORS COMPANY

Connect electrical connector (1)

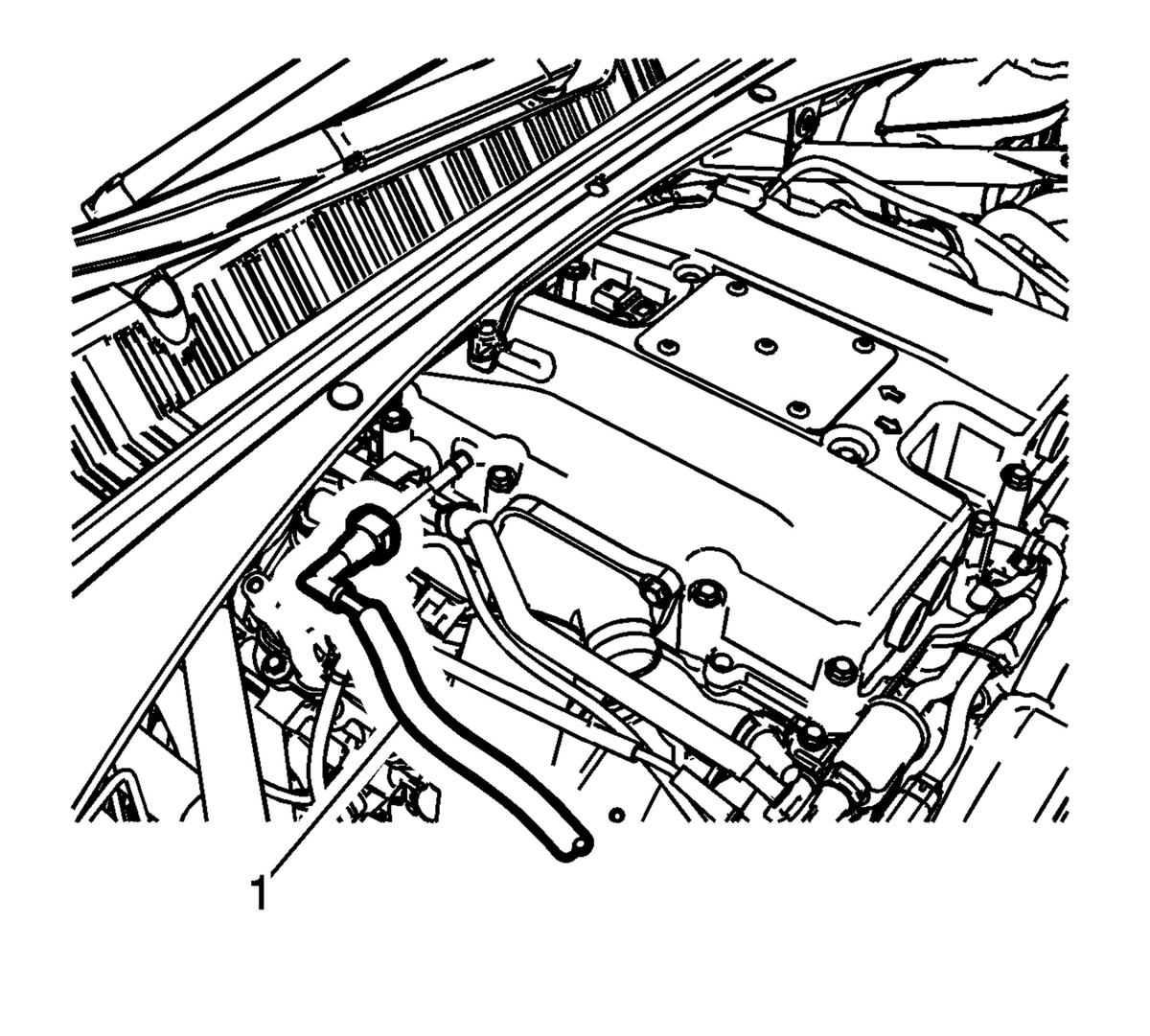

Fig 7: Vacuum Line

Courtesy of GENERAL MOTORS COMPANY

Connect vacuum line (1). Refer to Plastic Collar Quick Connect Fitting Service .
Install the supercharger water manifold. Refer to Supercharger Water Manifold Replacement .
Install the turbocharger wastegate actuator vacuum tank. Refer to Turbocharger Wastegate Actuator Vacuum Tank Replacement .
