Instrument Panel Extension Replacement

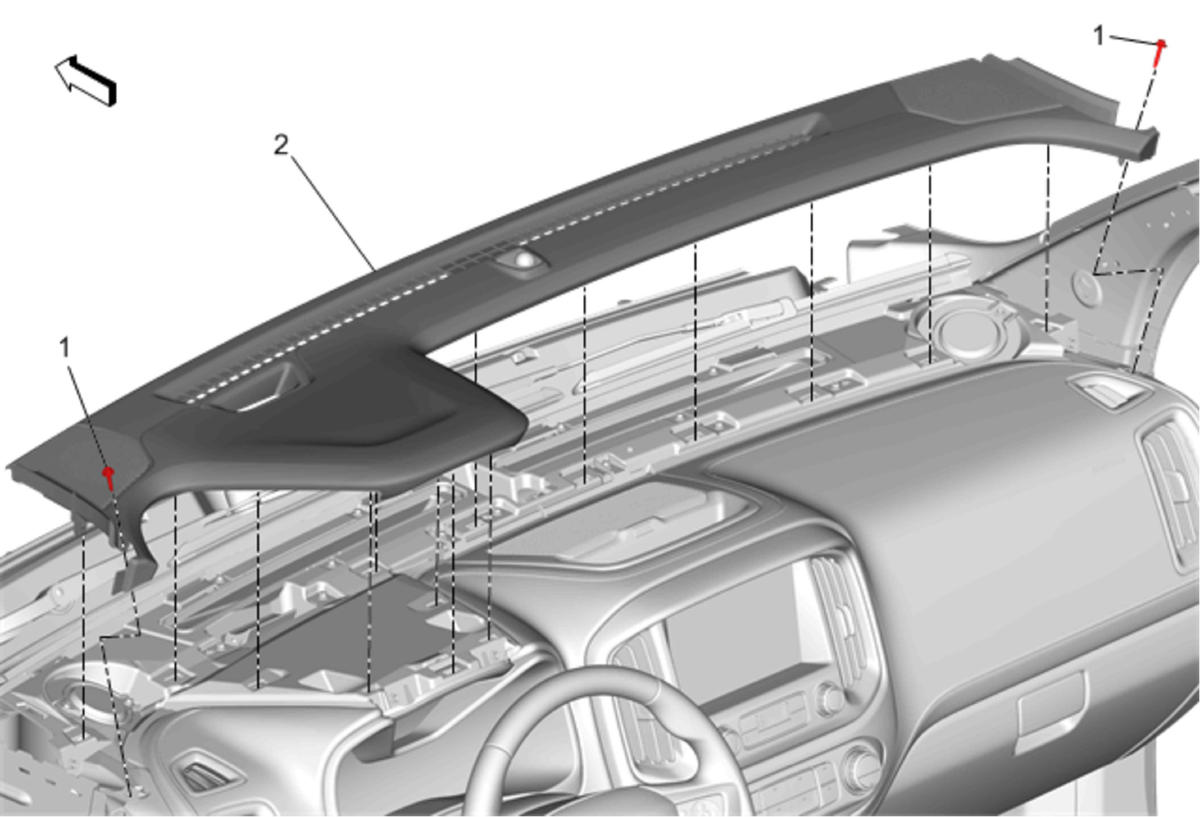

Fig 1: Instrument Panel Extension

GM3681597

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the Left and right windshield garnish molding. Refer to Windshield Garnish Molding Replacement - Left Side , and Windshield Garnish Molding Replacement - Right Side .

1

Instrument Panel Extension Bolt(Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Instrument Panel Extension

Procedure

Use a flat-bladed plastic trim tool to release the 16 retainers securing the instrument panel extension to the instrument panel assembly.
Disconnect the electrical connection.
When replacing the instrument panel extension, transfer all necessary components.
