Instrument Panel Cluster Trim Plate Replacement

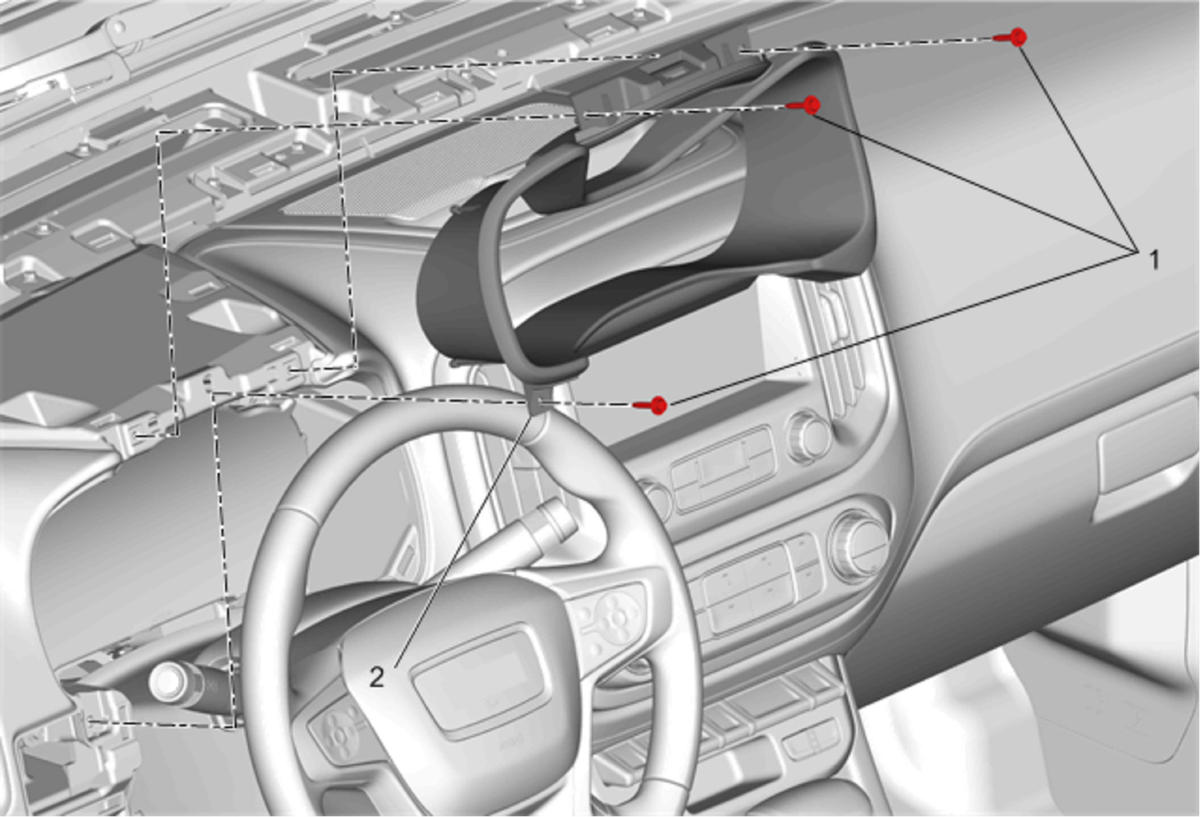

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement . Remove the instrument panel compartment toll card holder. Refer to Instrument Panel Compartment Toll Card Holder Replacement .
1	Instrument Panel Cluster Trim Plate Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Cluster Trim Plate Procedure Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim plate to the instrument panel assembly.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel extension. Refer to Instrument Panel Extension Replacement .
Remove the instrument panel compartment toll card holder. Refer to Instrument Panel Compartment Toll Card Holder Replacement .

Instrument Panel Cluster Trim Plate Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Panel Cluster Trim Plate
Procedure
Use a flat bladed plastic trim tool in order to release the retainer clips securing the trim plate to the instrument panel assembly.
