Instrument Panel Compartment Toll Card Holder Replacement
Instrument Panel Compartment Toll Card Holder Replacement

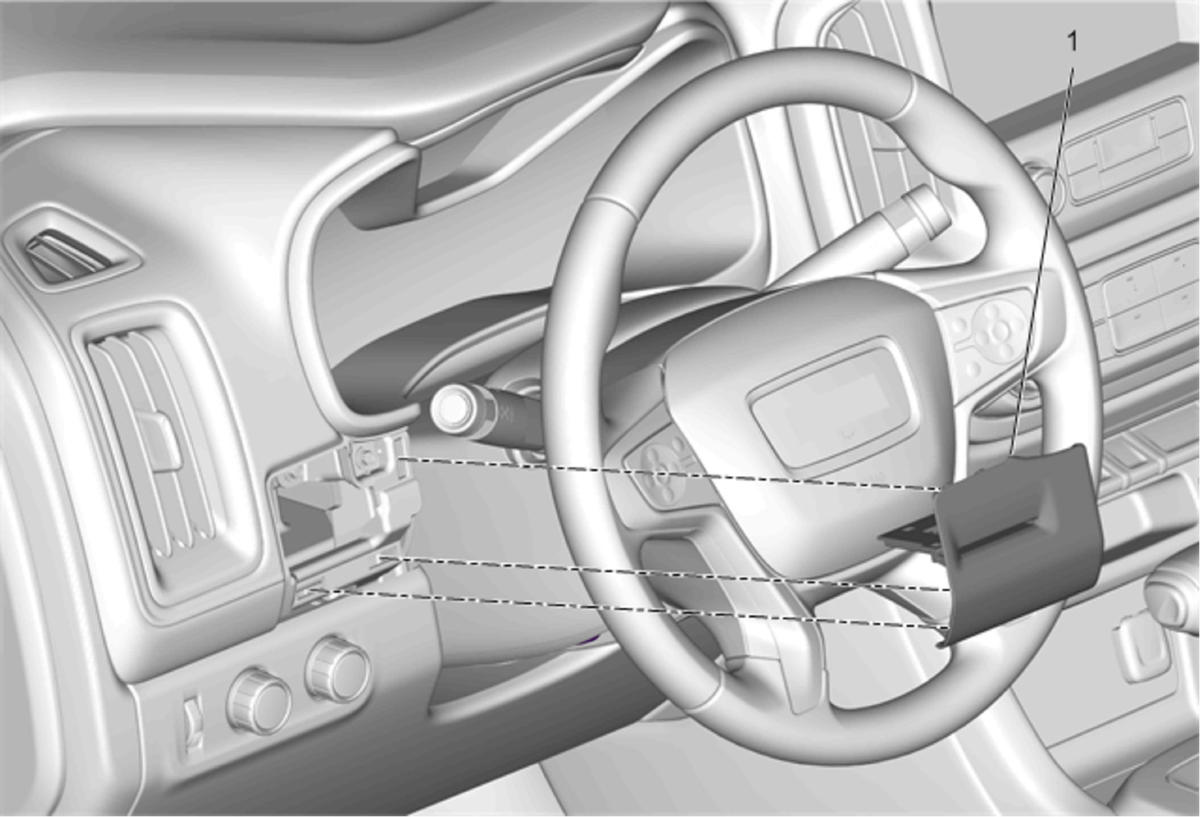

Fig 1: Instrument Panel Compartment Toll Card Holder
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Compartment Toll Card Holder
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the card holder from the instrument panel assembly.
