Front Seat Back Recliner Handle Replacement (Coupe)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

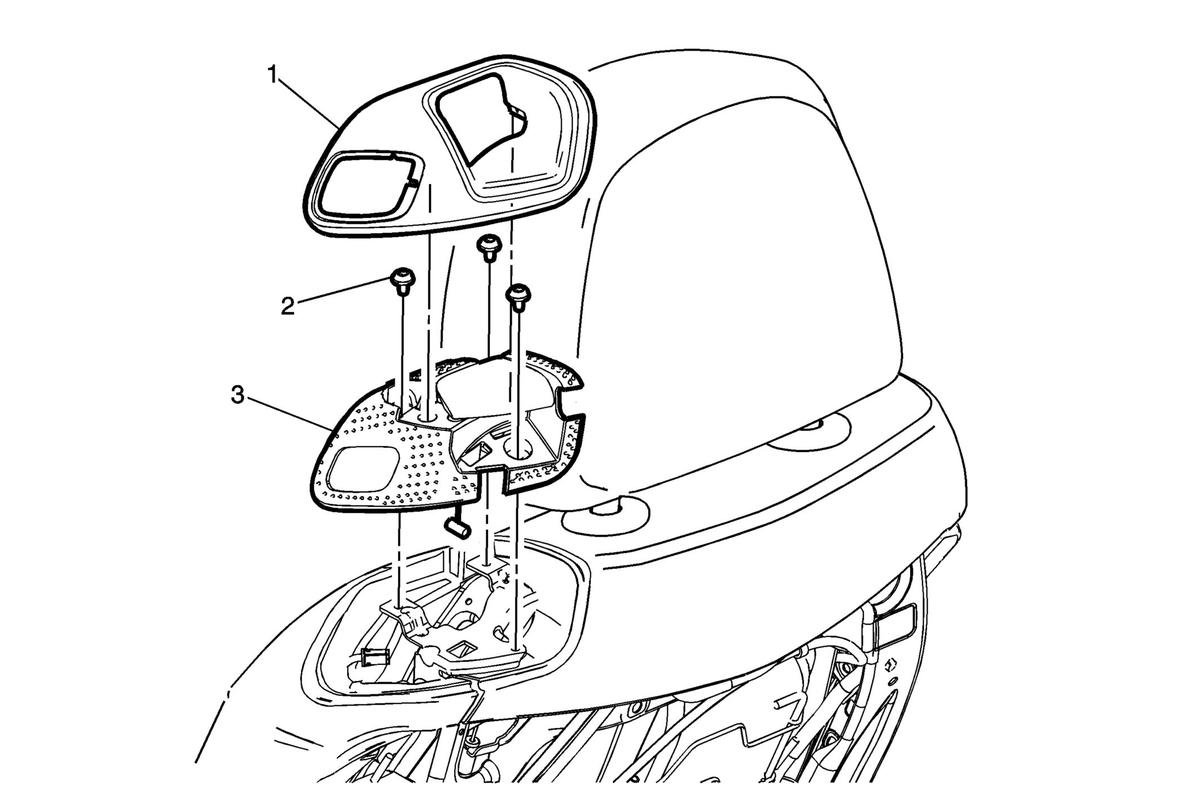

Fig 1: Front Seat Back Recliner Handle (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Remove the front seat back position switch. Refer to Front Seat Back Position Switch Replacement (Coupe) Remove the driver or passenger seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement (with AHE) Front Seat Back Cushion Finish Panel Replacement (without AHE) Front Seat Back Cushion Finish Panel Replacement (with W2E)
1	Front Seat Back Recliner Handle Bezel Procedure Lift up the release handle. Pull the handle bezel upward to disengage the handle bezel tabs from the recliner handle assembly.
2	Front Seat Back Recliner Handle Bezel (Qty: 3) CAUTION: Refer to Fastener Caution .
3	Front Seat Back Recliner Handle Procedure Disconnect the cushion back release latch cable. Disengage the recliner handle by pulling upward to remove it from the seat back frame.
