Front Seat Back Cushion Finish Panel Replacement (with AHE)

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

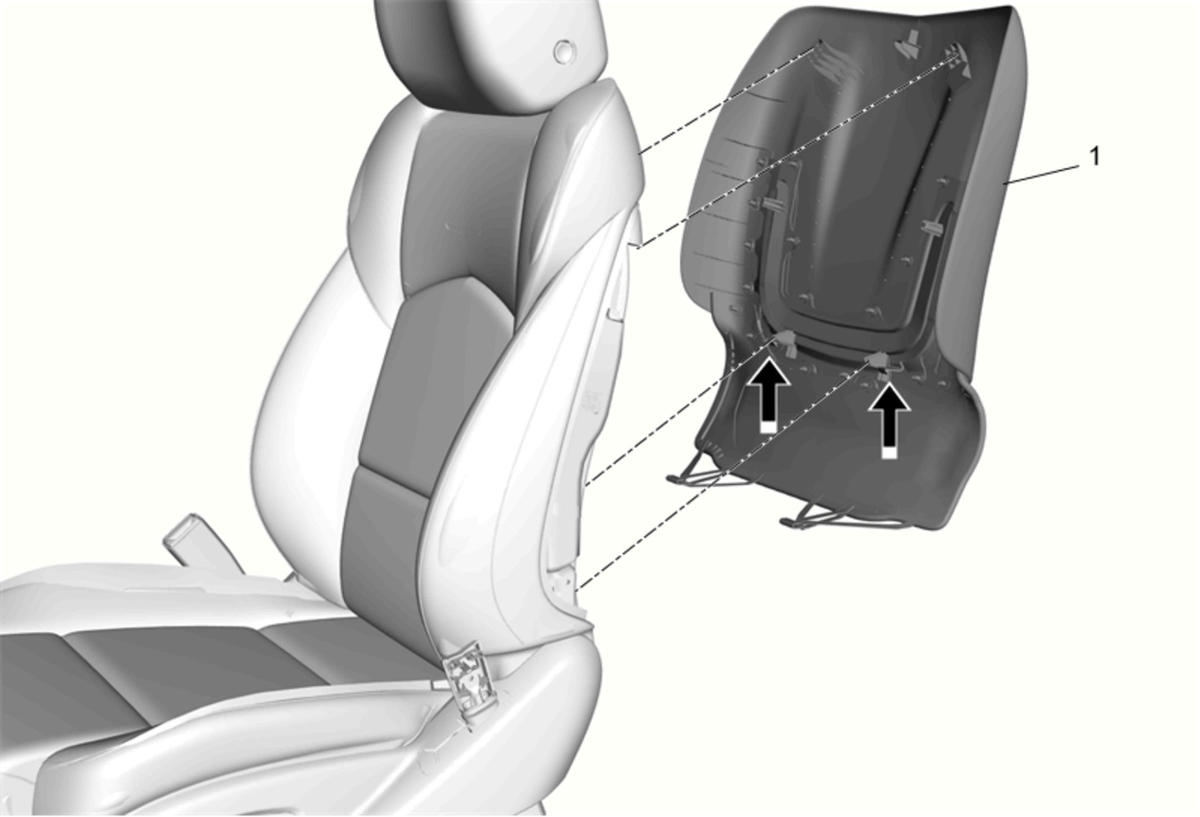

Fig 1: Front Seat Back Cushion Finish Panel (With AHE)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Back Cushion Finish Panel Procedure Detach the seat back cushion cover bottom bungee clips from the crossbar. Detach the lower (flexible) back panel hooks from the frame by reaching up inside the back panel from the bottom to locate the flat of the hooks. While pushing up on the flat of the hook with one hand push inward in the area of the hook with the other hand to release the hook from the frame. With the lower (flexible) hooks free, pull down on the back panel to disengage the upper (rigid) hooks. With the upper (rigid) and lower (flexible) hooks free, detach the side (flexible) hooks from the frame by pushing inward and towards the center of the seat, doing one side at a time.

Callout

Component Name

Front Seat Back Cushion Finish Panel

Procedure

Detach the seat back cushion cover bottom bungee clips from the crossbar.
Detach the lower (flexible) back panel hooks from the frame by reaching up inside the back panel from the bottom to locate the flat of the hooks. While pushing up on the flat of the hook with one hand push inward in the area of the hook with the other hand to release the hook from the frame.
With the lower (flexible) hooks free, pull down on the back panel to disengage the upper (rigid) hooks.
With the upper (rigid) and lower (flexible) hooks free, detach the side (flexible) hooks from the frame by pushing inward and towards the center of the seat, doing one side at a time.
