Front Seat Back Position Switch Replacement (Coupe)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

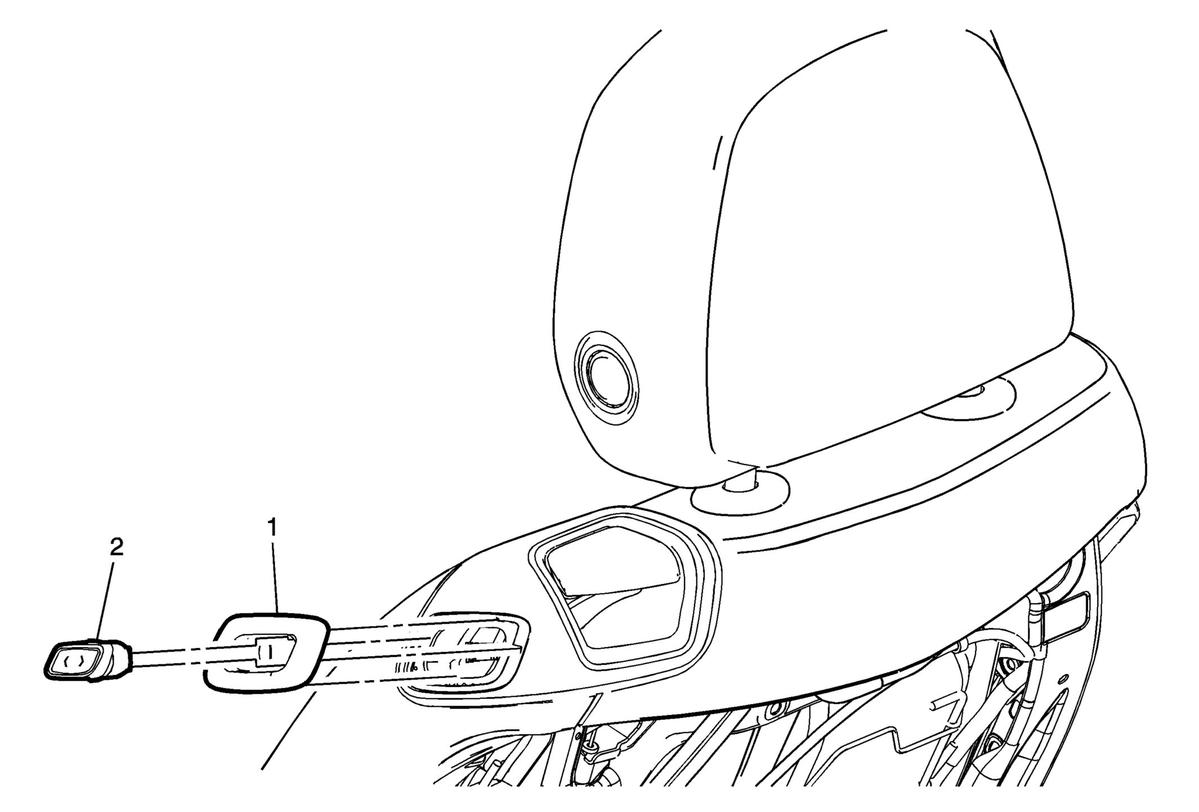

| Callout | Component Name |
|---|---|
| 1 | Front Seat Back Position Switch Bezel Procedure Use a plastic trim tool to release the bezel from the seat back frame and disconnect the electrical connector. |
| 2 | Front Seat Back Position Switch Procedure Use a flat-bladed tool to push inward on the position switch tabs to release it from the bezel. |
