Instrument Panel Knee Bolster Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

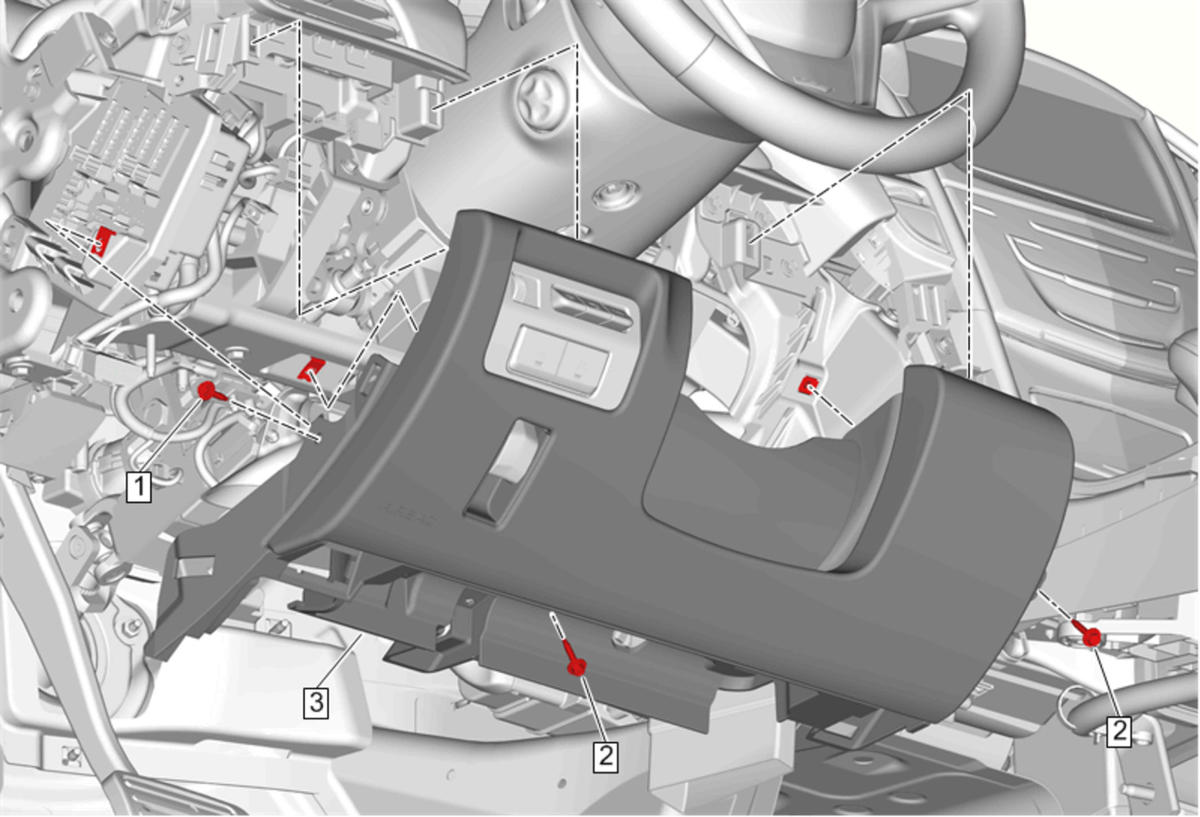

Fig 1: Instrument Panel Knee Bolster
GM4036213Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Disable the SIR system. Refer to SIR Disabling and Enabling
  2. Refer to Instrument Panel Lower Airbag Replacement - Driver Side
  3. Refer to Instrument Panel Outer Trim Cover Replacement
  4. Refer to Instrument Panel Lower Trim Panel Insulator Replacement (Left Side) Instrument Panel Lower Trim Panel Insulator Replacement (Right Side)
1 Instrument Panel Wiring Harness Fuse Block Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Instrument Panel Knee Bolster Bolt (Qty: 2)
Tighten
2.5 N.m (22 lb in)
3 Instrument Panel Knee Bolster

Procedure

  1. Use a flat bladed plastic trim tool.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
