Instrument Panel Lower Airbag Replacement - Driver Side

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

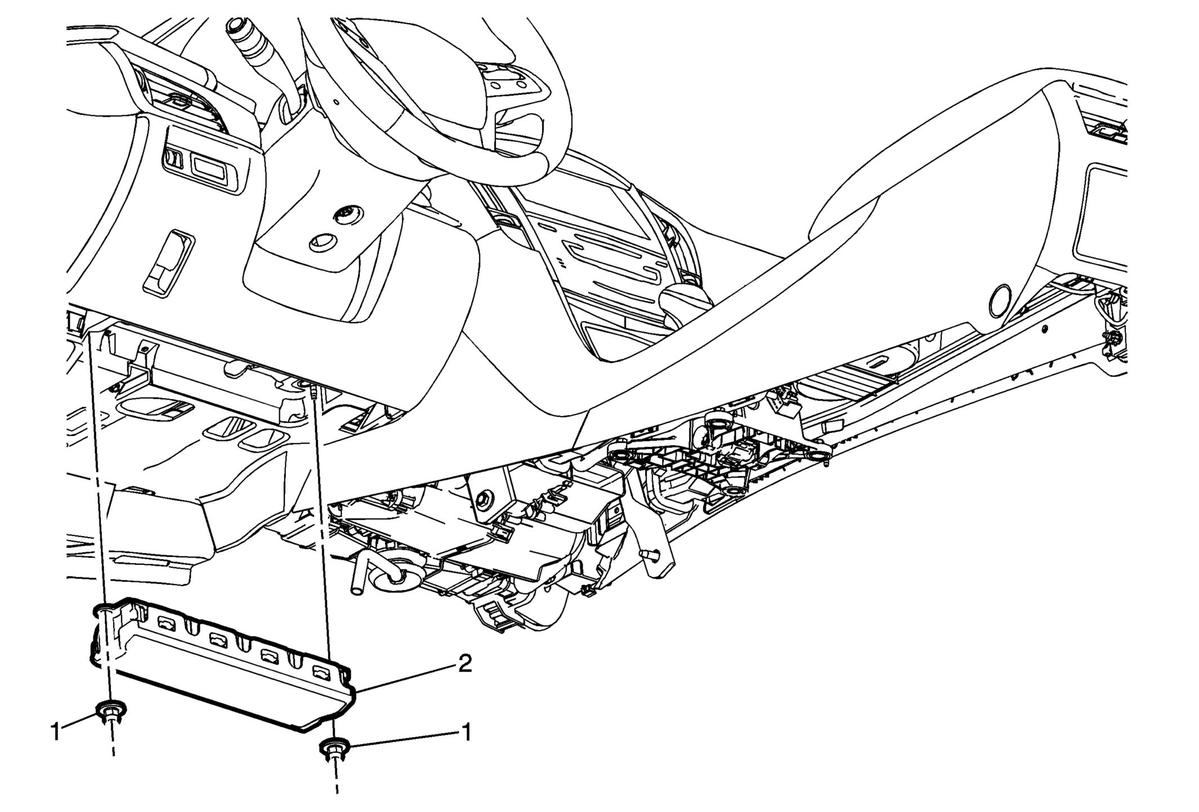

Fig 1: Instrument Panel Lower Airbag Module - Driver Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Inflator Module Handling and Storage Warning . WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .
1	Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Inflatable Restraint Instrument Panel Lower Module Assembly - Driver Side Procedure Disconnect the airbag electrical connector. Refer to Inflatable Restraint Module Handling and Scrapping . Enable the SIR system. Refer to SIR Disabling and Enabling .

Callout

Component Name

WARNING:

Refer to SIR Inflator Module Handling and Storage Warning .

WARNING:

Refer to SIR Warning .

Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling .

Inflatable Restraint Instrument Panel Lower Module Nut (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Inflatable Restraint Instrument Panel Lower Module Assembly - Driver Side

Procedure

Disconnect the airbag electrical connector.
Refer to Inflatable Restraint Module Handling and Scrapping .
Enable the SIR system. Refer to SIR Disabling and Enabling .
