Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

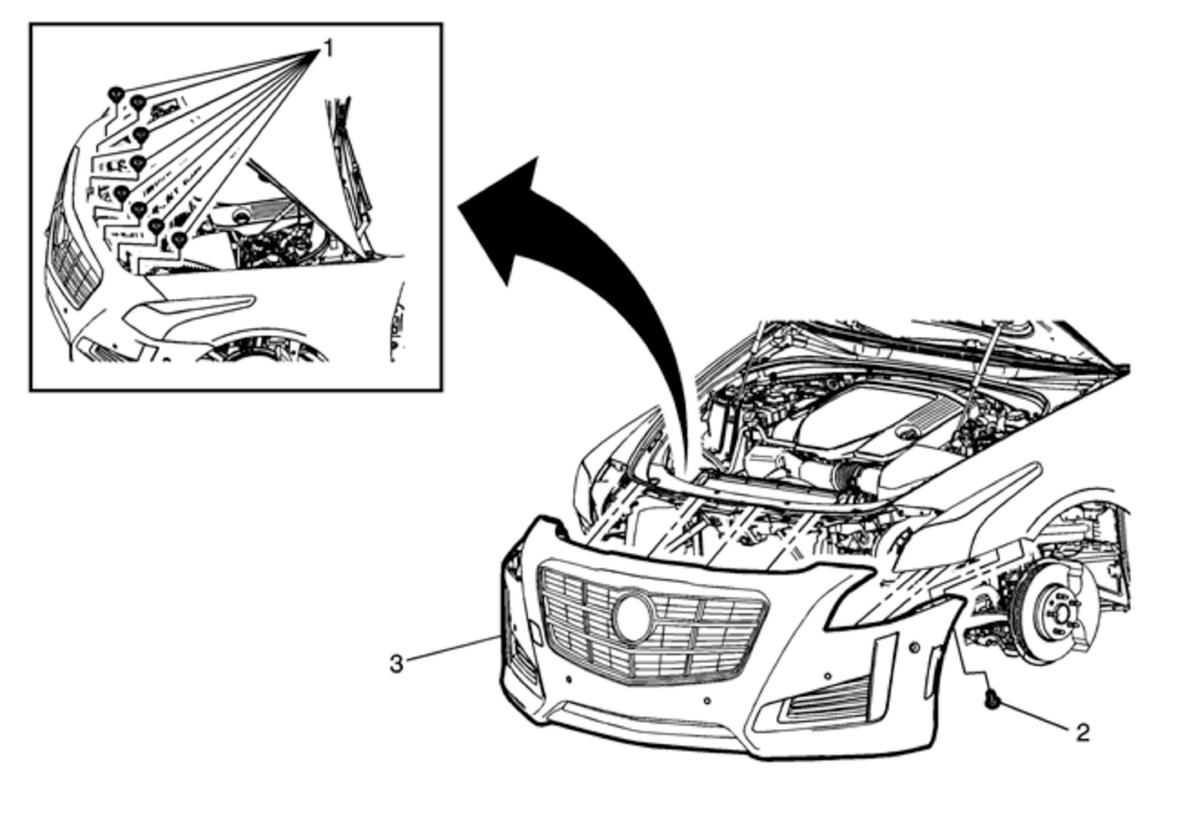

Fig 1: Front Bumper Fascia

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement (Sedan)Front Compartment Front Sight Shield Replacement (Coupe)Front Compartment Front Sight Shield Replacement (ATS-V) . Remove the front tire air deflector. Refer to Front Tire Front Air Deflector Replacement . Remove the front wheelhouse liners. Refer to Front Wheelhouse Liner Replacement (Non V-Series)Front Wheelhouse Liner Replacement (V-Series) . Remove the front air deflector. Refer to Front Air Deflector Replacement
1	Front Bumper Fascia Upper Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten 4 N.m (35 lb in)
2	Front Bumper Fascia Bolt (Qty: 2) Tighten 3 N.m (27 lb in)
3	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect any electrical connectors. Transfer components as necessary.
