Front Air Deflector Replacement
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.

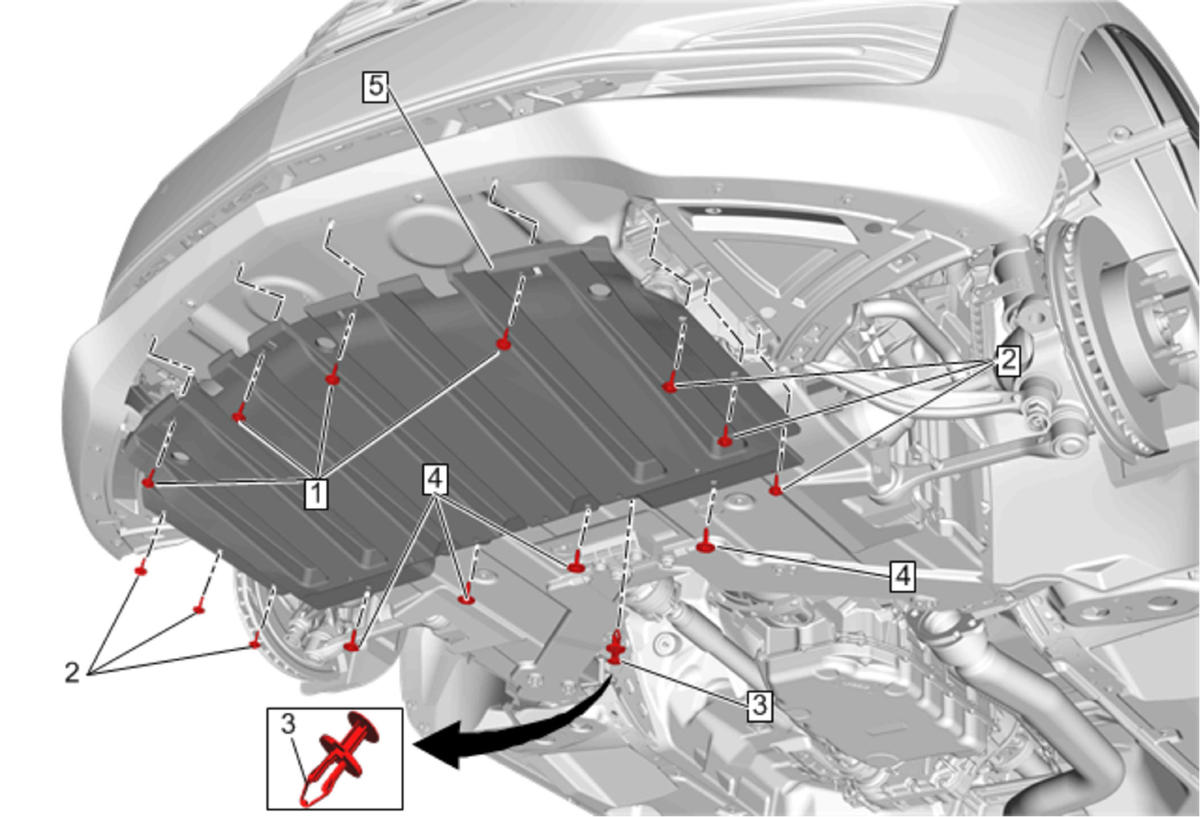

| Callout | Component Name |
|---|---|
| 1 | Front Air Deflector Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Air Deflector Screw (Qty: 6) |
| 3 | Front Air Deflector Push-In Retainer |
| 4 | Front Air Deflector Bolt (Qty: 4) |
| 5 | Front Air Deflector Procedure Slide the front air deflector rearward and out from the front fascia. |
