Front Compartment Front Sight Shield Replacement (Sedan)
WARNING: This page is about a different car, the 2017 Cadillac ATS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

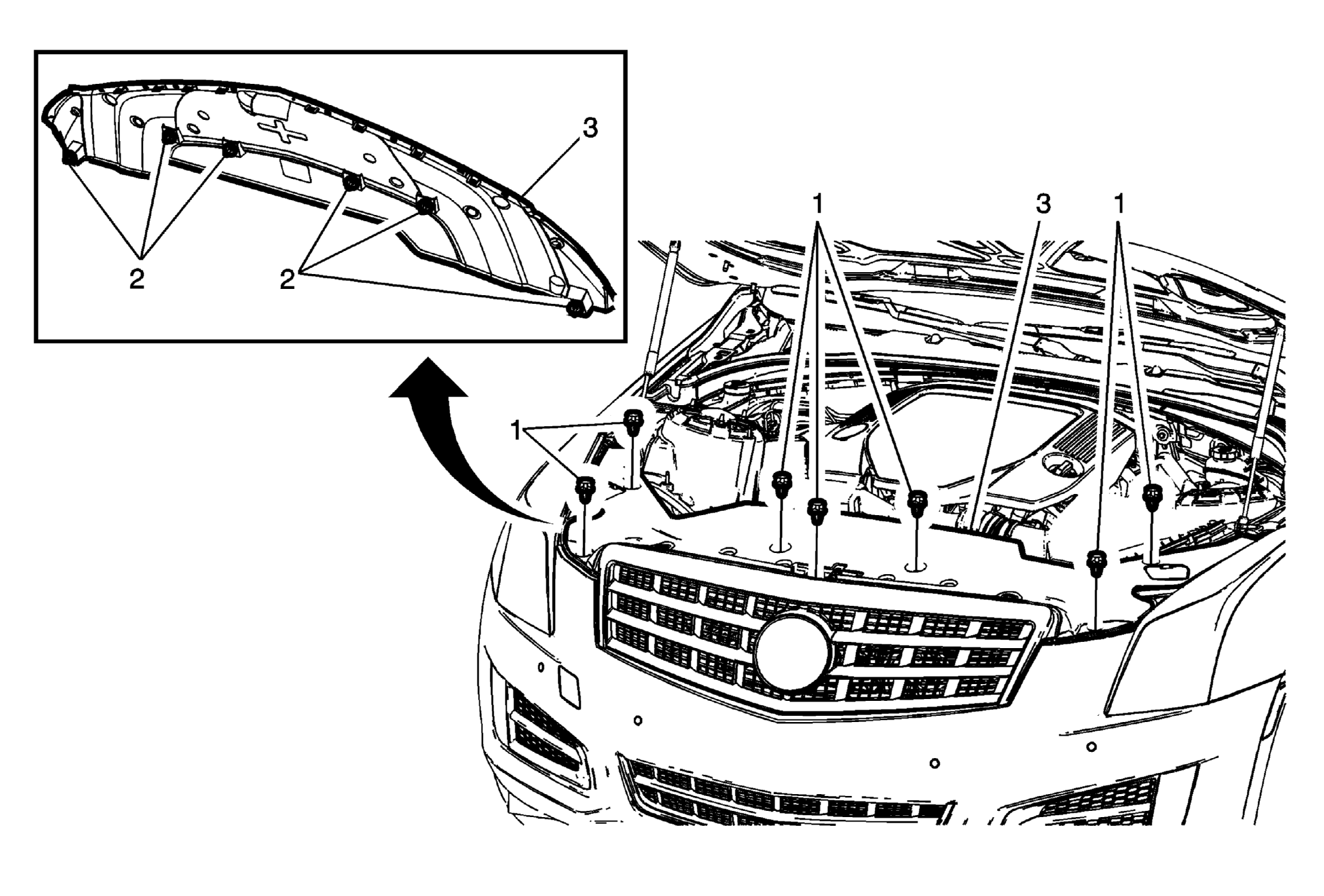

| Callout |
Component Name |
| 1 |
Front Compartment Front Sight Shield Push-In Retainer (Qty: 7) |
| 2 |
Front Compartment Front Sight Shield Retainer (Qty: 4)
Procedure
Using a suitable tool, disengage the 4 hidden retainers from the upper tie bar. |
| 3 |
Front Compartment Front Sight Shield |
